PTZ camera AHD 2Mpx CVI TVI Analog IR Setik

Mini Outdoor Speed Dome PTZ HD Camera (PAN, TILT and ZOOM) with 4 Technologies in 1 AHD / CVI / TVI / ANALOG with 1080P 2Megapixel resolution , image sensor   1 / 2.9 "CMOS and 3x of Optical Zoom (f = 2.8mm-8mm). IR LED illuminator up to 20 meters. Day / Night (ICR), Manageable via Coaxial control. IP66 Protection (Rain / Dust) The smallest in the world! PTZHYBIR3X2M

Reference: PTZHYBIR3X2M

Brand: Setik

EAN: 8058258766928


€267.18 -60%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!



Made by Setik Setik Outdoor PTZ Mini Dome Camera
4 Technologies in 1: AHD + CVI + TVI + ANALOGUE - 1080P FULL-HD - 3X Optical Zoom (2.8-8mm)
IR illuminator (20mt) - Management via coaxial - Day / Night (ICR)
The smallest in the world! - 12V DC power supply - 24 months warranty

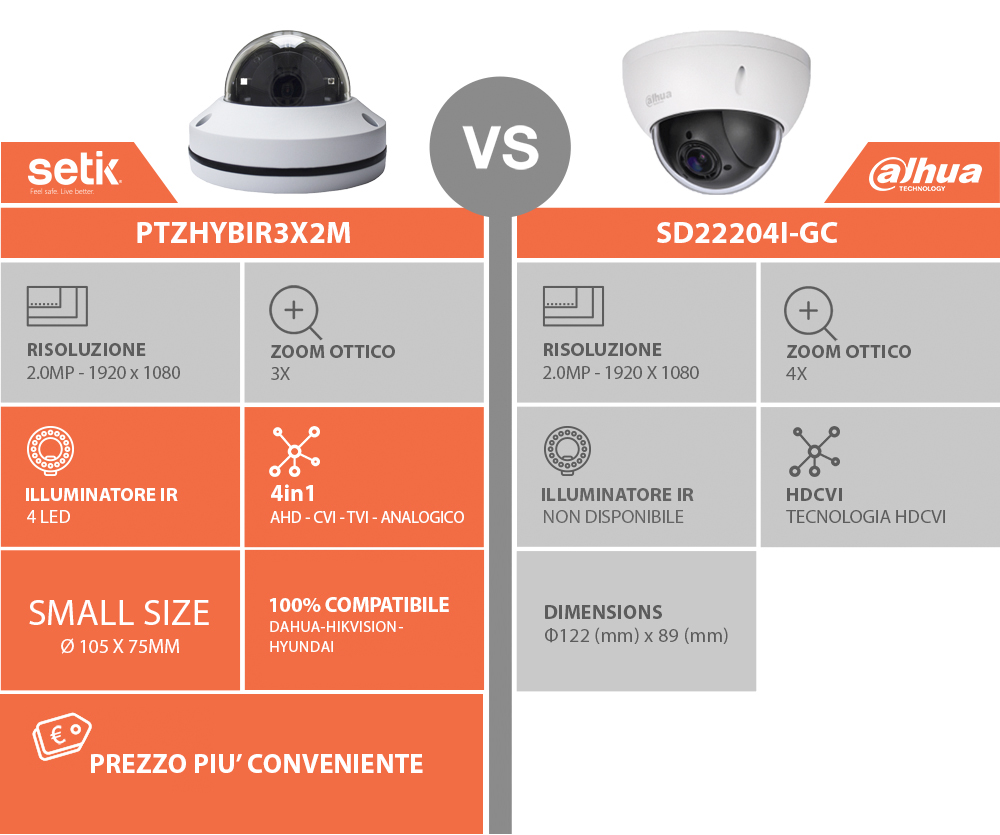

Comparazione tra PTZHYBIR3X2M e SD22204I-GC

Product details

  • Mini Dome PTZ Hybrid 4in1 - Setik - The smallest in the world!
  • PTZ: Pan movement (Horizontal), Tilt (Vertical) and Zoom
  • 4 Technologies in 1: AHD + HDCVI + HDTVI + ANALOGUE
  • Switchable technologies via button on cable or from OSD menu
  • No need to purchase UTC controller
  • Resolution 2 Megapixel 1080P
  • Sony Low Illumination 2.1MP image sensor 2.1MP
  • 3x Optical Zoom (f = 2.8 mm-8mm )
  • IR illuminator with 20 meters range
  • Management through coaxial
  • Pressing the joystick for 5 sec. you can access some fast functions: Pan / Tilt - Zoom - OSD Menu
  • OSD Multilingual menu (also in Italian!)
  • Day / Night (ICR)
  • IP66 protection (rain / dust) - Outdoor camera
  • 12V DC power supply not included
  • 24 month Italian warranty

Data sheet

Image Sensor 1 / 2.9 "CMOS
pixels 1920 (H) x 1080 (V) 2.1MP
Video format 1080 / 25fps
Zoom 3x Optical Zoom
Focal Length 2.8-8mm
IR Distance 20M
Day / Night Auto / Day / Night (ICR)
Focus Auto / Manual
DNR low / middle / high / off
Video Output CVBS / CVI / TVI / AHD 4 in 1 output
Horizontal Range 350 ° Horizontal rotation
Horizontal Speed 80 ° / sec
Vertical Range 0-90 °
Communication COAX
OSD Multi-language support
Rated power DC 12V / Current: 0.8A (MAX)
Operating Temperature -10 ° C + 50 ° C
Protection Grade IP66
Appearance White, aluminum alloy (ADC)
Dimension ø 105 x 75mm
Weight 350g

More details

If you are looking for a PTZ surveillance camera, with up to 4 technologies on board, which can also be installed outdoors and do not take up too much space, the new PTZHYBIR3X2Mis the right camera for you!Look at the size ... it's on the palm of your hand!


 Risoluzione 2Megapixel

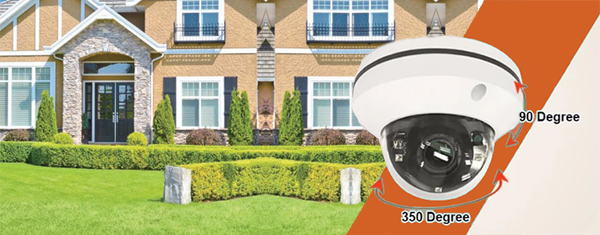

 350 ° Horizontal Rotation!
Rotazione 350° PTZ PTZHYBIR3X2M PTZHYBIR3X2M OSD menu also in Italian!This camera features joystick button on cable. Quick Functions :By keeping the joystick button pressed for 5 seconds, it is possible to access some camera functions:Pan & Tilt movement (Horizontal / Vertical) -Zoom -OSD menu

Multi-Technology :This camera being a 4in1, it can switch technology from ahd to cvi, hdtvi or analog in the following ways: - Joystick pressure: 5 seconds- Via OSD MenuIlluminatore IR PTZHYBIR3X2M

Tecnologia Quadribrida This camera is a QUADRIBRID (4 integrated technologies)
These cameras are at the same time, Analogical , Ahd , Hdcvi and Hdtvi .

Risoluzione 2.0 Megapixel 1920x1080

2Megapixel resolution (1920x1080) 1080P

Telecamera con movimento pan tilt e zoom

This camera is a Speed Dome HD Camera, with PAN, TILT and ZOOM movement

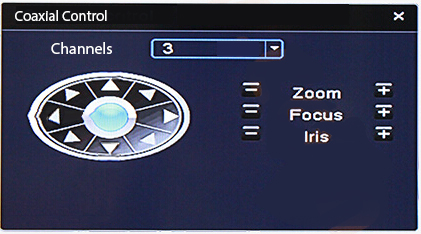

PTZ manageable via Coaxial Control

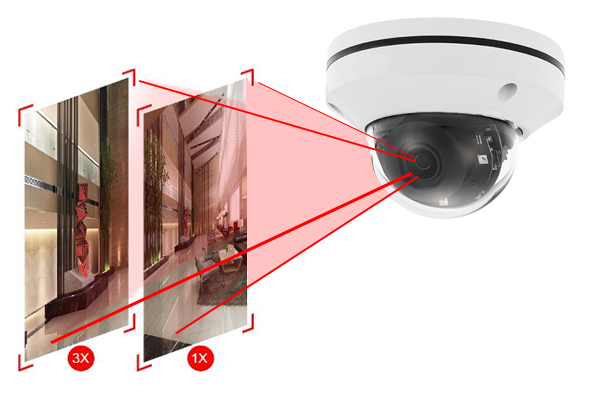

Zoom 3x - Ottica varifocale

This camera is equipped with 3x Optical Zoom (f = 2.8mm-8mm)

OSD Menù

OSD (On Screen Display) menu: allows you to define masked areas, image correction, ATR, Day / Night sensitivity, shutter speed, white balance, light compensation and much more.


Joystick on cable:

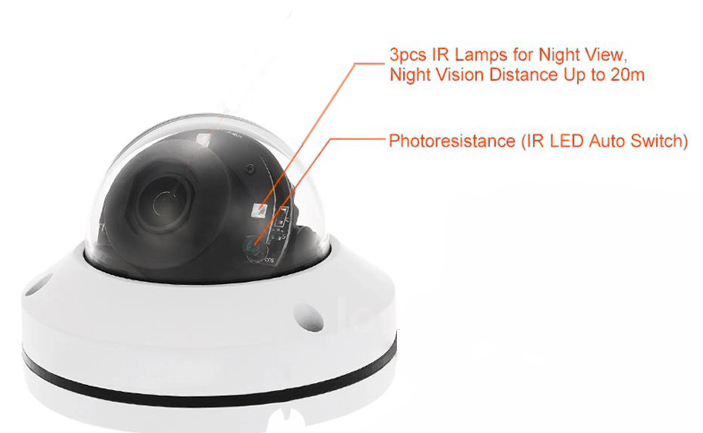

Illuminatore IR da 120mt

IR illuminator with maximum range up to 20mt.

Funzione Day/Night It allows to adapt the lens to the Night / Day vision and the consequent management of the IR illuminator in an automatic way

Immagine esempio visione notturna

ICR The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies
IP66 WaterProof IP66 protection (Rain / Dust). Camera can also be installed outdoors
Alimentazione 12V DC 12V DC connector not included
Connettore Alimentazione 12V DC
24 mesi di garanzia This product is covered by a 24 month warranty.
