Video surveillance camera AHD External 4in1 TVI CVI 5MP 3.6mm Bullet Analog IR S

Video surveillance camera AHD External 4in1 TVI CVI 5MP 3.6mm Bullet Analog IR S
IN PROMOTION -66%

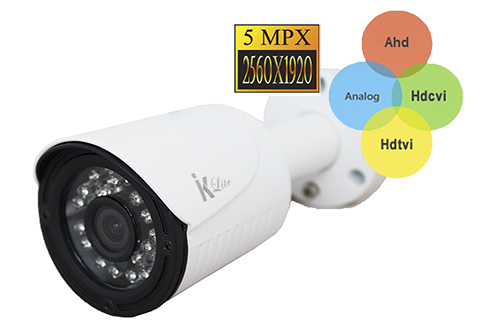

BLHYB5M36IRW Outdoor Bullet camera for video surveillance Quadribrida "AHD - HDTVI - HDCVI - ANALOG ", with 5MP resolution , 1/3 "sensor and 3.6mm fixed lens . IR illuminator 24 LED 20 MT, Day / Night (ICR), OSD menu .

Reference: BLHYB5M36IRW

Brand: Setik

EAN: 8057457618397

€30.28

€89.06 -66%
taxes included
Tax included
 Available
 Available


4IN1 BULLET CAMERA "AHD / TVI / CVI / ANALOG" - 5MEGAPIXEL 3.6MM - SETIK

Made by Setik Outdoor Hybrid Bullet Camera - Setik
4 Technologies in 1 "AHD / TVI / CVI / ANALOG" - Resolution up to 5Megapixel
3.6mm fixed lens - Day / Night (ICR), AGC - IR illuminator with 24 LEDs and 20M range
OSD menu - 12V DC power supply not included - 24 Months Warranty

Product details

Telecamera Bullet 4in1 5MP 3.6mm

  • Outdoor Hybrid Bullet Camera - Setik
  • 4 Technologies in 1: Ahd / Tvi / Cvi / Analog
  • Resolution up to 5 Megapixel! (CVI 4MP)
  • 1/3 "image sensor
  • 3.6mm fixed lens
  • Switchable technologies via OSD Menu
  • High Speed, remote real-time transmissions
  • Day / Night (ICR), AGC
  • Quality IR illuminator with 18 SMD Leds for better night vision (30mt)
  • IP66 protection (rain / dust)
  • Suitable for indoor / outdoor environments
  • 12V DC power supply (not included)
  • 24 months warranty

Data sheet

Model BLHYB5M36IRW
Room
Image Sensor 1/3 "sensor
Signal System PAL / NTSC
Image resolution 1280 * 720/1280 * 960/1920 * 1080

Effective Pixels

5MP
Video Out

1.0Vp-p Composite Signal (75ohm)

Minimum illuminator

0Lux (Infrared Light Open)

Gama adjust 0.45
Electric Shutter PAL: 1 / 50s-1 / 100000s
S / N Ratio 58dB (min) (AGC closed)
lens 3.6mm
DNR Yes
AWB

CAR

AGC CAR
BLC ON / OFF
Mirror Yes
Motion detection 4 areas optional
Privacy Zone

8 optional area

D-zoom

5 level

Day / Night

Auto, ext

OSD

yes

Power input

DC12V + 1V

Power Dissipation

85mA

Operation Temperature

temperatures -10 + 75, Humidity less than 85% RH

Waterproof level

ip65 / Ip66

Video output

1.0Vp + p.75

Further details

Tecnologia Quadribrida This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time, Ahd / Hdtvi / Hdcvi / Analog .

Risoluzione 5 Megapixel

This camera has a resolution of 5 Megapixels! (CVI 4MP)

Risoluzione 5Megapixel!
Ottica fissa 3.6mm

This camera features a fixed 3.6mm lens






This camera is equipped with 24 IR LEDs and a maximum illumination range of 20 meters!

Menù OSD

This camera is equipped with OSD Menu from which to switch technologies (AHD / TVI / CVI / ANALOG).
Only for HDCVI it is necessary to lower the resolution of the camera to 4MP.







Funzione Day/Night

It allows to adapt the lens to the night / day vision and the consequent management of the IR illuminator automatically.
Immagine esempio funzione Day/Night

IR CUT FILTER

The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight viewing conditions, filtering the typical infrared frequencies. This improves the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio funzione IR CUT FILTER

AGC Automatic Gain Control

AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.
AGC Automatic Gain Control

IP66 Waterproof. Protezione da getti d'acqua e polvere

IP66: Guarantees the impossibility for dust to enter the camera and protection from jets of water of any kind (rain)

Alimentatore 12V DC

12V DC power supply not included

Connettore Alimentatore 12V DC

24 mesi di garanzia This product is covered by a 24 month warranty.




Download

Download the English Brochure (Available soon)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
