Outdoor camera Version S5 HD CVI 2MP 4in1 3.6mm IR Dahua

Outdoor camera Version S5 HD CVI 2MP 4in1 3.6mm IR Dahua
The following product is also part of these COMPLETE CCTV KITS:

KIT-DH-BU-CX-16-30

909,02 €

you save 70%
-57%

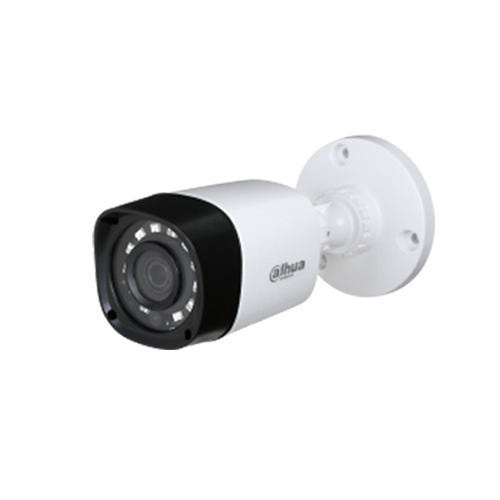

Dahua HAC-HFW1200R-S5 outdoor surveillance HD CVI camera, S5 bullet VERSION with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 1080P FULL-HD 2MP , 3.6mm lens and 1 / 2.7 "CMOS image sensor . 12 LED 20M Smart IR Illuminator, IP67 Protection, Day / Night (ICR), Multilingual OSD Menu, Plastic

Reference: HAC-HFW1200R-S5

Brand: Dahua

EAN: 6939554989919

€29.38

€68.32 -57%
taxes included
Tax included
 Available
 Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


4IN1 HDCVI / HDTVI / AHD / ANALOG FULL HD BULLET CAMERA - S5 VERSION - DAHUA

Prodotto Dahua HD CVI 4in1 Outdoor Camera - S5 Version -
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG - 1080P 2MP FULL HD resolution
IR 12 LED 20M Illuminator - Day / Night (ICR), BLC / HLC / DWDR / AGC
IP67 protection (Dust / immersion) - 12V DC power supply (not included) - 24 month warranty

Product details

Telecamera Bullet con 4 tecnologie in 1 Dahua
  • HD CVI 4in1 outdoor camera - Dahua
  • 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG
  • Switchable technologies via OSD Menu or UTC Controller (not included)
  • Resolution: 2Megapixel 2 MP FULL HD 1080P
  • Fixed Lens 3.6mm
  • 1 / 2.7 "CMOS image sensor
  • Day / Night (ICR), BLC, HLC, AGC, DWDR
  • Smart IR 12 LED Illuminator (20M)
  • OSD Multilingual menu
  • Video Output: 1 Channel BNC High Definition / CVBS video output (interchangeable)
  • 12V DC power supply (not included)
  • IP67 protection (Dust / Immersion) - Suitable for indoor / outdoor environments
  • Material: Plastic
  • Dimension: 154.3mm × 69.8mm × 69.8mm (6.07 "× 2.75" × 2.75 ")
  • 24 months warranty

Data sheet

Model HAC-HFW1200R-S5
Room
Image Sensor 1 / 2.7 "CMOS
Effective Pixel 1920 (H) × 1080 (V), 2MP
Scanning System Progressive
Electronic Shutter Speed

PAL: 1 / 25s – 1 / 100000s
NTSC: 1 / 30s – 1 / 100000s

Min. Illumination 0.02Lux / F1.9, 30IRE, 0Lux IR on
S / N Ratio > 65dB
IR Distance Up to 20m (66feet)
IR On / Off control Auto / Manual
IR LEDs 12
Pan / Tilt / Rotation Range Pan: 0 ° –360 °
Tilt: 0 ° –90 °
Rotation: 0 ° –360 °
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 3.6mm
Max Aperture F1.9
Field Of View 100 ° x 84 ° x 45 ° (diagonal x horizontal x vertical)
Iris Type Fixed Iris
Close focus distance 0.8 m (2.6 ft)
Video
Frame Rate CVI: 1080P @ 25 / 30fps; 720P @ 25 / 30fps; 720P @ 50 / 60fps; AHD: 1080P @ 25 / 30fps; 720P @ 25 / 30fps; TVI: 1080P @ 25 / 30fps; 720P @ 25 / 30fps; 720P @ 50 / 60fps; CVBS: 960H
Resolution 1080P (1920 × 1080); 720P (1280 × 720); 960H (960 × 576/960 × 480)
Day / Night Auto switch by ICR
BLC BLC / HLC / DWDR
WDR DWDR
White Balance Car; manual
Gain Control Car; manual
Noise Reduction 2D NR
Smart IR Yes
Electronic Defog Yes
Mirror Off / On
Privacy Masking Off / On (8 area, rectangle)
Certifications
Certifications

CE (EN55032: 2015, EN 61000-3-2: 2014, EN 61000- 3-3: 2013, EN55024: 2010 + A1: 2015, EN 55035: 2017, EN50130-4: 2011 + A1: 2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No.60950-1)

Port
Video Output Video output choices of CVI / TVI / AHD / CVBS by one BNC port
Power
Power Supply 12V ± 30% DC
Power Consumption Max 3.1W (12V DC, IR on)
Environmental
Operating Consumption

-40 ° C to + 60 ° C (-40 ° F to 140 ° F); <95% (noncondensation)

Storage condition -40 ° C to + 60 ° C (-40 ° F to 140 ° F); <95% (noncondensation)
Ingress Protection IP67
Structure
Casing Plastic throughout the whole casing
Dimensions 154.3 mm × 69.8 mm × 69.8 mm (6.07 "× 2.75" × 2.75 ")
Net Weight 0.15 Kg (0.33 lb)
Gross Weight 0.22 Kg (0.49 lb)

Further details

4 tecnologie in 1 This camera is a QUADRIBRID (4 Integrated Technologies)
These cameras are at the same time Analogue , Ahd , HDCVI and HDVI .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI
Risoluzione 2MP 1080P FULL-HD

2MP resolution, means 5 times the resolution of a common D1 camera:
1 / 2.7 "CMOS image sensor

Ottica fissa 2.8mm This camera is equipped with a fixed 3.6mm lens

Menu OSDController UTC

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ...

The OSD menu is multi-language

Multi-Technology:

The camera can switch from HDCVI to HDTVI, AHD or Analog via OSD Menu or UTC controller (not included).

Controller Dahua UTC Controller

Illuminatore IR fino a 30mt

Infrared IR 12 LED illuminator with a range of about 20 meters



This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the framed object.
Tecnologia Smart IR

Funzione Day/Night

It allows to adapt the lens to the night / day vision and the consequent management of the IR illuminator automatically.
Esempio Funzione Day/Night

Funzione IR CUT FILTER

THE IR CUT FILTER IS A MECHANICAL FILTER THAT ALLOWS A CORRECT DISPLAY OF IMAGES IN DAYLIGHT VISION CONDITIONS, FILTERING THE TYPICAL INFRARED FREQUENCIES, THUS IMPROVING THE IMAGE QUALITY. IN NIGHT CONDITIONS THE FILTER IS REMOVED AS IT IS NECESSARY TO CAPTURE THE TYPICAL IR FREQUENCIES.
Esempio Funzione IR Cut Filter

AGC Automatic Gain Control

AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Esempio funzione AGC Automatic Gain Control

Funzione BLC compensazione luce

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

Esempio Funzione BLC con vantaggi
Funzione DWDR

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

Alimentazione 12V DC This camera needs 12V DC power supply for operation.
Power supply NOT included!
Connettore Alimentatore 12V DC
Materiale con cui è stato creato il dispositivo This camera features aluminum body
24 mesi di garanzia

This product is covered by a 24 month warranty.

Download

Download the English brochure
Schema con le dimensioni della telecamera HAC-HFW1200R
