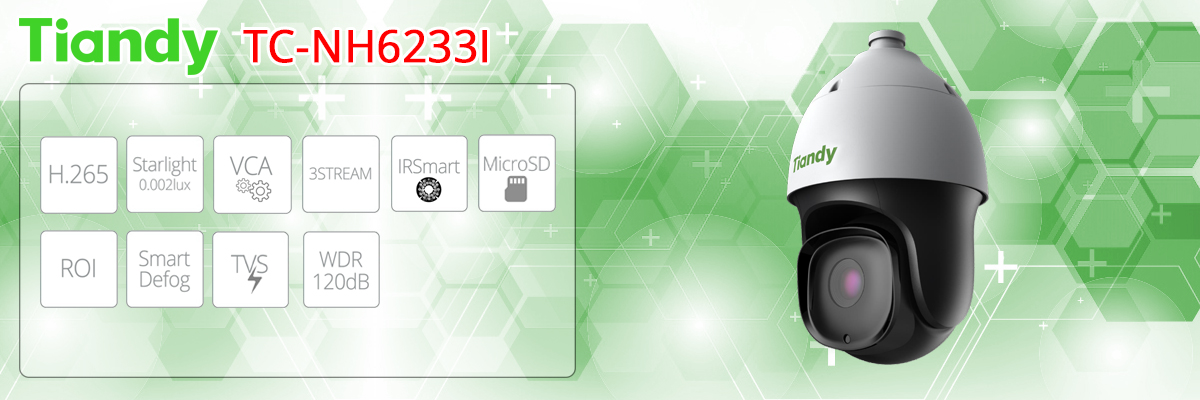

Tiandy PTZ IP video camera (Pan / Tilt / Zoom) for outdoor use with 2Megapixel 1080P @ 25fps resolution, 4.6-152mm optics with 33x zoom and 1 / 2.8 "CMOS sensor with Starlight technology . Triple Stream, H.265 / H Video Compression. 264, WDR 120dB , Smart Defog, ROI, IR Illuminator (200mt), Video Analysis, Audio, Alarm and MicroSD Slot TC-NH6233I

Reference: TC-NH6233I

Brand: Tiandy

EAN: 8058258764955


€2,190.00 -50%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity


Scrivici dove e ti sconteremo la differenza fino a fine mese!



Prodotto Tiandy Outdoor / indoor PTZ (Pan / Tilt / Zoom) Dome video surveillance camera with 2MP 1080P resolution, 4.6-152mm varifocal lens ( 33x optical zoom ) and 1 / 2.8 "image sensor Sony Progressive Scan CMOS with Starlight technology . Triple stream, Video Analysis , MicroSD slot and IR illuminator with 10 LEDs Alarm, Audio Protected from overload / lightning TC-NH6233I

Product details

Learn more about one of the Chinese BRAND LEADER in the world of IP security!

Read the article!

- Outdoor / indoor PTZ camera
- Resolution 2Megapixel 1080P (1920x1080)
- 4.6-152mm Varifocal Optic ( 33x Optical Zoom ), Viewing Angle: 62.1 ° / (w) ~ 2.18 ° (t)
- Sony 2.8 Progressive Scan CMOS image sensor with Starlight technology
- Starlight technology: Color vision even at night
- Video Compression H.265 / H.264
- Triple Stream
- Smart IR illuminator with 10leds ( 180m ~ 200m )
- Video Analysis: Line Crossing / Perimeter / Loitering / Crowd / Parking Survey / Lost & Abandoned Objects / Face Detection
- Day / Night (Dual-ICR), WDR (120dB), 3D DNR, HLC, AWB, AGC, BLC
- NIR (Near-IR)
- Smart Defog
- Onvif compatible
- Slot for MicroSD Card (Max 128GB)
- IP66 protection (rain / dust)
- Protection against overloads / lightning
- Languages: English, Spanish, Korean, Italian, Turkish, Thai, Russian, Traditional Chinese
- Certifications: CE, FCC
- Dimensions: 222mmx222mmx372mm

Data sheet

Image Sensor 1 / 2.8 "Sony Exmor CMOS
Min. Illumination Color: 0.002Lux @ (F1.6,50 IRE, ICR OFF) / Black & White: 0.001Lux @ ?F1.6,50 IRE ? ICR ON? 0 Lux with IR
Lens 4.6-152mm, Angle of view: 62.1 ° / (w) ~ 2.18 ° (t)
Wide Dynamic Range 120 dB
Smart Defog Yes
Zoom Optical Zoom: 33x
Digital Zoom: 16x
Pan Range 360 ° Endless
Pan Speed Pan Manual Speed: 0.1 ° -400 ° / s
Pan Preset Speed: 400 ° / s
Tilt Range -16 ° -90 ° (Auto Flip)
Tilt Speed Tilt Manual Speed: 0.1 ° -120 ° / s

Tilt Preset Speed: 180 ° / s

Number of Preset 500
Scan 8

8, up to 32 Presets for Cruise

Pattern 8, Each One With 600s Memory or 300 Orders
IR Distance 180m ~ 200m
IR Leds 10pcs
Max Image Resolution 1920 × 1080

Main Stream: 1920 × 1080 @ 25 / 30fps; 1280 × 960 @ 25 / 30fps; 1280 × 720 @ 25 / 30fps; 1280 × 720 @ 50 / 60fps 704 × 576 @ 25 / 30fps; 704 × 480 @ 50 / 60fps

Sub Streams: 704 × 576 @ 25fps / 704 × 480 @ 30fps 352 × 288 @ 25fps / 352 × 240 @ 30fps 176 × 144 @ 25fps / 176 × 120 @ 30fps

Third Stream: 352 × 288 @ 25fps / 352 × 240 @ 30fps

Image Compression H.265 / H.264 High Profile / MJPEG ROI Encoding 7 Areas for Both Main and Sub Stream System Compatibility ONVIF (Profile S), SDK Audio Input 1-ch Mic in (Line in Interface) Line Input 2-2.4V [pp]; Output Impedance 1K?, ± 10% Audio Output 1-ch, Line level, Impendance: 600? Alarm Input 1-ch Alarm Ouput 1-ch On-board Storage MicroSD Card Slot, up to 128GB Video Analytics

Tripwire, Perimeter, Loitering / Crowd / Parking Detection, Missing / Foreign Object, Face Detection

Intelligent Alarm Harsh Voice Alarm, Motion Ddetection, Mask Alarm, Port Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection, unusual image, scene changing, mic offline Operating Conditions

-40 ° C-70 ° C, 0 ? 95% RHG

Power Supply AC24V 3A Power Consumption

18.6W (IR OFF) / 32.36W (IR ON)

Ingress Protection IP66 Dimensions


More details

H265 Video Compressione


This camera supports video compression in H.264 and also in the new H.265 standard

Tecnologia Starlight

The integration of Starlight technology is the basis of a wide range of Tiandy products that immediately believed in its advantages. Starlight is not simple night vision, the integration of Tiandy Starlight solutions is an expression of technology and research.


Starlight for Tiandy is one of the most important components of its product range, but what are the advantages of integrating Starlight technology into video surveillance?

? Night vision beyond the typical IR area, without being bound by their beam
? No reflection due to IR for near objects or tampering (blinding, etc.)
? Color vision that allows better recognition of faces and objects
? High sharpness equal to daylight vision which definitely improves the vision quality
? Reduced lighting costs of the recovery area, consequently improving also the derived privacy


There are many arguments that convey its success, the Tiandy implementation of the Starlight is today the best in terms of range and quality, allowing visibility up to 0.0008 Lux

Video Content Analysis

VCA or Video Content Analysis is the set of video analysis made available on Tiandy products useful for the detection of specific actions, a technology that allows a step forward compared to the common video surveillance cameras that only detect a movement in a single area.

The Video Analysis allows to identify the type of movement and assign it based on specific logics of behavior drastically reducing false alarms and detecting decidedly more complex events.


This camera features:
- Line crossing

Useful to detect the overcoming of a "virtual" line, typical examples of Tripwire, in the underground docks, in the presence of gates or private areas, obviously the tripwire allows you to select a series of settings useful to avoid false alarms, such as size , the management and much more.


- Perimeter

The perimeter is another type of complex analysis managed by Tiandy, the principles are similar to bypassing but the reference is a specific perimeter in which tiandy alerts in case you enter that area, the uses are easily imaginable, security areas, reserved or near to input outputs, all requirements that with a typical Motion Detection are not manageable.


- Abandoned objects

The management of the abandoned object today has become a very important need especially in the field of public places, where it is essential to have immediate notification of variations in the shooting area. Once the management area has been defined, it is possible to foresee the change of the scene with the presence of "new" objects, being able to manage complexity and many other parameters, even in areas with considerable scene complexity and reduced dimensions, obviously also in this case the parameters are remarkable and the possibilities of use also. Try to think of public entrances, but also shops or warehouses.


- Object lost

Exactly the inverse of the abandoned object, the change of scene with the subtraction of an object present, can give rise to an alarm useful to detect any subject who has carried out the subtraction of the same, also in this case no difficulty to operate on complex scenes and very small dimensions, the object can be moved inside the area, but if it is taken outside it automatically triggers the alarm, the utility is easily understood in areas exposed to the public with products that must be visible but that should not be subtracted.



- Loitering

The concept of Loitering has been strongly requested in recent years due to vandalism, the loitering detects people who reside in the recovery area for a period longer than "defined" and does so without a specific path (precisely loitering) typical of whom is performing operations such as tracking, or is close to actions towards people or things, also in this case, besides defining the area, many parameters are possible to avoid false alarms

- Parking area

The parking analysis detects the possible arrest of an object with specific dimensions within an area, useful for areas with reserved parking, or simply to inform when certain areas are occupied, also for statistical purposes, used on roads, on private parking of restaurants or hotels. In the presence of PTZ cameras or other systems, they can trigger a series of events such as counting or tracking and much more.


- Crowd

One of the most important analyzes required today is the crowd assembly, sometimes for statistical purposes, sometimes for security reasons, Tiandy's Crowd mode, not only allows the analysis of this event by defining the assembly parameters (density and much more ) but can trigger many alarms that can trigger subsequent events. The same system is used for Marketing purposes in environments where you want to monitor when the influx of people to the venue is particularly high so as to plan which are the most successful schedules, or changes during events (to detect the event with greater attraction .

- Face detection


Triplo Stream, Triplo flusso dati

The Video Stream is the video stream sent by the camera or recording to allow viewing or recording, typically the video surveillance equipment has 2 Stream Video, the first for recording (high resolution) the second for remote viewing (low resolution , low bandwidth).


Tiandy introduced the THIRD STREAM is an extremely useful tool in video surveillance implementations, the third Stream is yet another indispensable tool for professional use of video surveillance as there are several needs that require video streams of different qualities (eg online transmission , recording on sd-card, video streams on internal and external network, recording on different devices, online transmission, etc.) needs that stand out from the first and second streams, now manageable with the third Stream.


All this is possible thanks to the high performance of the hardware introduced in the cameras that guarantee reliability even with many simultaneous flows.


Primary Flow: 1080P (1920x1080)
Secondary flow: D1 (704x576)
Third Flow: CIF ( 352 × 288)


Slot per MicroSD

This camera is equipped with a Micro SD slot.
Supports MicroSD up to a maximum of 128Gb.

Illuminatore Smart IR

This camera is equipped with an IR illuminator with Smart IR technology

The light emitted by the LEDs is adapted according to the object framed

Approximate flow 200m

Esempio illuminatore IR con tecnologia SmarIR

Wide Dynamic Range 120dB

WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high contrast light / shadow. Fundamental in the case of shooting from inside to outside, license plates, points in the shade or all situations where there is no homogeneous light.

Funzione ROI This camera has a ROI function .

Images from IP cameras are "compressed", so quality is set during recording. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and to record a greater number of days or cameras.
The ROI allows you to define areas where to set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus ensuring a greater definition of the image.
Ultra Smart Funzione ROIFunzione Smart Defog SMART DEFOG
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
Example image of DEFOG function
Example image of DEFOG functionProtezione contro fulmini e sovraccarico

This camera is protected against overloads / lightning.
TVS 6000V

Overload / Lightning Protection: 4000V


No video present
