IP FULL HD video surveillance camera, PTZ Speed dome model (with PAN, TILT and ZOOM functions) for outdoor / indoor use with 2Megapixel resolution (25fps) with image sensor 1 / 2.9 "CMOS Progressive Scan + Hi3516C , 4x Optical Zoom (f = 2.8-12mm) and 3x Digital Zoom, 6-LED IR Illuminator (Max 50mt). Audio , integrated SD Card, ONVIF, 4G Data SIM Slot! Setik. PTZIP2M4X4G
PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%
HAVE YOU ALREADY TRIED WITH OUR JOYLCD? This Setik PTZ IP surveillance camera is also manageable via the JOYLCD controller ! |

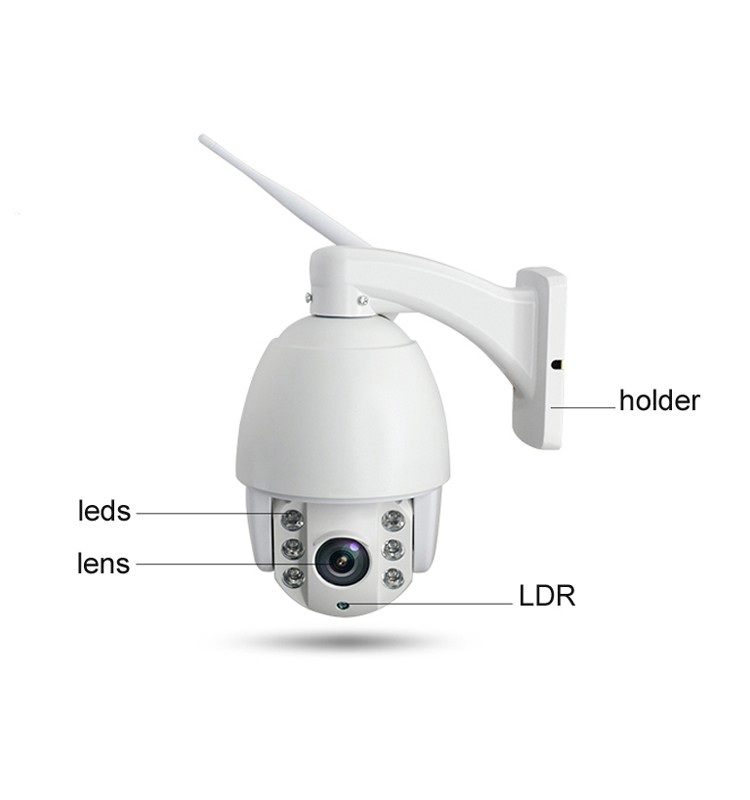

IP SPEED DOME PTZ CAMERA 4G - FULL HD 2MP - 4X ZOOM - SDCARD - AUDIO - SETIK
PTZ IP 4G camera - Setik Resolution 2Megapixel (25fps), Sensor 1 / 2.9 "CMOS, Optical Zoom 4x (2.8-12mm)
IR illuminator up to 50mt, integrated SD card , 4G GSM SIM slot !
Onvif compatible , IP66 protection (from outside / inside) - Audio - 24 months warranty
Product details
- IP camera - Setik
- Type: PTZ Speed Dome (PAN, TILT and ZOOM functions)
- Connectivity: SIM GSM 4G
- Image sensor 1 / 2.9 "Progressive Scan CMOS
- Resolution: 2 Megapixels (25fps)
- 4x Optical Zoom (f = 2.8-12mm ) + 3x Digital Zoom
- IR illuminator with maximum range 50mt (6x LED)
- Onvif 2.0 compatible
- Functions: Day / Night with IR Cut Filter, AGC, BLC, HLC, 3D DNR, Smart Defog , DWDR
- Audio on board
- Integrated SD Card (32GB)
- IP66 protection (rain / dust) . Suitable for outdoor / indoor environments

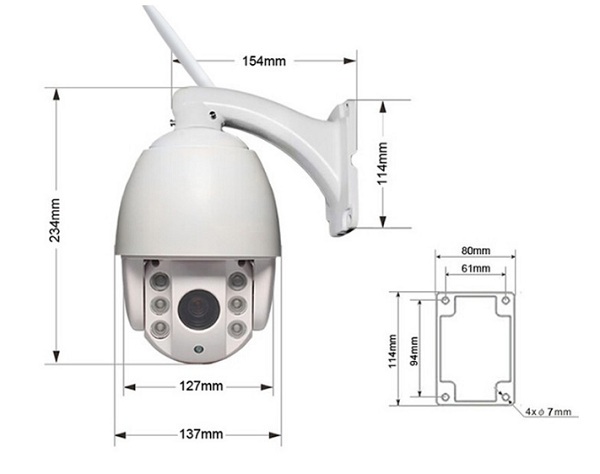

- Dimensions: 7137 × 228mm (Ceiling) / ?137 × 239mm (Wall)
- Material: Aluminum
- 24 month Italian warranty
Data sheet
| Model | PTZIP2M4X4G |
| Room | |
| Image Sensor | Hi3516C, 1 / 2.9 "Progressive Scan CMOS |
| Resolution | 1920x1080 |
| pixel | 2MP |
| Signal System | PAL |
| Video Format | 25fps (50Hz) |
| Min Illumination | Color 0.01Lux @ F1.2, black and white 0.001 Lux@F1.2 |
| White Balance | Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp |
| AGC | Auto / Manual |
| S / N Ratio | "52db |
| BLC | ON / OFF |
| HLC | Support |
| 3D DNR | Support |
| Smart Defog | Support |
| DWDR | Support |
| Shutter Time | 1 ~ 1 / 1000s |
| Day / Night | ICR |
| Frame Rate | 25fps |
| Privacy Masking | Support 4 rectangle areas |
| Bit Rate | 307Kbps ~ 8Mbps |
| Auto Focus | Auto / Semi-automatic / Manual |
| Optical Zoom | 4X |
| Digital Zoom | 3X |
| LENS | |
| Focal Length | 2.8 ~ 12mm, 4X |
| Zoom Speed | Approx 3s |
| Angle Of View | 91 ° -28 ° |
| Minimum Working Distance | 10-600mm |
| Aperture Range | Fix |
| PAN & TILT | |
| Pan Range | 0 ° ~ 355 °; |
| Pan Speed | Pan Manual Speed: 0.1 ° ~ 40 ° / s, Pan Preset Speed: 40 ° / s |
| Tilt Range | 0 ~ 90 ° |
| Tilt Speed | Tilt Manual Speed: 0.1 ° ~ 40 ° / s, Tilt Preset Speed: 40 ° / s |
| Number Of Preset | 128 |
| Patrol | 8 patrols, 8 presets per patrol |
| Power Loss Recovery | Support |
| Park Action | Preset / Patrol / Pattern / Pan Scan |
| AUDIO | |
| Audio Input | Optional (Not Build-In) |
| Audio Ouput | Optional (Not Build-In) |
| INFRARED | |
| Infrared Lamp | 6pcs ?14 Lattice Lamps |
| IR Distance | 40m ~ 60m |
| Wavelength | 850nm |
| SIGNAL & STORAGE | |
| 4G | WCDMA / GSM |
| Storage | Built-in 32G TF card (32G / 64G Optional) |
| Max Image Resolution | 1920 * 1080 |
| Frame Rate | 50Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720) |
| Main Stream | 50Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720) |
| Sub Stream | 720P (640x480 & 640x352), 720P (320x240 & 320x176), D1 (704 * 576), CIF (352 * 288) |
| Jpeg Rate | Q720P (640x352), QQ720P (320x176) |
| Image Compression | H.264 / MJPEG / 32Kbps-6144bps |
| Audio Compression | G.711 / G.722 / G.726 / MP2L2 (Optional) |
| Protocol | TCP / IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
| No. of simultaneous users | Up to 12 users ? Three level authority ? Administrator / User / Visitor |
| Dual Stream | Support |
| ONVIF | 2.0 |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
| Transmission | Internal Cloudsee Protocol |
| Browser | IE8 +, Chrome18 +, Firefox5.0 +, Safari5.02 + browsers |
| GENERAL | |
| Menu language | English & Chinese |
| Power Supply | DC 12V 2A |
| Power Consumption | Day: ? 12W Night: ? 24W |
| temperatures | -20 ? ? + 60 ? (-4 ° F ~ 140 ° F) |
| Working Humidity | <95% |
| Protection Level | IP66 Standard (outdoor dome) |
| Material | Aluminum |
| Dimensions | 7137 × 228mm (Ceiling) 7137 × 239mm (Wall) |
| Weight | 1.8kg |
More details
 | Read the article dedicated to PTZ Setik! (Italian) |
 | This camera has SLOTS FOR NETWORK CONNECTION THROUGH 4G GSM SIM CARDS! |
 | This camera has a resolution of 2 Megapixels (1920x1080) @ 25fps, |
 | Image sensor 1 / 2.9 "Progressive Scan CMOS + Codec Nextchip Hisilicon HI3516C |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems. This camera supports the ONVIF Version 2 standard |
 | This camera is a Speed Dome Camera with PAN, TILT and ZOOM movement |
 | 4x Optical Zoom on 2Megapixel Lens |
 | Compatible with all browsers! |
 | IR LED (6pcs) suitable for viewing up to 5 0m, integrated in the camera body, thus follows the image in the movement |
 | Protection level against heavy rain and dust in IP parameters. |
 | It allows to adapt the lens to the Night / Day vision and the consequent management of the IR illuminator in an automatic way
|
 | The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies  |
 | The AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in managing images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with internal-to-external filming, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations |
 | HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc ...). It also prevents attempts to blur the image.  |
 | ULTRA DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 | 3D-NR is the most advanced version of NOIS REDUCTION management. Allow still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light conditions |
 | This camera features Audio IN and Audio OUT |
 | 32GB SD CARD integrated in the device |
 | Wall arm included in the package.  |
 | 12V 2A power supply included in the package  |
 | This product is covered by a 24 month warranty. |
