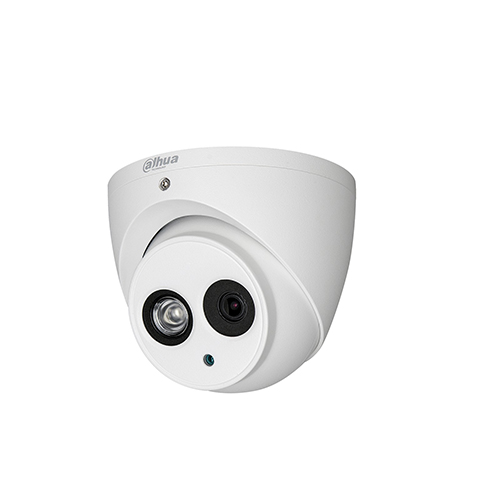

4in1 4MP Dome Camera 2.8mm IR 50MT Version S2 D


4in1 dome video surveillance camera ( HDCVI - CVBS - TVI - AHD )   with 4MP resolution , 2.8mm fixed lens and 1 / 2.7 "CMOS image sensor. Smart IR quality illuminator (about 50mt), CVBS video output, D ay / Night (ICR), AGC, BLC, HLC, DWDR. Protection IP67 (Dust / Immersion). HAC-HDW1400EM-S2

Reference: HAC-HDW1400EM-S2

Brand: Dahua

EAN: 6939554958892

€43.30

€111.02 -61%
taxes included
Tax included
 Available
 Available

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


4IN1 CAMERA ( HDCVI - CVBS - TVI - AHD ) DOME 4 MEGAPIXEL 2.8MM FIXED LENS - 50 METERS IR - S2 VERSION - DAHUA

Prodotto Dahua 4 in 1 dome camera ( HDCVI - CVBS - TVI - AHD ) S2 version - Dahua
4Megapixel resolution - 2.8mm fixed lens - 1 / 2.7 "CMOS image sensor
Day / Night (ICR) - Smart IR illuminator (about 50Mt) - IP67 protection (outdoor / indoor)
12V DC power supply - 24 months warranty

Product details

Telecamera Dome con risoluzione 4MP e ottica fissa 2.8mm. IP67, IK10
- 4In1 dome camera ( HDCVI - CVBS - TVI - AHD ) - Dahua
- Version S2
- Resolution: 4Megapixel
- 2.8mm fixed optic
- 1 / 2.7 "CMOS image sensor
- Day / Night (ICR), AGC, BLC, HLC
- Quality IR illuminator with a maximum range of 50 meters.
- IP67 protection (Dust / Immersion)
- Multilingual OSD menu
- 1 channel BNC high definition video output / CVBS video output (Can switch)
- 12V DC power supply not included
- 24 months warranty

Data sheet

Model HAC-HDW1400EM-S2
Room
Image Sensor 1 / 2.7 "CMOS
Effective Pixel 2560 (H) × 1440 (V), 4MP
Scanning System Progressive
Electronic Shutter Speed

PAL: 1/25 ~ 1 / 100000s

NTSC: 1/30 ~ 1 / 100000s

Min. Illumination 0.03Lux / F2.0, 30IRE, 0Lux IR on
S / N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On / Off control Auto / Manual
IR LEDs 1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm
Max Aperture F2.0
Angle Of View H: 97 °
V: 52 °
Focus Control N / A
Close focus distance

800mm

31.5 ''

PTZ
PAN / Tilt Range

Pan: 0 ° ~ 360 °

Tilt: 0 ° ~ 78 °

Rotation: 0 ° ~ 360 °

Video
Resolution

4MP (2560x1440)

Frame Rate 25 / 30fps @ 4MP, 25 / 30fps @ 1080P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day / Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain control AGC
Noise reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications

CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 + CAN / CSA C22.2 No. 60950-1)

Interface
Audio Interface N / A
Electrical
Power Supply 12V DC ± 30%
Power Consumption Max 3.9W (12V DC, IR on)
Environmental
Operating Consumption

-40 ° C ~ + 60 ° C (-40 ° F ~ + 140 ° F) / Less than 90% RH * Start up should be done at above -40 ° C (-40 ° F)

Storage condition


-40 ° C ~ + 60 ° C (-40 ° F ~ + 140 ° F) / Less than 90% RH

Ingress Protection & Vandal Resistance IP67
Construction
Casing Aluminum
Dimensions


Φ106mm × 93.7mm (Φ4.17 "× 3.69")

Net Weight 0.41kg
Gross Weight 0.51kg

Further details

Tecnologia Quadribrida This camera is a QUADRIBRIDA (4 integrated technologies)
These cameras are at the same time, HDCVI - CVBS - TVI - AHD

Questa telecamera ha una risoluzione 4Mpx 2560x1440 This camera has a resolution of 4Megapixel:

25fps @ 4MP, 25fps @ 1080P, 25fps @ 720P



Image sensor 1 / 2.7 4Megapixel progressive scan CMOS
Ottica fissa 3.6mm

This camera has a 2.8mm fixed lens

Illuminatore IR 50 MT

Infrared illuminator with REAL range up to 50MT for night vision.

SMART IR technology .
The light emitted by the LEDs is adapted according to the object being viewed.



OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ...



The OSD menu is multi-language

Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
IR CUT FILTER

The IR CUT FILTER is a mechanical filter that allows correct display of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

AGC

AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

Protezione IP67 contro polveri e immersioni IP67 protection level (Dust / Immersion)

12V 3A power supply This camera requires a 12V DC power supply for operation.
12V DC power supply not included.
12V DC power supply
Materiale con cui è stato creato il dispositivo This camera has an aluminum body
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English Brochure
Schema con le dimensioni della telecamera dome hdcvi HAC-HDW1400EM-S2

Immagine esempio risoluzioni a confronto

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
