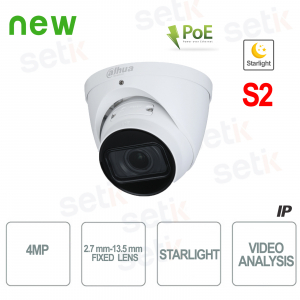

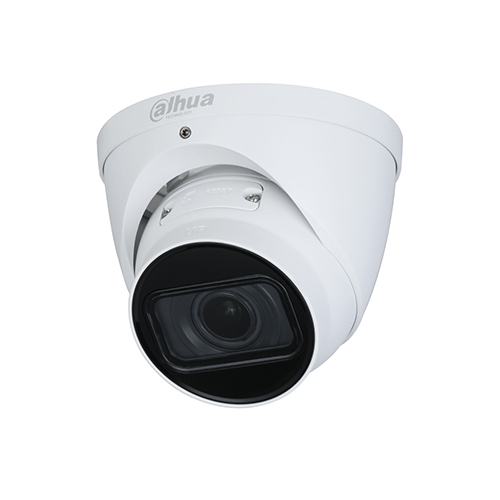

Outdoor ONVIF PoE IP camera for video surveillance Dahua IPC-HDW2431T-ZSVersion S24 Megapixel dome , Motorized optic 2.7 ~ 13.5 mm. 1/3 "CMOS progressive CMOS sensor with Starlight technology , H.265, 2 LED 40M IR illuminator. WDR 120dB , Day / Night (ICR), IP67 protection. MicroSD slot, Video Analysis.
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU FCC: 47 CFR FCC Part 15, Subpart UL / CUL: UL60950-1 CAN / CSA C22.2 No. 60950-1-07
12V DC / PoE (802.3af)
-30 ° C to + 60 ° C (-22 ° F to + 140 ° F) / less than ≤ 95%
-40 ° C to + 60 ° C (-40 ° F to + 140 ° F)

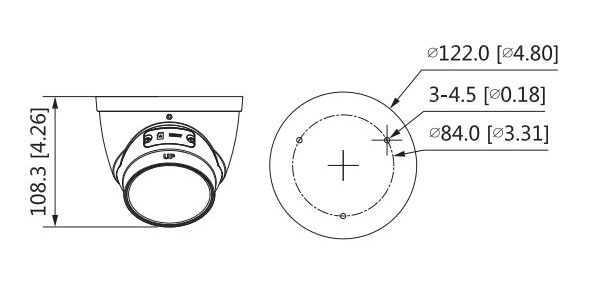

108.3 mm × Φ122 mm (4.26 "× Φ1.80")
0.69 kg (1.52 lb)
0.88 kg (1.94 lb)
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. DO NOT be Onvif, it means having a camera in itself which can never be used together with recording systems
This camera supports the Onvif version
The advantage of a PoE camera is evident, it allows to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
This camera features a 4 Megapixel resolution !
1/3 "CMOS sensor with STARLIGHT technology.
Low brightness, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode.
Normally, when entering night mode, the color vision becomes black / white.
With the SENSOR present, the night shots will be clear and in color
This camera provides Video compression in H.264 and H.265 format, the new Standard for video compression!
2.7-13.5mm varifocal lens with motorized zoom
Motorized zoom example:
Infrared illuminator with 2 LEDs and range of 4 0 meters
This camera is also equipped with SMART IR technology . Through this technology,the light emitted by LEDs is adapted according to the object being viewed.
Remote visibility on mobile using Dahua's DMSS application.
This camera has VIDEO ANALYSIS (IVS) functions: - Line crossing recognition - Intrusion detection
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high contrast light / shadow. Fundamental in the case of shooting from the inside to the outside, plates, shaded spots or all situations where there is no homogeneity of light.
It allows you to adapt the lens to night / day vision and the consequent management of the IR illuminator automatically.
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (Parking entrances or exits, license plate pick-up, presence of special lights etc ...).
AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.
3D-NR is the most advanced version of the Noise Reduction management, it allows still images in the presence of low light and in motion, The currently most powerful solution for obtaining maximum results in low light.
This camera is equipped with an onboard microphone
Possibility of inserting Micro SD up to maximum 256Gb - not included
