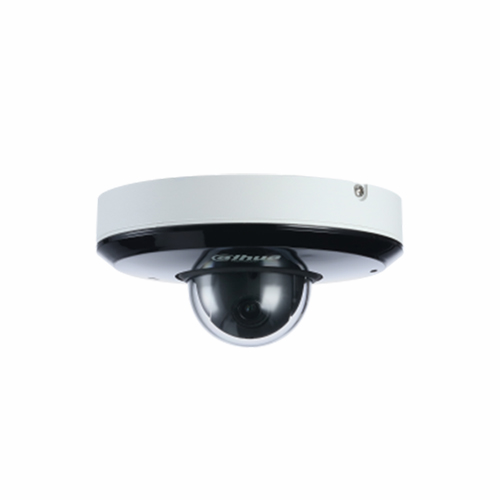

AI 15M 4MP IR PoE IP Camera Starlight Dome PTZ

AI 15M 4MP IR PoE IP Camera Starlight Dome PTZ

AI Series SD1A404XB-GNR Dahua Outdoor IP ONVIF PoE camera with 4Megapixel resolution, motorized varifocal lens with 4X optical zoom (2.8 mm – 12mm), 1 / 2.8 " Sony® STARVIS ™ CMOS sensor with Starlight Technology, H.265 +. Triple Stream, WDR 120dB, perimeter protection, video analysis, Audio, Alarm, ROI, EIS, Defog, MicroSD slot, IP66 protection, IK08.

Reference: SD1A404XB-GNR

Brand: Dahua

EAN: 6939554926013


€645.38 -59%
taxes included
Tax included
discover the available quantity


Scrivici dove e ti sconteremo la differenza fino a fine mese!



Made by Setik IP T elecamera IP ONVIF® POE Dome NEtwork Camera Dahua
4Megapixel Resolution - 2.8mm ~ 12mm Optical ( 4x Optical Zoom) - 1 / 2.8 "CMOS Sensor Sony® STARVIS ™ CMOS Starlight
IR Illuminator up to 15 meters - Perimeter Protection - Video Analysis - Audio / Alarm
Micro SD Card slot - IP66 / I08K protection - 24 months warranty

Tecnologia Intelligenza Artificiale

Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.

Product details

Telecamera videosorveglianza IP Dome PTZ PoE 4MP Motorizzata
  • AI IP ONVIF® external PoE camera - Dahua
  • 4Megapixel resolution
  • 2.8 mm – 12 mm motorized varifocal lens (4x optical zoom)
  • 1 / 2.8 " Sony® STARVIS ™ CMOS sensor with Starlight Technology
  • Starlight technology: Color night vision!
  • Video Compression up to H.265 +
  • Triple Stream
  • Day / Night (ICR), AWB, AGC, BLC, HLC 2D / 3D-NR, Defog, EIS, WDR (120db)
  • Quality illuminator up to 15 meters .
  • Artificial Intelligence: Perimeter Protection (Line Crossing / Intrusion) - SMD - Video Metadata
  • Standard Video Analysis : Abandoned / lost objects
  • Remote viewing via DMSS
  • 1 audio input and 1 audio output
  • 1 microSD-Card slot (Max 256GB not included)
  • IP66 / IK08 protection
  • Metal
  • Dimension: Φ128.0 mm × 65.4 mm (5.04 "× 2.57")
  • Arm included - Power supply NOT included
  • 24 months warranty

Data sheet

Model SD1A404XB-GNR
Image Sensor 1 / 2.8 ”STARVIS ™ CMOS
Effective Pixel 4 Megapixels
Max. Resolution 2560 (H) × 1440 (V)
Scanning System Progressive
Electronic Shutter Speed 1/1 s – 1 / 30,000 s
Min. Illumination Color: 0.005Lux@F1.8
B / W: 0.0005Lux@F1.8
0Lux (IR light on)
IR Distance 15 m (49.21 ft)
IR On / Off Control Zoom Prio / Manual / SmartIR
Focal Length 2.8 mm – 12 mm
Max Aperture F1.8 – F2.7
Angle Of View H: 31.6 ° -96.9 °
V: 17.8 ° -51.4 °
D: 36.4 ° –116.2 °
Optical Zoom 4x
Focus Control Auto / Semi-Auto / Manual
Iris Control Car
Close Focus Distance 0.2 m – 0.5 m (0.66 ft – 1.64 ft)
Pan / Tilt Range Pan: 0 ° -355 ° Tilt: 5 ° –90 °
Manual Control Speed Pan: 0.1 ° / s – 70 ° / s Tilt: 0.1 ° / s – 30 ° / s
Preset Speed

Pan: 80 ° / s Tilt: 40 ° / s

Presets 300
Tour 8 (up to 32 presets per tour)
Pattern Number 5
Scanning Number 5
Speed Adjustment Support
Power-off Memory Support
Idle Motion Preset / Tour / Pattern / Scanning
Artificial Intelligence
Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
SMD Support
General Intelligence
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
General Intelligence Object Abandoned / Missing
Compression H.265 + / H.265 / H.264 + / H.264 / MJPEG (sub stream)
Streaming Capability 3 Streams

4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x 1080); 1.3M (1280 x 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 4MP / 3MP / 1080P / 1.3MP / 720P (1–25fps)
Sub stream 1: D1 / CIF (1–25fps)
Sub stream 2: 1080P / 1.3M / 720P (1–25fps

Bit Rate Control Variable Bit Rate / Constant Bit Rate
Bit Rate H.265 / H.264: 3 kbps – 20480 kbps
Day / Night Auto (ICR) / Color / B / W
BLC Support
WDR 120 dB
HLC Support
White Balance Auto / Indoor / Outdoor / Track / Manual / Sodium lamp / Natural light / Street lamp
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D / 3D)
Motion Detetion Support
Region of interest Support

Electronic Image Stabilization (EIS)


Electronic Defog


Digital Zoom



180 °

Privacy Masking

Up to 24 areas, and up to 8 areas in the same view
Compression G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729
Ethernet RJ-45 (10 / 100Base-T)

IPv4; IPv6; HTTP; HTTPS; SSL; TCP / IP; UDP; UPnP; ICMP; IGMP; SNMPv1 / v2c / v3 (MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x

Interoperability ONVIF® Profile S&G; CGI
Streaming Method Unicast / Multicast
User / Host 19
Edge Storage NAS; Local PC; Micro SD card (256G)
Web Viewer IE7 and newer versions Chrome 45 and earlier versions Firefox 52 and earlier versions Safari (no version restrictions)
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android

CE: EN55032 / EN55024 / EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1 + CAN / CSA C22.2, No. 60950-1

Audio Interface


Power Supply

DC12V / 1.5A ± 15%

PoE (802.3af)

Power Consumption

8.5W (IR on)

Operating Conditions

30 ° C to + 60 ° C (-22 ° F to 140 ° F)

Operating Humidity


Ingress Protection

IK08; IP66; TVS 6000V lightning proof; surge protection

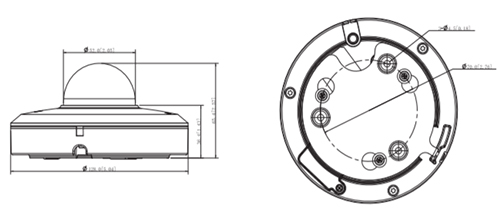

Φ128.0 mm × 65.4 mm (5.04 "× 2.57")

Net Weight

0.485 kg (1.06 lb)

Gross Weight

0.7 kg (1.54 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, it means having a camera for its own sake that can never be used together with recording systems


This camera is ONVIF® compatible

The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

PoE is the first generation technology, PoE + is the latest standard .
PoE (IEEE 802.3af)

PoE + (IEEE 802.3at) (High-PoE)

AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:


- Perimeter protection: Intrusion, Line crossing

- SMD: With the deep-learning algorithm, Dahua SMD filters the alarm generated by a motion detection on an unaffected target. It recognizes humans and vehicles in an excellent way, promptly sending an alarm when any of them intrude in a certain area

Questa telecamera ha una risoluzione 4Mpx 2560x1440 This camera has a resolution of 4Megapixels

Codifica video Smart H.265+

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Sony Exmor CMOS

1 / 2.8 "STARVIS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode


Logo Starvis

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixels

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity in the vicinity of an area covered by infrared light

- Supports WDR (WDR multiple exposure, DOL-WDR)

- Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2)


With the Sony CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black / white.

With the SENSOR present, night shots will be sharp and in color

Zoom 4x - Ottica varifocale

4x Optical Zoom on 2Megapixel Lens

Focal Length: 2.8mm-12mm


Main stream: 4MP / 3MP / 1080P / 1.3MP / 720P (1–25fps)
Sub stream 1: D1 / CIF (1–25fps)
Sub stream 2: 1080P / 1.3M / 720P (1–25fps)
Illuminatore IR da 15mt

The IR LED illuminator with a range of up to 15 meters!

This camera is also equipped with SMART IR technology .
Through this technology, the light emitted by the LEDs is adapted according to the object framed.

Tecnologia Smart IR

This camera also provides VIDEO ANALYSIS (SMART DETECTION) functions:
- Recognition of lost and abandoned objects

Infrared Illuminator General PTZ Functions:
Pan / Tilt Range: Pan: 0 ° –360 ° (endless) Tilt: -15 ° –90 ° (auto flip 180 °)
Manual Control Speed: Pan: 0.1 ° –200 ° / s Tilt: 0.1 ° –120 ° / s
Preset Speed: Pan: 240 ° / s Tilt: 200 ° / s
Presets: 300
Tour: 8 (up to 32 presets per tour)
Pattern Number : 5
Scanning Number : 5
Speed Adjustment : Support
Power-off Memory : Support
Idle Motion : Preset / Tour / Pattern / Scanning
Protocol : DH-SD Pelco-P / D (auto recognition)
Full HD It is extremely useful to have Inputs / Outputs in a CCTV system to be able to control relays or activate a recording following an event.
This camera with 2 inputs and 1 output
Ingresso Audio This camera has 1 Audio In + 1 Audio Out
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
DEFOG Function Icon This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Funzione EIS This camera features the EIS function .

The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable
Ultra Smart Funzione Stabilizzazione EIS
Messa a fuoco automatica

This camera has auto , manual, semi-auto focus

MicroSD Recording

Possibility to insert Micro SD up to maximum 256GB (not included)

Materiale con cui è stato creato il dispositivo This camera is made of aluminum
12V 3A power supply Power supply NOT included in the package
12V DC power supply
IP66 WaterProof Heavy rain and dust protection level in IP parameters.
Dual Encoding This product is covered by a 24 month warranty.


Download the English brochure
Telecamera PTZ Speed Dome IP Dahua -SD1A404XB-GNR
