IP Cameras Bullet 2MP 1080P 3.6mm - Promo Series - Setik

IP Cameras Bullet 2MP 1080P 3.6mm - Promo Series - Setik
The following product is also part of these COMPLETE CCTV KITS:
-40%

IP Bullet Camera with resolution 2.0Mp and fixed lens 3.6mm. Image SensorHI3518E+F02, IR illuminator with 12 SMD leds (20mts), Day/Night(ICR), DNR, H.265/ H.264, AWB, AGC, BLC e OSD menu. IP66 Protection (Rain/Dust). Cloud P2P. White Color. Lite Series. BLIP2MPX36-PROMO

Reference: BLIP2MPX36-PROMO

Brand: Setik

EAN: 8058258762234

€50.51

€84.18 -40%
taxes included
Tax included
 Available
 Available




IP BULLET CAMERA - 2MP 1080P FIXED LENS 3.6MM - PROMO SERIES - SETIK
PRODUCT AVAILABLE UNTIL OUT OF STOCK!

Made by Setik IP Bullet Camera - Setik
Resolution 2MP 1080P - Fixed Lens 3.6mm - Image Sensor CMOS HI3518E+F02
Day/Night (ICR), DNR, AWB, AGC,BLC - OSD Menu - IR Illuminator with 12x SMD Leds - Cloud p2p!
Power Supply 12VDC (not included) - 24-Month Warranty

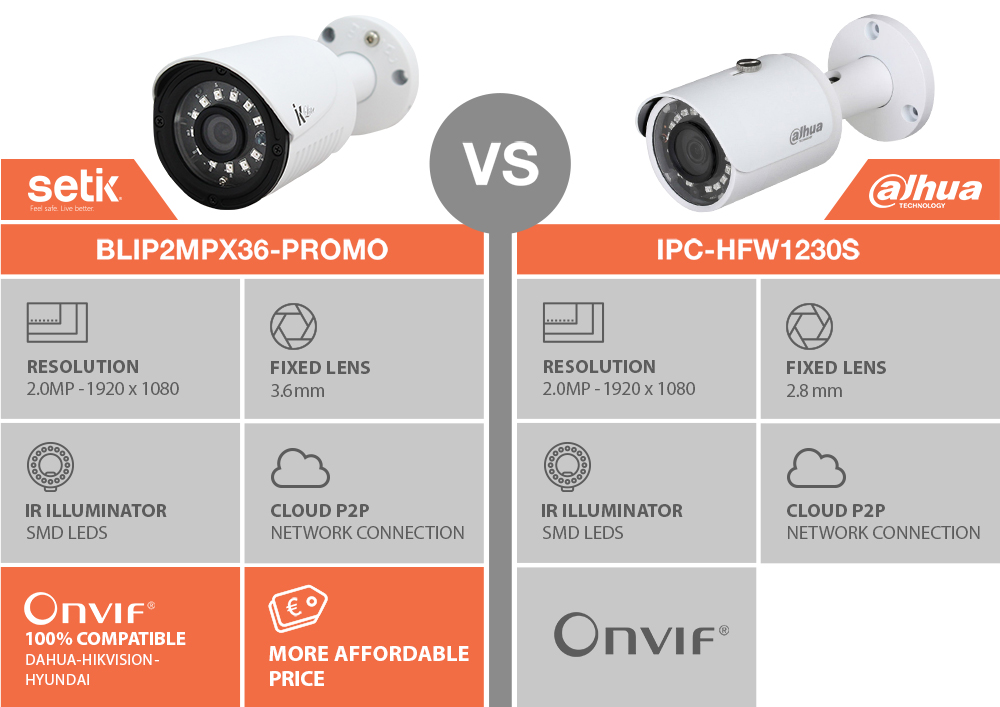

Comparazione tra BLIP2MPX36PROMO e IPC-HFW1230S

Product Details

IP Camera 2Mpx 3.6mm  IP66 Video Surveillance
IP Camera - Setik
Resolution 2.0MPX 1080P
Fixed Lens 3.6mm
Image Sensor CMOS HI3518E+F02
IR illuminator with 12x SMD Leds
IP66: Protection from dust and rain
Day / Night (ICR), DNR, AWB, AGC, BLC
Cloud P2P (Xmeye)
OSD Menu
Waterproof Connectors
White Color
Power Supply 12VDC (not included)
24-Month Warranty




Technical Features

Model BLIP2MPX36-PROMO
Camera
Image Sensor 1/2.7” di Silicon Optronics (JX-F02) + Chip HI3518E
Tv system PAL/NTSC
Image Resolution/Frame  Rate  1920*1080
Horizontal Resolution 2.0MP
SYNC Internal
Video Output 1.0Vp-p Composite Signal (75ohm)
Minimum Illuminator 0 Lux (Infrared Light Open)
Gama adjust 0.45
Electric Shutter PAL:1/50s-1/100000s / NTSC:1/60s-1/100000s
S/N Ratio 58dB(min)(AGC closed)
Lens 3.6mm HD 3MP Lens
IR Led 12 SMD leds
DNR Yes
AWB AUTO
AGC AUTO
BLC Auto,Ext
Day / Night Yes
OSD With OSD
Environmental
Power Supply DC12V±1V
Operation temperature Temperature -10℃~+75℃,Humidity less than 85%RH
OSD Language Chinese English
Weight 0.28KG
Video Output 1.0Vp-p,75Ω
Infrared Sensitivity support
Max Coding Rate 128-8192kbps
IR Distance 20M
Dimensions 150(W)x63(H)x63(D)mm
Certification CE,ROHS,FCC

Further Details

Read the article dedicated to the new SMD LEDS!

 Articles Comparative article of Dahua/Setik cameras 2 Megapixel Lite/Pro.
Click here to read it
ONVIF Standard Onvif, the absolute standard for IP cameras. Being Onvif ensures compatibility with every modern recording system. NOT being Onvif means owing a camera which cannot be used together with recording systems
2.0mpx This camera have a resolution of @1080p
1080P(1920X1080)/D1(704X576)

 Example Ripresa telecamera 1Mpx 3.6mm - BLIP10-36IRLT Serie Lite
 SOI logo Silicon Optronics Image Sensor CMOS 1/2.7” of Silicon Optronics (JX-F02) + Chip HI3518E

Image Sensor SOI 1/4
 SMD leds

IR illuminator with 12 led SMD (Surface-Mount-Device, led di nuova generazione.

 leds SMD BLIP20-36IRLT




ADVANTAGES:

  • - High Luminosity
  • - Reduced energetical consumption
  • - Small Size
  • - Long Lasting



Support Cloud Feature

Cloud feature with XMEYE Cloud app
Just on step to activate remote view thanks to the easy settings

http://xmeye.net

Mobile official App:
Android: Vmeyecloud, vmeyesuper,
Iphone: Vmeyecloud,vmeyesuper,


XM CLoud

IP66 Waterproof.

IP66: Protection from dust adn water

Camera outputs

This camera is provided with new generation leds with indicators..

Leds are WATERPROOF






OSD_Menu OSD Menu (ON SCREEN DISPLAY) It allows to define deteminated areas and to hide them, ATR, the Day/Night, the speed, white balance,light compensation and further more...

Example OSD Menu su sistema Effio-E

Day/Night Feature. Permette di adatta la lente alla visione notte

It allows to adapt the lens to Day/Night.

Possibility to set Day/Night level
Day/Night feature

IR Cut Filter

IR CUT FILTER is a mechanical filter that enables a correct viewing of the images in day conditions, filtering the typical IR frequencies. This way, image quality is improved. In night conditions, the filter is removed because the typical IR frequencies need to be captured.
Example Funzione IR Cut Filter

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions designed for the management of images in contrast. Light compensation is one of the most difficult operations and the BLC function allows to adjust those situations in which shooting could be difficult: parking’s' entrances or exits, number plate shooting, atypical light conditions, etc.

AGC

Automatic Gain Control, with the possibility to automatically adjust the sensitivity in particular usage conditions.

Power Supply 12V 3A This camera needs a 12V DC for working.(Power supply not included)
Power Supply 12V DC
Warranty Icon Covered by 24-Month Warranty

Download

Download the Depliant (Soon Available)

Comapration between various IP resolutions
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form

You might also like

OTHER PRODUCTS RELATED TO THIS ITEM

Questions (4)

From Michele giacalone | 2018-07-14 20:01:12

salve avrei bisogno del software (p2p)
ho le telecamere senza cd installazione software.
disitinti saluti

administrator

Buongiorno,


i prodotti marchiati Setik (come indicato nel foglietto illustrativo all'interno della confezione) non hanno più un CD fisico ma un sito di riferimento da cui poter scaricare tutto il necessario.


Di seguito il riferimento: http://dvripc.com/" target="_blank">http://dvripc.com/


Restiamo a disposizione

From emanuele sanna | 2017-09-04 09:43:22

La telecamera se collegata ad un NVR Dahua 4216 4ks2 ha bisogno di particolari configurazioni per funzionare?

administrator

Buongiorno,


una volta impostata la telecamera nella medesima classe di rete di NVR e router e sufficiente effettuare la ricerca della stessa lato registratore (tramite aggiunta automatica o manuale, inserendo il suo IP).


Restiamo a disposizione.


Cordialmente

From antonio montesano | 2017-04-05 18:05:02

buonasera, volevo sapere se questa telecamera è anche wifi? BLIP2MPX36

administrator

Buongiorno,


questa telecamera non prevede WIFI. in caso deve valutare questo modello: BLIP20-36IRLTW


Cordialmente

From Biagio Girolamo | 2016-12-04 17:51:22

Volevo sapere se ci va anche la microsd per fare le registrazioni, grazie

administrator

Buongiorno,

questo modello di telecamera non presenta a bordo lo slot per una microSD.

Cordialmente
