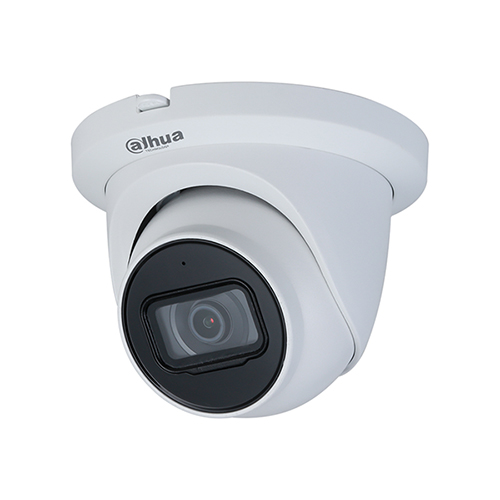

AI IP Camera ONVIF PoE 4MP 2.8mm Starlight Dome Microphone Dahua

AI IP Camera ONVIF PoE 4MP 2.8mm Starlight Dome Microphone Dahua
-56%

IPC-HDW3441TM-AS Dahua AI Onvif PoE outdoor IP camera with Artificial Intelligence Lite , 4 Megapixel 4MP , 1 / 2.7 "CMOS sensor with Starlight Technology , 2.8mm optics, H.265 + . Smart IR illuminator 2 LED 50M, WDR 120dB , Perimeter Protection, Intrusion, Line Crossing, Video Analysis , micro sd slot, Microphone , IP67

Reference: IPC-HDW3441TM-AS

Brand: Dahua

EAN: 6939554975103

€129.91

€295.24 -56%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


ONVIF POE OUTDOOR IP CAMERA - 4MEGAPIXEL - 2.8MM - ARTIFICIAL INTELLIGENCE - MICROPHONE - DAHUA

Dahua ONVIF PoE outdoor IP camera - AI Dahua Series
4Megapixel resolution - 2.8mm lens - 1 / 2.7 "CMOS Starlight - H.265 +
IR Illuminator 2 LEDs 50M - WDR 120dB - MicroSD Slot - Video Analysis - Microphone
Artificial Intelligence: Perimeter Protection - Intrusion - People Counting

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.

Product details

Telecamera dahua IPC-HDW3441TM-AS
  • PoE external AI IP camera - Dahua
  • 4 Megapixel 4MP resolution
  • 2.8mm fixed lens
  • 1 / 2.7 " CMOS sensor with STARLIGHT technology
  • Starlight technology: Color night vision
  • Video compression up to H.265 +
  • Triple Stream
  • WDR 120dB - Defog
  • IR illuminator with 2 LEDs and approximate range of about 50m
  • Artificial Intelligence Lite : Perimeter Protection, Intrusion, Line Crossing
  • Remote viewing with DMSS / Cloud P2P
  • Integrated microphone
  • Micro SD memory slot (Up to 256GB - not included)
  • IP67 protection (indoor / outdoor)
  • Material: Metal
  • Dimensions: 99.1 mm × Φ121.9 mm
  • Power supply NOT included
  • 24 months warranty

Data sheet

Model IPC-HDW3441TM-AS
Room
Image Sensor 1 / 2.7 ”4Megapixel progressive CMOS
Effective Pixel 2688 (H) × 1520 (V)
ROM / RAM 128MB / 512MB
Scanning System Progressive
Electronic Shutter speed Auto / Manual 1/3 s – 1/100000 s
Min. Illumination

0.005 Lux@F1.6

IR Distance 50 m (164.0 ft)
IR On / Off Control Auto / Manual
IR LEDs 2 (IR LEDs)
Pan / Tilt / Rotation Range Horizontal: 0 ° –360 °; vertical: 0 ° -78 °; rotation: 0 ° –360 °
Lens
Lens Type Fixed Focal
Mount Type M12
Focal Length 2.8mm
Max. Aperture F1.6
Angle Of View Horizontal: 103 °; vertical: 55 °; diagonal: 122 °
Iris Type Fixed aperture
Close Focus Distance 0.9 m (3.0 ft)
Professional, Intelligent
Perimeter protection Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream (2688 × 1520 @ 1–25 / 30 fps)
sub stream (704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps)
third stream (1280 × 720 @ 1–25 / 30 fps)
Stream Capability 3 streams
Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR / VBR
Video Bit Rate H.264: 3 Kbps – 8192 Kbps
H.265: 3 Kbps – 8192 Kbps
Day / Night Auto (ICR) / Color / B / W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto / natural / street lamp / outdoor / manual / regional custom
Gain Control Auto / Manual
Noise Reduction 3D DNR
Motion Detection OFF / ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0 ° / 90 ° / 180 ° / 270 ° (Support 90 ° / 270 ° with 1920 × 1080 resolution.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G726; AAC
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTM
P; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multi
cast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability ONVIF (Profile S / Profile G); CGI; P2P; Milestone; Genetec
Scene Self-adaptation Yes
User / Host 20 (Total bandwidth: 64M)
Edge Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser IE: IE8, IE9, IE11
Chrome
Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU FCC: 47 CFR FCC Part 15, Subpart B UL / CUL: UL60950-1 CAN / CSA C22.2 No. 60950-1-07
Power
Power Supply 12V DC / PoE (802.3af
Power Consumption

<7.7W

Environment
Operating Conditions -40 ° C to + 60 ° C (-40 ° F to + 140 ° F) / less than≤95%
Storage Conditions -40 ° C to + 60 ° C (-40 ° F to + 140 ° F)
Ingress Protection IP67
Structure
Casing Metal
Dimensions 99.1 mm × Φ121.9 mm (3.9 "× Φ4.8")
Net Weight 480 g (1.05 lb)
Gross Weight 660 g (1.45 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, it means having a camera for its own sake that can never be used together with recording systems

This camera is ONVIF compatible

PoE power supply The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

AI | Artificial intelligence
This camera features Artificial Intelligence on board

- Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , consisting of a large number of sources that enclose facial data, allowing the camera to locate faces quickly and accurately from the video source and capture facial images.


- Line crossing:

-intrusion

- Perimeter protection: Intrusion, Line crossing (classification of people & vehicles)

AI Camera - Cattura del volto

Codifica video Smart H.265+

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Risoluzione 4Mpx 2592x1520

4 Megapixel (2688 × 1520) resolution @ 30fps

1 / 2.7 "sensor with STARLIGHT technology.

Low brightness, color vision even in night mode



With this sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black / white.

With the SENSOR present, night shots will be in color

Ottica fissa This camera features 2.8mm fixed lens
      • Main stream (2688 × 1520 @ 1–25 / 30 fps)
      • sub stream (704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps)
      • third stream (1280 × 720 @ 1–25 / 30 fps)
Illuminatore IR 50 MT

Infrared illuminator with 2 IR and range up to 50MT for night vision.

SMART IR technology .
The light emitted by the LEDs is adapted according to the framed object.

Full HD

Remote visibility on mobile using Dahua's DMSS application.

Questa telecamera presenta microfono a bordo This camera is equipped with an on-board microphone
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione ROI This camera is equipped with the ROI function .

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and to record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
DEFOG Function Icon It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

MicroSD Recording

Possibility to insert Micro SD up to maximum 256Gb - not included

12V 3A power supply Power supply NOT included
12V DC power supply
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English brochure
Telecamera dahua IPC-HDW3441TM-AS schema
