IP Camera ONVIF PoE Bullet 4MP 2.8mm Full-Color Starlight Warm Led Audio D


IPC-HFW2439S-SA-LED-S2 Dahua 4 Megapixel 4MP PoE bullet external IP camera , 1/3 "CMOS sensor with Full-Color Starlight Technology , 2.8mm optics, H.265 + , Smart IR Illuminator 1 LED Warm Light 30M , WDR 120dB, Video Analysis , micro sd slot, cloud p2p , Audio, Alarm, IP67

Reference: IPC-HFW2439S-SA-LED-S2

Brand: Dahua

EAN: 6939554994531

€103.76

€230.58 -55%
taxes included
Tax included
 Available
 Available

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


IP CAMERA ONVIF POE BULLET EXTERNAL - 4MEGAPIXEL - 2.8MM - VIDEO ANALYSIS - WARM LED - DAHUA

Dahua ONVIF PoE IP Camera - Dahua
4Megapixel resolution - 2.8mm lens - 1/3 "CMOS with Full-color Starlight technology - H.265 + compression
IR illuminator 1 LED warm light 30M - WDR 120dB - MicroSD slot - Video Analysis - Audio / Alarm
Equipped with microphone - Power supply not included - 24 month warranty

Product details

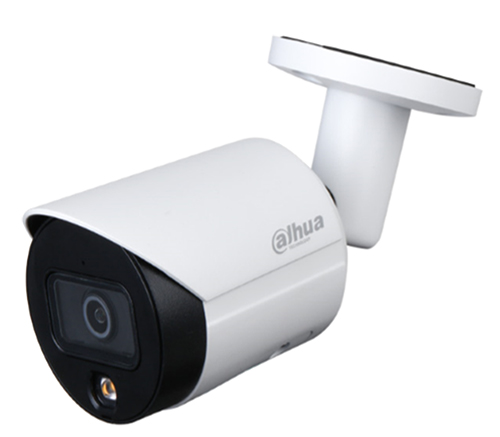

IPC-HFW2439S-SA-LED-S2_SMALL
  • PoE external IP camera - Dahua
  • 4Megapixel 4MP resolution
  • 2.8mm fixed lens
  • 1/3 " CMOS sensor with Full-color Starlight Technology !
  • Starlight Full-Color : Thanks to the high quality of the sensor and the wide viewing angle of the lens, this camera guarantees clearer color images, even in low light environments
  • Video compression up to H.265 +
  • WDR 120dB - ROI
  • IR illuminator with 2 warm light LEDs to improve color night vision
  • Standard Video Analysis: Line crossing, intrusion
  • Remote viewing with DMSS / Cloud P2P
  • Audio: Built-in microphone
  • Alarm on event
  • Micro SD memory slot (Up to 256GB - not included)
  • IP67 protection (indoor / outdoor)
  • Material: Metal and plastic
  • Power supply NOT included
  • Dimension 100.9 mm × Φ109.9 mm (4.0 "× Φ4.3")
  • 24 months warranty

Data sheet

Model IPC-HFW2439S-SA-LED-S2
Room
Image Sensor 1/3 ”4Megapixel progressive CMOS
Effective Pixel 2688 (H) × 1520 (V)
Scanning System Progressive
Electronic Shutter speed Auto / Manual 1/3 s – 1 / 100,000 s
Min. Illumination

0.004 Lux@F1.0

S / N Ratio

> 56 dB

Illumination Distance 30 m (98.4 ft)
Illuminator On / Off Control Auto / Manual
Illuminator Number 1 (Warm light)
Pan / Tilt / Rotation Range Pan: 0 ° –360 ° Tilt: 0 ° –90 ° Rotation: 0 ° –360 °
Lens
Lens Type Fixed
Mount Type φ14
Focal Length 2.8 mm
Max. Aperture F1.0
Angle Of View 96 ° (Horizontal) × 51 ° (Vertical) × 115 ° (Diagonal)
Aperture Type Fixed
Close Focus Distance 1.3 m (4.3 ft)
Smart Event
General IVS Analytics Tripwire; intrusion
Video
Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265 + / Smart H.264 +
Frame Rate

Main stream: 2688 × 1520 (1 fps – 25/30 fps) 2560 × 1440 (1 fps – 25/30 fps) Sub stream: 704 × 576 (1 fps – 20/25 fps) 704 × 480 (1 fps – 20 / 30 fps)

Streaming capability 2 streams
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR / VBR
Bit Rate

H.264: 32 kbps – 6144 kbps
H.265: 12 kbps – 6144 kbps

Day / Night

Color / B / W

BLC Yes
HLC Yes
WDR 120 dB
White balance Auto / natural / street lamp / outdoor / manual / regional custom
Gain Control Auto / Manual
Noise reduction 3D DNR
Motion Detection OFF / ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image rotation 0 ° / 90 ° / 180 ° / 270 ° (Support 90 ° / 270 ° with 2688 × 1520 resolution and lower.)
Mirror yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726; AAC
Alarm
Alarm Event No SD card; Full SD card; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API YES
Protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4 / v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP; Bonjour

Interoperability ONVIF (Profile S / Profile G / Profile T); CGI; P2P; Milestone; Genetec
User / Host 20 (Total bandwidth: 72 M.)
Storage

Dahua Cloud; FTP; Micro SD card (support max. 256 G); NAS; SFTP

Browser IE Chrome Firefox
Max. User Access 20 Users
Management Software Smart PSS; DSS; DMSS
Smartphone IOS, Android
General
Power Supply 12V DC / PoE (802.3af)
Power Consumption

<6.2W

Operating Conditions -40 ° C to + 60 ° C (-40 ° F to + 140 ° F) / less than ≤ 95% RH
Storage Conditions -40 ° C to + 60 ° C (-40 ° F to + 140 ° F)
Ingress Protection IP67
Vandal Resistance N / A
Casing metal
Dimensions 100.9 mm × Φ109.9 mm (4.0 "× Φ4.3")
Net Weight 0.365 kg (0.8 lb)
Gross Weight 0.527 kg (1.2 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, it means having a camera for its own sake that can never be used together with recording systems



This camera is ONVIF compatible

PoE power supply The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

Codifica video Smart H.265+

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Risoluzione 4MP 4 Megapixel This camera features 4Megapixel resolution !

Tecologia full-color dahua







1/3 "CMOS Sensor with Full-Color Starlight Technology !



FULL-COLOR STARLIGHT:

The camera is equipped with a 1/3 "wide aperture, high performance F1.0 lens.

With a greater amount of absorbed light and an advanced algorithm for image processing, the camera exhibits impressive low-light performance with an outstanding balance of noise reduction and moving object blur.



2 WARM LIGHT LED:

With two additional warm light LEDs, the camera is able to deliver images with more vivid colors even in total darkness.

The camera is also equipped with a Smart Light mode that allows the camera to automatically and simultaneously manage the exposure time and light sensitivity to avoid overexposure of objects in the center of the image.

The sensitivity and intensity of the LEDs can also be controlled remotely via the OSD menu.







Ottica fissa This camera features 2.8mm fixed lens

Illuminatore IR fino a 25mt



Infrared Illuminator with 1 Warm Light LED with a maximum range of 30mt



Smart IR technology

This camera is also equipped with SMART IR technology .
Through this technology, the light emitted by the LEDs is adapted according to the object framed.

This camera features VIDEO ANALYSIS (SMART DETECTION) functions:
- Line crossing
- Intrusion

Full HD

Remote visibility on mobile using Dahua's DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione ROI This camera is equipped with the ROI function .

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and to record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Questa telecamera presenta microfono a bordo This camera is equipped with an on-board microphone
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

MicroSD Recording

Possibility to insert Micro SD up to maximum 256Gb - not included

12V 3A power supply Power supply NOT included
12V DC power supply
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English brochure
IPC-HFW2439S-SA-LED-S2
