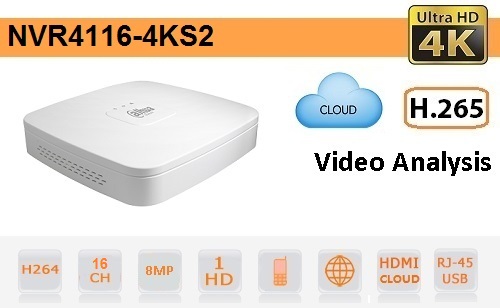

IP Channels 16 NVR 4K & H.265 up to 8MP 1HDD - Lite Series - Dahua


IP NVR video recorder for surveillance. 16 Channels up to 8Megapixel 4K ULTRA-HD in preview and playback, Max 80Mbps band wide, H.265 / H.264 Video Compression, 1 HDMI, 1 VGA, Max 1HDD SATA 3.5 ", 2 USB Ports, 1 Input + 1 Audio Output , 1 RJ-45 10 / 100Mbps port , ONVIF compatible, Video Analysis support, ANR function, Lite series, NVR4116-4KS2

Reference: NVR4116-4KS2

Brand: Dahua

  Hurry up! Only a few pieces left in our warehouse!
 Available

LO HA TROVATO A MENO?

Ci scriva dove e le sconteremo la differenza fino a fine mese!

meno

ARE YOU IN RULE WITH THE GDPR?×


Starting from May 2018, the GDPR, the new general regulation on data protection, came into force.
If you purchase a recorder, to be compliant with this regulation you will also need to purchase the dedicated box.
Check out Pulsar metal cases and store your data securely!


16-CHANNEL IP ULTRA-HD 4K NVR UP TO 8 MEGAPIXEL - H.265 - DAHUA VIDEO ANALYSIS
VERSION WITHOUT POE DOORS!

Made by Dahua Nvr IP 16 Channels - New 4K Series - Dahua
16 4K ULTRA-HD channels up to 8Megapixel - Max 80Mbps broadband - H.265 / H.264
Compatible ONVIF - Video Analysis Supported - ANR Function - 1 Input + 1 Audio Output
The color can vary from white to black depending on the arrivals. 24 month warranty


4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to a resolution of 4 Full-HD, then 3840 X 2160!
Already employed in consumer electronics, it is finally arriving in the world of security. The new generation of DAHUA equipment, in fact, allows the support of Cameras up to 12MPX on H265 standard, the new video compression that allows saving up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.



Product details

VERSION WITHOUT POE DOORS!
NVR 16 Canali IP Dahua fino a 8megapixel 4k ultra hd

In the Setik catalog there are also PoE versions

Check!



8 PoE ports | NVR4116-8P-4KS2



DO YOU NEED POE DOORS?

If the features of this product are right for you, but you need PoE ports , don't worry!



Recording resolution: 8Mp / 6Mp / 5MP / 4MP / 3MP / 1080P / 1.3MP / 720P etc.

Maximum 80Mbps bandwidth (REC 80Mbps, Tx 80Mbps, Live 48Mbps)
Frame resolution ratio and variable bit rate (48Kbps ~ 8.192Mbps) per single channel








It also records and sends snapshots on external Cloud Storage (Dropbox, Skydrive)

H265 Video Compressione

This NVR supports video compression in H.264 and also in the new H.265 standard
Optimized for Mobile
4K Risoluzione Ultra HD New ULTRA HD 4K Technology !
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
16 Canali IP

16 Channels up to 4K ULTRA-HD 8 Megapixe l in preview and playback !

Questo DVR supporta telecamere per la videosorveglianza con standard ONVIF Supports ONVIF IP cameras Version 2.4
Questo DVR supporta telecamere per la videosorveglianza Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

(operation with the models proposed here is to be verified from case to case)
Funzione Video Analisi

This video recorder supports some features of Video Analysis:
- Heat map
- Line crossing
- Intrusion
- People counting

Full HD

Cloud function with Easy4IP

Funzione Video Analisi

This NVR supports cameras with on-board IVS (Video Analysis Functions)

Questo NVR presenta la visibilità da remoto fino a 20 utenti simultanei

Multiple network monitoring: Web viewer, CMS (DSS / PSS) & DMSS (best CCTV software for Mobile)

Questo NVR è compatibile con tutti i sistemi mobile: Android, Windows Mobile, Iphone, Blackberry, Symbian OS Compatible with all mobile devices: Android, Iphone,
 Android, Iphone,
PoE power supply Equipped with: 1 SATA Port III. Supports Hard Disk up to 6 TB (Hard disk not included)

ATTENTION: use specific audio / video discs on NVR systems.
For more information, read our dedicated article .
Automatic Network Replenishment ANR (Automatic Network Replenishment). This function allows you to store locally when the network is temporarily unavailable or is congested. Normally in the event of such events, the NVR stops recording, this type of NVR instead compensates for this problem. The ANR also manages the information flow to the NVR thus avoiding network congestion

Immagine esempio funzione ANR ( Automatic Network Replenishment )
Funzione Motion Motion function. Recording starts when the camera detects motion.
1x RJ-45 (10 / 100Mbps)
IP66 WaterProof This NVR has 2x USB ports
HDMI This product has 1x HDMI port.


Questo DVR presenta ingressi / uscite audio This DVR has 1 input and 1 audio output
Funzione Dynamic DNS Dynamic DNS: allows to reach the NVR even in case of Dynamic IP
Funzione invio email in caso di notifica

This NVR has email sending.
In the event of events (camera obfuscation, signal cutting, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP

Warranty

This product is covered by a 24 month warranty.

Data sheet

Video Loss and Tampering

(accurate to second), Smart search

Next File, Previous File, Next Camera,

Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Canon, CP Plus, Dynacolor, Honeywell, Panasonic,

Pelco, Samsung, Sanyo, Sony, Videotec, and more

1 ~ 30 sec, Post-record: 10 ~ 300 sec

IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip

(8.1 "x 8.1" x 1.8 ")

Model: DVR NVR4116-4KS2
SYSTEM
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
DISPLAY
Interface 1 HDMI, 1 VGA
Resolution 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Multi-screen Display

1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

VIDEO DETECTION & ALARM
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection

Motion Detection, MD Zones: 396 (22 × 18),

Alarm Input N / A
Relay Output N / A
PLAYBACK & BACKUP
Playback 1/4/8/16
Search Mode

Time / Date, MD and Exact Search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play,

Backup mode USB Device / Network
STORAGE
Internal HDD 1 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode

Single

AUXILIARY INTERFACE
USB 2 USB Ports (2 USB2.0)
RS485 N / A
THIRD-PART SUPPORT
Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom,

AUDIO & VIDEO
HDCVI Camera Input 16 Channel
Two-way talk 1 Channel Input, 1 Channel Output, RCA
RECORDING
Compression H.265 / H.264
Resolution 8Mp / 6Mp / 5MP / 4MP / 3MP / 1080P / 1.3MP / 720P etc.
Record Rate

80Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record:

NETWORK
Interface 1 RJ-45 Port (100M)
Ethernet Port 1 Independent 100Mbps Ethernet Port
Network Function

HTTP, HTTPS, TCP / IP, IPv4 / IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP,

Max User Access 128 users
SmartPhone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
ELECTRICAL
Power Supply DC12V / 2A
Power Consumption <6.3W (Without HDD)
ENVIRONMENTAL
Operating Conditions -10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F), 86 ~ 106kpa
Storage Conditions -20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH
CONSTRUCTION
Dimensions

Smart 1U, 204.6mm × 204.6mm × 45.6mm

Net Weight 0.4kg (0.88 lb) (without HDD)
Gross Weight 1.5kg (3.31 lb) (without HDD)
CERTIFICATIONS
Certifications

CE: EN55032, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL: UL60950-1 + CAN / CSA C22.2 No.60950-1

More details

Schema dimensioni NVR4116-4KS2
Schema dimensioni NVR4116-4KS2

Download

Download the English brochure

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
