Discontinued: Replaced with NVR4216-4KS2 / L

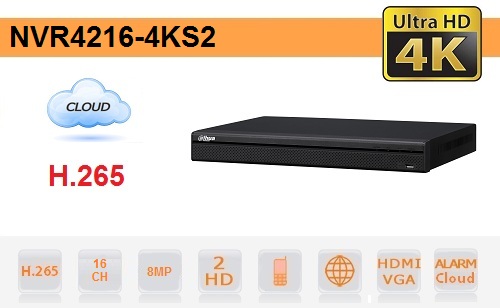

NVR4216-4KS2 Replaced with NVR4216-4KS2 / L : Dahua 4K Ultra HD Professional IP NVR for surveillance - 16 IP channels with resolution up to 8MP , Supports H.265 Video Compression, Up to 160Mbps input bandwidth. HDMI (4K) / VGA Video Outputs, Onvif Support, Max 2 SATA 3.5 "HDDs , 2 USB Ports, Cloud P2P Support, Support Video Analysis, Heat Map Face Detection, People Counting, Alarm & Audio Inputs / Outputs.

Reference: NVR4216-4KS2

Brand: Dahua

EAN: 6939554902833


TELECAMERA IP WIFI  2MEGAPIXEL DOME PTZ DA INTERNO - STARLIGHT - VIDEO ANALISI - AUDIO

THIS PRODUCT IS OUT OF CATALOG!
GO TO THE NEW VERSION!

NVR 16 CHANNELS IP DAHUA - 4K ULTRA HD SERIES - H.265 - UP TO 8 MEGAPIXELS - DAHUA
VERSION WITHOUT POE PORTS!

Prodotto marca Dahua 16 Channel IP NVR - New 4K Series - Dahua
Up to 8MP resolution - 200Mbps maximum bandwidth - H.265 / H.264 Video Compression
Alarm & Audio Inputs / Outputs - Video Analysis Support and ANR Function
ONVIF support - Hard Disks NOT included - 24 months warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to display (on a 4K monitor) the image in its maximum detail.



Product details

VERSION WITHOUT POE PORTS!
NVR 16 Canali fino a 8MP - Serie 4K Ultra HD - Dahua
NEED POE DOORS?

If the features of this product are right for you, but you need PoE ports , don't worry!

In the Setik catalog there are also PoE versions

Check!

16 PoE Ports | NVR4216-16P-4KS2




H265 Video Compressione

This NVR supports video compression in H.264 and also in the new H.265 standard
Optimized for Mobile
4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
16 Canali

Up to 16 IP channels
Recording up to 8 Megapixels!

Up to 200Mbps broadband inbound
16Kbps ~ 20Mbps per channel

Questo DVR supporta telecamere per la videosorveglianza con standard ONVIF Support ONVIF Version 2.4 IP cameras
Questo DVR supporta telecamere per la videosorveglianza Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec and others ...
(operation with the models proposed here is to be verified from case to case)
Funzione Video Analisi

This VCR supports some functions of Video Analysis:
- Heat map
- Line crossing
- Intrusion
- People counting


Funzione Video Analisi

This NVR supports cameras with IVS (Video Analysis Functions) on board



Full HD

Cloud function with Easy4IP

Questo NVR è compatibile con tutti i sistemi mobile: Android, Windows Mobile, Iphone, Blackberry, Symbian OS Compatible with Mobile devices: iPhone, iPad, Android
Hard Disk Supports 2x 3.5 "SATA Audio / Video AV-GP Hard Disk (Up to 6TB) - NOT INCLUDED
It also works without a hard disk even remotely!

ATTENTION: use specific audio / video discs on NVR systems.
For more information, read our dedicated article.
Ingressi USB This NVR has 2 USB Ports (1 USB2.0, 1 USB3.0)
HDMIThis product features 1x HDMI port.
Questo NVR presenta ingressi e uscite allarme With 4 IN and 2 OUT alarm relays for inputs from burglar alarms or other instruments and to activate external peripherals (gates, sirens, etc.)
Questo DVR presenta ingressi / uscite audio This DVR has 1 audio input and 1 audio output
Automatic Network Replenishment ANR (Automatic Network Replenishment). This feature allows you to archive locally when the network is temporarily unavailable or congested. Normally in case of events of this type, the NVR stops recording, this type of NVR instead compensates for this problem. The NRA also manages the information flow to the NVR thus avoiding network congestion

Immagine esempio funzione ANR ( Automatic Network Replenishment )
Funzione Dynamic DNS Dynamic DNS: allows you to reach the NVR even in the case of Dynamic IP
Funzione Sovrascrittura Ability to overwrite the disk when full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time
Funzione invio email in caso di notifica This NVR has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email report, a sound notification or upload videos & screenshots via FTP
Funzione Motion Motion function. Recording starts when the camera detects motion.
Porta Ethernet RJ-45 ( 10 / 100 / 1000 Mbps) 1x RJ-45 (10/100 / 1000Mbps)
Questo NVR è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Data sheet

Model: DVR NVR4216-4KS2
SYSTEM
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
DISPLAY
Interface 1 HDMI, 1 VGA
Resolution 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Multi-screen Display

1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

VIDEO DETECTION & ALARM
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss & Tampering

Alarm Input

4 Channel, Low Level Effective,

Green Terminal Interface

Relay Output

2 Channel, NO / NC Programmable,

Green Terminal Interface

PLAYBACK & BACKUP
Playback 1/4/8/16
Search Mode

Time / Date, Alarm, MD & Exact search

(accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play,

Next File, Previous File, Next Camera,

Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup mode USB Device / Network
STORAGE
Internal HDD 2 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode

Single

AUXILIARY INTERFACE
USB 2 USB Ports (1 USB2.0, 1 USB3.0)
RS485 N / A
THIRD-PART SUPPORT
Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom,

Canon, CP Plus, Dynacolor, Honeywell, Panasonic,

Pelco, Samsung, Sanyo, Sony, Videotec, and more

AUDIO & VIDEO
HDCVI Camera Input 16 Channel
Two-way talk 1 Channel Input, 1 Channel Output, RCA
RECORDING
Compression H.265 / H.264
Resolution 8Mp / 6Mp / 5MP / 4MP / 3MP / 1080P / 1.3MP / 720P etc.
Record Rate

200Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record:

1 ~ 30 sec, Post-record: 10 ~ 300 sec

NETWORK
Interface 1 RJ-45 Port (10/100 / 1000Mbps)
Ethernet Port 1 Independent 1000Mbps Ethernet Port
Network Function

HTTP, HTTPS, TCP / IP, IPv4 / IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP,

IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip

Max User Access 128 users
SmartPhone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
ELECTRICAL
Power Supply DC12V / 4A
Power Consumption <6.9W (Without HDD)
ENVIRONMENTAL
Operating Conditions -10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F), 86 ~ 106kpa
Storage Conditions -20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH
CONSTRUCTION
Dimensions

1U, 375mm × 281.5mm × 56mm

(14.8 "x 11.1" x2.2 ")

Net Weight 1.6kg (3.5 lb) (without HDD)
Gross Weight 3.2kg (7.1 lb) (without HDD)
CERTIFICATIONS
Certifications

CE: EN55032, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL: UL60950-1 + CAN / CSA C22.2 No.60950-1

Further details

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
