NVR IP 8 Channels 4K 8MP 8 PoE Ports 80Mbps Dahua

NVR IP 8 Channels 4K 8MP 8 PoE Ports 80Mbps Dahua

NVR IP video recorder for 8 channel surveillance up to 8Megapixel 4K ULTRA-HD , Max 80Mbps band, H.265 / H.264 video compression, 1 HDMI, 1 VGA, Max 1HDD SATA 3.5 ", 2 USB ports, 1 input + 1 Audio output, 1 RJ-45 10/100 / 1000Mbps port, ONVIF compatible, ANR function , P2P cloud, 8 PoE ports, Lite series, NVR2108-8P-4KS2

Reference: NVR2108-8P-4KS2

Brand: Dahua

EAN: 6939554930249


€503.86 -65%
taxes included
Tax included
discover the available quantity


Scrivici dove e ti sconteremo la differenza fino a fine mese!



Made by Dahua Nvr IP 8 Channels - New 4K Series - Dahua
8 4K ULTRA-HD channels up to 8Megapixel - Max 80Mbps broadband - H.265 / H.264
Compatible ONVIF - ANR Function - 1 Input + 1 Audio Output - Cloud P2P
The color can vary from white to black depending on the arrivals. 8 PoE ports - 24 months warranty


4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to a resolution of 4 Full-HD, then 3840 X 2160!
Already employed in consumer electronics, it is finally arriving in the world of security. The new generation of DAHUA equipment, in fact, allows the support of Cameras up to 12MPX on H265 standard, the new video compression that allows saving up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.


Product details

NVR 8 Canali IP PoE Dahua fino a 8megapixel 4k ultra hd

H265 Video Compressione


This NVR supports video compression in H.264 and also in the new H.265 standard
Optimized for Mobile This NVR has 8 PoE ports 4K Risoluzione Ultra HD New ULTRA HD 4K Technology !
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
8 Canali IP

8 Channels up to 4K ULTRA-HD 8 Megapixe l in preview and playback !

Recording resolution: 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 & etc.

Max 80Mbps of incoming bandwidth
16Kbps ~ 20Mbps per channel

Questo DVR supporta telecamere per la videosorveglianza con standard ONVIF Supports ONVIF IP cameras Version 2.4 Questo DVR supporta telecamere per la videosorveglianza Supports IP cameras: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and others ...

(operation with the models proposed here is to be verified from case to case) Full HD

Cloud function with Easy4IP

Questo NVR è compatibile con tutti i sistemi mobile: Android, Windows Mobile, Iphone, Blackberry, Symbian OS Compatible with all mobile devices: Ipad, Android, Iphone,
Android, Iphone,PoE power supply Equipped with: 1 SATA III Port, up to 6 TB capacity. (Hard disk not included)

ATTENTION: use specific audio / video discs on NVR systems.
For more information, read our dedicated article .
Automatic Network Replenishment ANR (Automatic Network Replenishment). This function allows you to store locally when the network is temporarily unavailable or is congested. Normally in the event of such events, the NVR stops recording, this type of NVR instead compensates for this problem. The ANR also manages the information flow to the NVR thus avoiding network congestion

Immagine esempio funzione ANR ( Automatic Network Replenishment )Funzione Motion Motion function. Recording starts when the camera detects motion. 1x RJ-45 (10/100 / 1000Mbps) IP66 WaterProof This NVR features 2x USB ports (2 Rear USB2.0)

4K Risoluzione Ultra HD

Resolution up to 4K 8Megapixel ( 3840 × 2160) via HDMI Port!



New ULTRA HD 4K Technology !
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

Also present VGA output with resolution up to 1080P

Questo DVR presenta ingressi / uscite audio This DVR has 1 input and 1 RCA audio output Funzione Dynamic DNS Dynamic DNS: allows to reach the NVR even in case of Dynamic IP Warranty

This product is covered by a 24 month warranty.

Data sheet

Model: DVR NVR2108-8P-4KS2
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
IP Camera Input 8 Channel
Two-way talk 1 Channel Input, 1 Channel Output, RCA
Interface 1 HDMI, 1 VGA

HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Decoding Capacity 1ch @ 8MP 30fps, 4ch @ 1080P 30fps Multiscreen display 1/4/8/9 OSD Camera title, Time, Camera lock, Motion detection, Recording RECORDING Compression H.265 / H.264 Resolution

8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 & etc.

Recording Rate 80Mbps Bit Rate 16Kbps ~ 20Mbps Per Channel Recording Mode Manual, Schedule (Regular (Continuous), MD, Stop Recording Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec VIDEO DETECTION & ALARM Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), and Tampering Alarm Input N / A Relay Output N / A PLAYBACK & BACKUP Playback Channel 1/4 Search Mode Time / Date, MD and Exact Search (accurate to second) Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom Backup Mode USB Device / Network NETWORK Ethernet 1 RJ-45 port (10/100 / 1000Mbps) PoE 8 ports (IEEE802.3at / af) Network Functions

HTTP / HTTPS, TCP / IP, IPv4 / IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search (Support Dahua IP camera, DVR, NVS and etc.), Easy4ip

Max User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 2.4, SDK, CGI HARD DISK Internal HDD 1 SATA III Port, up to 6TB capacity for each HDD HDD Mode Single AUXILIARY INTERFACE Usb Interface 2 ports (2 Rear USB2.0) GENERAL Power Supply Single, DC48V / 2A Power Consumption

NVR: <5.8W (without HDD)

PoE: Max 25.5w for single port, 80w in total

Operating Conditions -10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F), 86 ~ 106kpa Storage Conditions -20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH Dimensions Smart 1U, 270mm × 204.7mm × 45.7mm (10.6 "x 8.1" x 1.8 ") Net Weight 0.65kg (1.43 lb) (without HDD) Gross Weight 1.8kg (3.97 lb) (without HDD) CERTIFICATIONS THERE IS EN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014 UL UL60950-1

More details

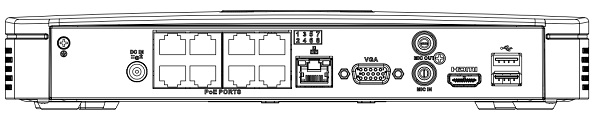

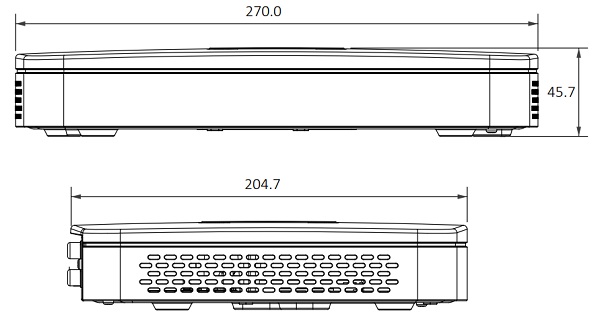

Schema dimensioni NVR2108-8P-4KS2
Schema dimensioni NVR2108-8P-4KS2


Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
