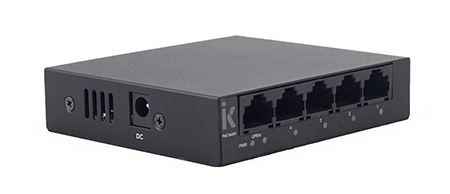

4-port network Poe switch + 1 Uplink up to 250 meters 10 / 100MBPS


4-port PoE switch + 1 UpLink port with a range of up to 250 meters! Support 802.3af standard and 802.3at, 10 / 100Mbps, maximum power 60W . Switchable transmission distance via special button ( Default 100mt / Extended 250mt on CAT5 or higher cable ) Status LED. Setik SW4 + 1POE

Reference: SW4+1POE

Brand: Setik

€39.89

taxes included
Tax included
 Available
 Available


SWITCH 4 POE DOORS + 1 UPLINK DOOR - 10 / 100MBPS 60W - UP TO 250 METERS - SETIK

Made by Setik 4-port PoE switch + 1 Uplink port - Setik
Coverage up to 250 meters - Standard 802.3af and 802.3at support , 60W maximum power
Switchable transmission distance from 100 to 250mt via special button ( default / extended )

Product details

Switch 4 porte PoE + 1 porta Uplink fino a 250metri
  • Type: 4 Port Switch - Setik
  • 4 PoE ports + 1 UpLink port
  • Standard 802.3af and 802.3at support
  • Standard 10 / 100Mbps
  • LED with status indicators
  • Maximum Power 60W
  • Coverage up to 250 METERS!
  • Possibility to switch the transmission distance through a special button ( default 100mt / extended 250mt )
  • Dimensions (LxWxH): 92mm x 82mm x 22mm
  • In the box: Switch / Power supply / User manual
  • 24 Months Italian Warranty

Data sheet

1 10 / 100Mbps Non-PoE RJ45 port (port 5)Network interface: 10BASE-T or 100BASE-TX Ethernet RJ45 portnetwork delay (100 to 100Mbps): maximum 20 us (using 64byte packet)MAC address capacity: 1KFrames filter and transfer rate: 10M port maximum 14,800pps / 100M port maximum 148,800ppsIEEE 802.3u 100BASE-TXIEEE 802.3x Flow controlIEEE 802.3af / at power over ethernetTo port: Link.Activity, .Speed, PoE active, PoE errorLINK / ACT PoE(each country use customized power plug)Weight: 0.7kgStorage Temperature: -20 ° C - 90 ° C (-4 ° - 194 ° F)Working Humidity: 10% - 90% (Non-condensing)Storage temperature: 5% - 90% (Non-condensing)
Model SW4 + 1POE
System
Network Port

4 10 / 100Mbps PoE RJ45 port (port 1 - port 4)

Transfer rate

100Mbps full duplex, 10 or 100Mbps half duplex

Performance

bandwidth: 1.0Gbps (no block)

Network protocol and standard

IEEE 802.3i 10BASE-T

Power pin

System: Power, PoE Mamimum power

Power Supply 1/2 (+), 3/6 (-)
LEDs indicator

Power

Power

Total power: 60W (POE Port: 1-4)

Dimensions

Size (LxWxH): 92mm x 82mm x 22mm

Environment

Operating Temperature: 0 ° - 45 ° C (32 ° -113 ° F)

More details

...to know more!

PoE products are essential for powering peripherals on a network. The existing standards are 802.3af and 802.3at, as well as a sea of NON-STANDARD products: make sure you only buy products that meet these standards so as to guarantee any compatibility in the present and in the future. Setìk imports, distributes and guarantees its own products suitable for supporting any PoE device.

Download

Download the brochure in English (available soon)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
