4K 4-channel IP NVR H.265 up to 8MP 1HDD PoE - Dahua

IP NVR video recorder for surveillance. 8 Channels up to 8Megapixel 4K ULTRA-HD in preview and playback, Max 80Mbps band, H.265 / H.264 Video Compression, 1 HDMI, 1 VGA, Max 1HDD SATA 3.5 ", 2 USB Ports, 1 Input + 1 Audio Output , 1 RJ-45 10 / 100Mbps port , ONVIF compatible, Video Analysis support, ANR function, 4 PoE ports, Lite series, NVR4108-P-4KS2

Reference: NVR4108-P-4KS2

Brand: Dahua

EAN: 6939554915543

MONITOR PROMO×

BUY A MONITOR AND GET CAMERAS FOR FREE
Discover promotions on the
Monitor 22" Dahua | LM22-H200
Monitor 43" Dahua | LM43-F200

OMAGGI DAHUA×

TELECAMERE DAHUA IN OMAGGIO!
Scopri qui come ottenerle!

Description Product Details Data Sheet Further Details Download

4K ULTRA-HD 8-CHANNEL IP NVR UP TO 8 MEGAPIXEL - H.265 - VIDEO ANALYSIS - POE - DAHUA
VERSION WITH 4 POE DOORS

Nvr IP 8 Channels - New 4K Series - Dahua
8 4K ULTRA-HD channels up to 8Megapixel - Max 80Mbps broadband - H.265 / H.264
Compatible ONVIF - Video Analysis Supported - ANR Function - 1 Input + 1 Audio Output
The color can vary from white to black depending on the arrivals. 4 PoE ports - 24 months warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to a resolution of 4 Full-HD, then 3840 X 2160! Already employed in consumer electronics, it is finally arriving in the world of security. The new generation of DAHUA equipment, in fact, allows the support of Cameras up to 12MPX on H265 standard, the new video compression that allows saving up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to a resolution of 4 Full-HD, then 3840 X 2160!
Already employed in consumer electronics, it is finally arriving in the world of security. The new generation of DAHUA equipment, in fact, allows the support of Cameras up to 12MPX on H265 standard, the new video compression that allows saving up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

Product details

VERSION WITH 4 POE DOORS!
NVR 8 Canali IP PoE Dahua fino a 8megapixel 4k ultra hd

Recording resolution: 8Mp / 6Mp / 5MP / 4MP / 3MP / 1080P / 1.3MP / 720P etc.Max 80Mbps of incoming bandwidth
16Kbps ~ 20Mbps per channel

It also records and sends snapshots on external Cloud Storage (Dropbox, Skydrive)

	This NVR supports video compression in H.264 and also in the new H.265 standard Optimized for Mobile
	This NVR has 4 PoE ports
	New ULTRA HD 4K Technology ! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	8 Channels up to 4K ULTRA-HD 8 Megapixe l in preview and playback !
	Supports ONVIF IP cameras Version 2.4
	Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec and others ... (operation with the models proposed here is to be verified from case to case)
	This video recorder supports some features of Video Analysis: - Heat map - Line crossing - Intrusion - People counting
	Cloud function with Easy4IP
	This NVR supports cameras with on-board IVS (Video Analysis Functions)
	Multiple network monitoring: Web viewer, CMS (DSS / PSS) & DMSS (best CCTV software for Mobile)
	Compatible with all mobile devices: Android, Iphone,
	Equipped with: 1 SATA III Port, up to 6 TB capacity. (Hard disk not included) ATTENTION: use specific audio / video discs on NVR systems. For more information, read our dedicated article .
	ANR (Automatic Network Replenishment). This function allows you to store locally when the network is temporarily unavailable or is congested. Normally in the event of such events, the NVR stops recording, this type of NVR instead compensates for this problem. The ANR also manages the information flow to the NVR thus avoiding network congestion
	Motion function. Recording starts when the camera detects motion.
	1x RJ-45 (10 / 100Mbps)
	This NVR has 2x USB ports
	This product has 1x HDMI port.
	This DVR has 1 input and 1 audio output
	Dynamic DNS: allows to reach the NVR even in case of Dynamic IP
	This NVR has email sending. In the event of events (camera obfuscation, signal cutting, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP
	This product is covered by a 24 month warranty.

Data sheet

Video Loss and Tampering(accurate to second), Smart searchNext File, Previous File, Next Camera,Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomCanon, CP Plus, Dynacolor, Honeywell, Panasonic,Pelco, Samsung, Sanyo, Sony, Videotec, and more1 ~ 30 sec, Post-record: 10 ~ 300 sec(8.1 "x 8.1" x 1.8 ")

Model: DVR	NVR4108-P-4KS2
SYSTEM
Main Processor	Quad-core embedded processor
Operating System	Embedded LINUX
DISPLAY
Interface	1 HDMI, 1 VGA
Resolution	3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Multi-screen Display	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
VIDEO DETECTION & ALARM
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18),
Alarm Input	N / A
Relay Output	N / A
PLAYBACK & BACKUP
Playback	1/4/8
Search Mode	Time / Date, MD and Exact Search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play,
Backup mode	USB Device / Network
STORAGE
Internal HDD	1 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode	Single
AUXILIARY INTERFACE
USB	2 USB Ports (2 USB2.0)
RS485	N / A
THIRD-PART SUPPORT
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom,
AUDIO & VIDEO
IP Camera Input	8 Channel
Two-way talk	1 Channel Input, 1 Channel Output, RCA
RECORDING
Compression	H.265 / H.264
Resolution	8Mp / 6Mp / 5MP / 4MP / 3MP / 1080P / 1.3MP / 720P etc.
Record Rate	80Mbps
Bit Rate	16Kbps ~ 20Mbps Per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval	1 ~ 120 min (default: 60 min), Pre-record:
NETWORK
Interface	1 RJ-45 Port (10 / 100Mbps)
Ethernet Port	1 Independent 100Mbps Ethernet Port
PoE	4 ports (IEEE802.3at / af) (4Mbps is recommended by channel)
Network Function	HTTP, HTTPS, TCP / IP, IPv4 / IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
Max User Access	128 users
SmartPhone	iPhone, iPad, Android
Interoperability	ONVIF 2.4, CGI Conformant
ELECTRICAL
Power Supply	DC48V / 1.5A
Power Consumption	NVR: <7.5W (Without HDD) PoE: Max 25.5w for single port, 50w in total
ENVIRONMENTAL
Operating Conditions	-10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F), 86 ~ 106kpa
Storage Conditions	-20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH
CONSTRUCTION

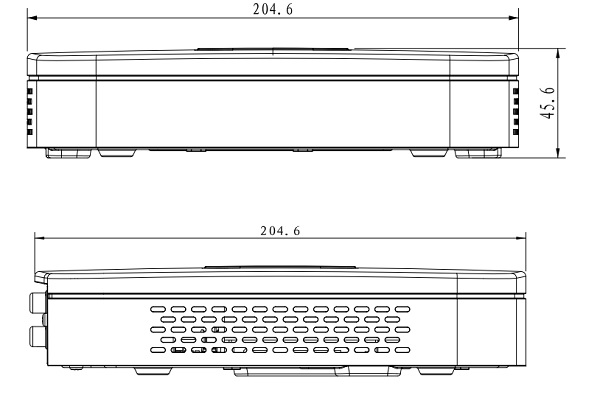

Dimensions	Smart 1U, 204.6mm × 204.6mm × 45.6mm
Net Weight	0.45kg (0.99 lb) (without HDD)
Gross Weight	1.5kg (3.31 lb) (without HDD)
CERTIFICATIONS
Certifications	CE: EN55032, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL60950-1 + CAN / CSA C22.2 No.60950-1
