Discontinued: Replaced with XVR5116H-4KL-I3

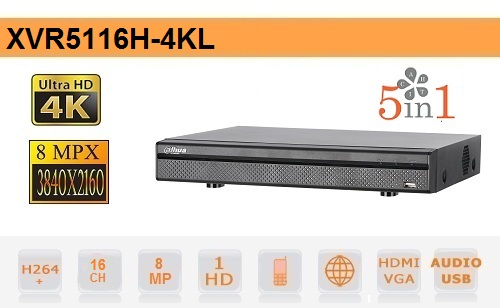

XVR5116H-4KL Discontinued: Replaced with XVR5116H-4KL-I3 Dahua XVR 16 Channels Hdcvi 4K TVI Analog 5in1 with resolution up to 4K ULTRA-HD UHD 8Megapixel and video compression up to H.265 + . 1 HDMI (up to 4k), 1 VGA, 2 USB, RS485, support for 1 HDD SATA 3.5 "Audio / Video (max 16TB.), Audio. With Artificial Intelligence, IoT Technology and Video Analysis

Reference: XVR5116H-4KL

Brand: Dahua

EAN: 8058258767307

MONITOR PROMO×


BUY A MONITOR AND GET CAMERAS FOR FREE
Discover promotions on the
Monitor 22" Dahua | LM22-H200
Monitor 43" Dahua | LM43-F200

OMAGGI DAHUA×


TELECAMERE DAHUA IN OMAGGIO!
Scopri qui come ottenerle!


XVR Dahua 16 Canali Hdcvi 4K Ahd Tvi Cvbs Ip H.265 Wizsense AI IVS SMD Plus

THIS PRODUCT IS OUT OF CATALOG!
GO TO THE NEW VERSION!

XVR 16 CHANNELS 5IN1 "HDCVI / HDTVI / AHD / ANALOG / IP" 4K ULTRA-HD 8MEGAPIXEL - DAHUA

Prodotto Marca Dahua 16 Channel Surveillance Recorder - Dahua
5 technologies in 1: "Hdcvi / Hdtvi / Ahd / Analog / Ip" - 4K ULTRA-HD up to 8Megapixel!
VGA, HDMI (up to 4k), 2 USB Ports, RS485 Port, 1 Input + 1 RCA Audio Output
Video Analysis and Smart Search - Up to 1 SATA 3.5 "HDD (8TB - Not included) - 24 months warranty

Product details

XVR Dahua 16 Canali 5in1 CVI/TVI/AHD/Analogico/IP 8MP 4K ULTRA HD

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI-HDTVI-AHD-ANALOG-IP )
Standard ONVIF Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras).

This XVR supports ONVIF version 2.4.2

Questo DVR supporta la video compressione H264+ dual-stream

This recorder supports the H.264 + video compression standard as well as the classic H.264

The H.264 + standard, can reduce bit rate and storage by up to 70%, without having to buy a new camera.

4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
Videoregistratore ad 16 canali

Resolutions available:

16 Channels HDCVI / HDTVI / AHD / ANALOG up to 4K ULTRA-HD 8Megapixel!

Hybrid combination:

16 Channels + 8 IP Channels up to 8Megapixel resolution

Resolution-to-frame ratio 1Kbps ~ 12288Kbps per channel

Questo DVR supporta telecamere per la videosorveglianza Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others ...
(operation with the models proposed here is to be verified from case to case)

This VCR supports Smart Search and Video Analysis functions such as lost / abandoned object detection, line crossing and face detection.

SMART SEARCH


This function allows to obtain, in a short time, various motion videos simply by drawing an area during playback. Very useful in case you understand an emergency

Questo dvr è compatibile con tutti i sistemi mobile: Android, Blackberry, Windows Mobile, Iphone, Symbian OS Compatible with all mobile devices: Android, Iphone, Ipad
Android, Iphone,
HD Hard Disk

Supports 1x SATA Audio / Video AV-GP SATA 3.5 "Hard Disk (8TB)

ATTENTION: Use specific audio / video discs on DVR systems.
For more information, read our dedicated article .

HARD DISK NOT INCLUDED

4K Risoluzione Ultra HD

HDMI port with resolution up to 4K

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

VGA output with resolution up to 1080P and Spot function

Full HD

This XVR features the Dahua proprietary Cloud p2p function

Questo DVR presenta ingressi / uscite audio This DVR has 1 Audio IN and 1 Audio OUT RCA
Porta USB IN This DVR features 2x USB ports (1 USB 2.0, 1 USB 3.0)
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This DVR has 1 RJ45 LAN Ethernet Port (1000M)
Porta RS485 RS 485 for PTZ commands (remotely controllable cameras)
Dynamic DNS: permette di raggiugere il DVR anche in caso di IP Dinamico Dynamic DNS: allows you to reach the DVR even in case of Dynamic IP
Questo dvr può sovrascrivere automaticamente il disco Ability to have the disk overwrite when full or have the disk overwrite after X days. DVR restart programming to ensure greater stability over time
Funzione Invio email

This DVR has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send a report via email

Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. Motion function. Recording starts when the camera detects motion.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Data sheet

Model: DVR XVR5116H-4KL
SYSTEM
Main Processor Embedded processor
Operating System Embedded LINUX
VIDEO & AUDIO
Analog Camera Input 16 Channel, BNC
HDCVI Camera 4K, 4MP, 1080P @ 25 / 30fps, 720P @ 50 / 60fps, 720P @ 25 / 30fps
AHD Camera 5MP, 4MP, 3MP, 1080P @ 25/30, 720P @ 25 / 30fps
TVI Camera 5MP, 3MP, 1080P @ 25/30, 720P @ 25 / 30fps
CVBS Camera PAL / NTSC
IP Camera Input 16 + 8 Channel, each channel up to 8MP
Audio In / out 1/1, RCA
Two-way talk Reuse audio in / out, RCA
RECORDING
Compression H.264 + / H.264
Resolution 4K, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Record Rate

Main stream: 4K (1 ~ 7fps); 5MP (1 ~ 12fps); 4MP / 3MP (1 ~ 15fps); 1080P / 720P / 960H / D1 / CIF / QCIF (1 ~ 25 / 30fps)

Sub stream: 960H (1 ~ 15fps); D1 / CIF / QCIF (1 ~ 25 / 30fps)

Bit Rate

1Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec

DISPLAY
Interface 1 HDMI, 1 VGA
Resolution

HDMI: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768

Multi-screen display

When IP extension mode not enabled: 1/4/8/9/16

When IP extension mode enabled: 1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

NETWORK
Interface 1 RJ-45 Port (1000M)
Network Function HTTP, TCP / IP, IPv4 / IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
VIDEO DETECTION AND ALARM
Trigger events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
PLAYBACK AND BACKUP
Playback 1/4/9/16
Search mode Time / Date, Alarm, MD and Exact Search (accurate to second)
Playback function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup mode USB Device / Network
STORAGE
Internal HDD 1 SATA Port, up to 8TB capacity

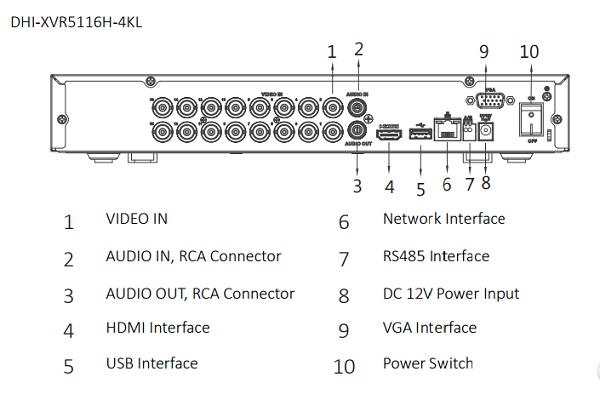

AUXILIARY INTERFACE
USB 2USB Ports (1 USB 2.0, 1 USB 3.0)
RS485 1 Port, for PTZ Control
ELECTRICAL
Power supply DC12V / 3A
Power consumption <15W (Without HDD)
CONSTRUCTION
Dimensions Mini 1U, 325mm × 255mm × 55mm (12.8 "x 10" x 2.2 ")
Net Weight 1.5kg (3.3 lb) (without HDD)
Gross Weight 2kg (4.4lb)
Installation Desktop installation
ENVIRONMENTAL
Operating Conditions 10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F), 0 ~ 90% RH
Storage Conditions 20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH
THIRD-PART SUPPORT
Third-part support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Dimensions Mini 1U, 325mm × 255mm × 55mm (12.8 "x 10" x 2.2 ")
CERTIFICATIONS
Third-part support FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1 / IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1

Further details


Risoluzioni a confronto

Download

Download the English brochure
