Video surveillance kit: DVR 5IN1 16 CHANNELS "HDCVI - AHD - TVI - CVBS - IP" 1080N - DAHUA + 3TB Hard Disk + Signs + 16x cameras (Bullet or Dome Varifocal Optical ) + UPS 850 LCD + 16 Video Power Cables (14x 15mt and 2 of 30mt) or 16 pairs of passive baluns + 16 pairs of male / female connectors + 16x 12V 1A power supplies (or 4x 12V 3A with splitter)

Reference: KIT-DH-BU-CX-16-30

Brand: Setik

€1,109.00

taxes included
Tax included
 Available
 Available
discover the available quantity

MONITOR PROMO×


BUY A MONITOR AND GET CAMERAS FOR FREE
Discover promotions on the
Monitor 22" Dahua | LM22-H200
Monitor 43" Dahua | LM43-F200


COMPLETE SURVEILLANCE KIT 16 CHANNELS 5IN1 + HD 3TB - SETIK
NEW SERIES OF COMPLETE HYBRID LINE KITS!

Last modified 13 JANUARY 2022

Made by Setik 16-channel video surveillance KIT - Setik
5IN1 DVR 16 CHANNELS HDCVI - AHD - TVI - CVBS - IP 1080N - DAHUA
1 Hard Disk 3TB Specific 3.5 ”Audio / Video + 16 Hybrid cameras with fixed and varifocal lens
Video surveillance signs - Uninterruptible power supply 850VA / 500W - Accessories - Ready to use

Product details

1x UPS 850VA / 500W


1x UPS 850VA / 500W

  • - Uninterruptible Power Supply (UPS)
  • - 850VA - 500W
  • - Model: UPS 850 LCD
  • - USB port for PC connection
  • - Windows 98 SE / ME / NT support
  • - 4.x / 2000/2003 / XP / Vista / 2008
  • - Reliability
  • - 24 Month Italian Warranty Immediate replacement
  • - Continuity of production

1X DAHUA 16 CHANNEL HYBRID DVR WIZSENSE PENTA-IBRID 1080N AI CODING VIDEO ANALYSIS DVR Tribrido a 16 Canali - 720P Hdmi e Allarme - Setik

1X DAHUA 16 CHANNEL HYBRID DVR WIZSENSE PENTA-IBRID 1080N AI CODING VIDEO ANALYSIS

Read all the features by clicking on the DVR link above and you will understand what it can offer, in particular:

-DVR 16 Channels Dahua Video Recorder

- 5in1 HDCVI / HDTVI / AHD / ANALOG / IP DVR

- up to 1080N (higher than 720p!)

- video compression up to H.265 +

- Max 64Mbps

- Support 1 SATA HDD up to 10TB

- HDMI, VGA

- RS485

- 2 USB

- ONVIF

- Cloud P2P

- 24 months warranty

1x HD 3TB Specific Audio / Video - Western Digital
Purple Version!

Hard Disk 3TB Audio / Video - Purple Version

Hard Disks for the CCTV world MUST have special features to ensure absolute reliability in a system that is always accessible 24/7 and with continuous flows typical of the Audio / Video world.

The discs we supply are uniquely designed for this sector, and from the main manufacturers in the sector.

Warning: DO NOT use any discs , read here why.

Recording time on discs:

Recording Time - H264 25fps -24H Continuos Recording - in GIGABYTE
Cameras CIF D1 720p 1080p
4 8.8 26.4 62 132.8
8 17.6 52.8 124 265.6
16 35.2 105.6 248 531.2
32 70.4 211.2 496 1062.4

1x Video Surveillance Sign A4 Size Retro Adhesive + 1x Video Surveillance Sign A5 Size Retro Adhesive

We remind you that the legislation requires the display, in the case of a video surveillance environment, of a correct indication in this regard.
It is necessary to report who makes the registration, for what purposes and who is responsible, the lack of this indication and subject to a fine, and in some cases even a criminal complaint.

ALL our KITS from today include a sign in A4 format and a sign in A5 format.
High print quality so as to make it also pleasing to the eye, no reference to the website.

Adhesive back


CARSICU_SETIK

8 Dahua 4in1 "ANALOG / AHD / HDCVI / HDTVI" cameras to be chosen from:

HAC-HFW1200T

or

HAC-HFW1200R-S5

8 Dahua bullet cameras 4in1 "ANALOG / AHD / HDCVI / HDTVI" to be chosen from:


HAC-HFW1200T-S5:
Dahua HAC-HFW1200T outdoor surveillance HD CVI camera, evolution of the HAC-HFW1220RM, bullet with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 1080P FULL-HD 2MP, 2.8mm lens and 1 / 2.7 "image sensor CMOS. 1 LED 30M Smart IR Illuminator, IP67 Protection, Day / Night (ICR), Multilingual OSD Menu, Aluminum


HAC-HFW1200R-S5
Dahua HAC-HFW1200R-S5 outdoor surveillance HD CVI camera, S5 bullet VERSION with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 1080P FULL-HD 2MP, 3.6mm lens and 1 / 2.7 "CMOS image sensor . 12 LED 20M Smart IR Illuminator, IP67 Protection, Day / Night (ICR), Multilingual OSD Menu, Plastic

8 SETIK 1080P cameras with Bullet or Dome varifocal optics

Telecamera Bullet 4in1 per la videosorveglianza. 1080p ottica varifocale 2.8-12mm - BLHYB2M2812IRW


Telecamera Dome 1080P 2.8-12mm Ibrida 4in1

8 Setik cameras with varifocal lens to choose from the HAC-HFW2241T-ZA bullet model:
HDCVI 5.0 new Dahua series Outdoor camera HAC-HFW2241T-ZA with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 2Megapixel 2MP 1080P FULL-HD resolution, motorized 2.7-13.5mm lens and 1 / 2.8 "CMOS sensor with technology Starlight. Smart IR 4 LED 80M Illuminator, WDR 120dB, Day / Night (ICR), Audio IN + Microphone



















or the dome model HAC-HDW1230T-ZA-POC :
Dahua outdoor camera HAC-HDW1230T-ZA-POC dome 4 in 1 (HDCVI / HDTVI / AHD / ANALOG 960H) 2Megapixel, 2.7-12mm varifocal lens with motorized zoom and 1 / 2.8 "CMOS sensor with STARLIGHT technology. Smart IR illuminator up to 60 meters, Day / Night (ICR), OSD, AWB, AGC, BLC, HLC, WDR digital, 2D-NR, Integrated microphone, IP67 protection, Dahua Technology aluminum.

16x Skeins of Power + Video Cable (14 of 15 meters + 2 of 30 meters )

The Video Cable + Power Supply Kits are expressly designed for the simplified installation of video surveillance systems. They are complete with connectors for both the Video part and the power part, so it is not necessary to lay the video and power cables separately but a single cable is sufficient.


ALTERNATIVE

We can supply 16 Pairs of BALUN HQ + 16 Pairs of Male Female Power

What's the benefit? That you can use the common network cable (CAT5) to carry the signal from the DVR to the cameras, and the audio / video / current will travel on it, and you can therefore have sections of the correct length, easily, without having to use cable of the NOT always correct size ; it is extremely comfortable!

NB: These baluns are able to reach high resolutions (up to 4Megapixel - AHD), long distances (200 / 250mt) and support other technologies such as HDTVI and HDCVI

BalunBalun

16x 12V 1A power supply units with single connection or 4x 12V 3A power supply unit with splitter for 16 cameras

or

ATTENTION: when ordering INDICATE what type of cameras you want (Bullet or Dome), if you prefer the video cable or the Balun, and the type of power supply required (4x 12V 3A or 16x 12V 1A) Thanks

Data sheet

Model: DVR XVR4116HS-I
SYSTEM
Main Processor Embedded Processor
Operating System Embedded LINUX
SDM Plus
Performance 8 channels
IA Search Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input 16 channels, BNC
HDCVI Camera 1080p @ 25/30 fps, 720p @ 50/60 fps, 720p @ 25/30 fps
AHD Camera 1080p @ 25/30 fps, 720p @ 25/30 fps
TVI Camera 1080p @ 25/30 fps, 720p @ 25/30 fps
CVBS Camera PAL / NTSC
IP Camera Input 16 + 2 channels: each channel up to 6MP
Audio In / Out 1/1, RCA
Two-way Talk Reuse audio in / out, RCA
Recording
Video compression AI Coding / H.265 + / H.265 / H.264 + / H.264
Resolution 1080N; 720p; 960H; D1; CIF
Record Rate Main Stream:
the 1st channel 1080N / 720p (1 fps – 25/30 fps), others 1080N / 720p (1 fps – 15 fps); 960H / D1 / CIF (1 fps – 25/30 fps)
Sub steram:
CIF (1 fps – 7 fps)
Video Bit Rate 32 kbps – 4096 kbps per channel
Record Mode Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
Record Interval 1 min – 60 min (default: 60 min), Pre-record: 1 sec – 30 sec, Post-record: 10 sec – 300 sec
Audio Compression G.711A; G.711U; PCM
Audio Sample Rate

8 KHz, 16 bits per channel

Audio Bit Rate 64 kbps per channel
Display
Interface 1 HDMI; 1 VGA
Resolution 1920 × 1080; 1280 × 1024; 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16
OSD Camera title; Time; Video loss; Camera lock; Motion detection; Recording
Network
Interface 1 RJ-45 Port (100MB)
Network Function HTTP; HTTPS; TCP / IP; IPv4 / IPv6; Wifi; 3G / 4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone
iPhone; iPad; Android
Interoperability ONVIF 16.12, CGI Conformant
Playback and Backup
Playback 1/4/9/16
Search Mode Time / Date, Alarm, MD and Exact Search (accurate to second)
Playback function Play; Pauses; Stop; Rewind; Fast play; Slow Play; Next File, Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode USB Device / Network
Storage
Internal HDD 1 SATA port, up to 10 TB capacity
Auxiliary Interface
USB 2 USB ports (USB 2.0)
RS485 1 port, for PTZ control
Electrical
Power Supply DC 12V / 2A
Power Consumption
(without HDD)
<10W
Construction
Dimensions Compact 1U, 260.0 mm × 237.9 mm × 47.6 mm
(10.24 '' × 9.37 '' × 1.87 '')
Net Weight
(without HDD)
1,042 kg (3.00 lb)
Gross Weight 1.48 kg (3.26 lb)
Installation Desktop installation
ENVIRONMENTAL
Operating Conditions -10 ° C to + 55 ° C (+ 14 ° F to + 131 ° F), 10% –90% (RH)
Storage Conditions -20 ° C to + 70 ° C (-4 ° F to + 158 ° F), 0% –90% (RH)
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
CERTIFICATIONS
Certifications

FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1 / IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024
UL: UL 60950-1

Further details

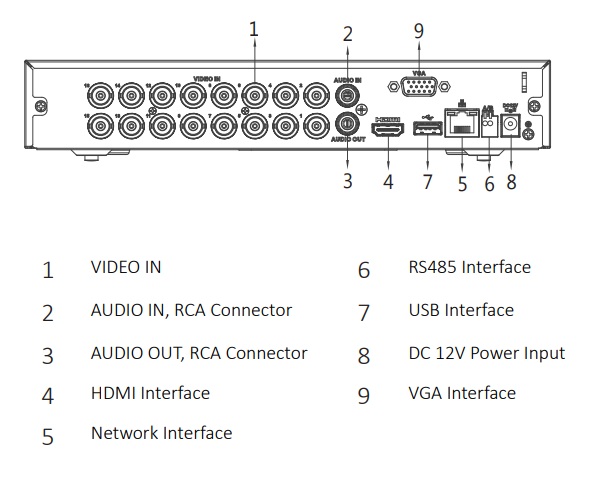

Dettaglio posteriore del dvr XVR4116HS-X



Download

Downloadable documents:

Currently not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
