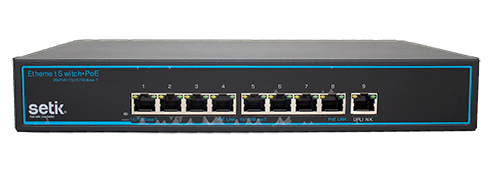

SW8 + 1POE Setik Switch 8 PoE ports + 1 UpLink port with range up to 100 meters, Standard PoE 802.3af / at, 10 / 100Mbps, Maximum power 150W , transmission on cat5 / 5e / 6 cable, PoE power at af 15.4 / at 30W (single door), status led.



Reference: SW8+1POE

Brand: Setik

EAN: 8056450371506

€72.47

€120.78 -40%
taxes included
Tax included
 Available in 15 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%



SWITCH 8 POE DOORS + 1 UPLINK DOOR - 10 / 100MBPS 150W - UP TO 100 METERS - SETIK

Made by Setik Switch 8 PoE ports + 1 Uplink port - Setik
Coverage up to 100 meters - Standard 802.3af and 802.3at support , Maximum power 150W
Transmission on cat5 / 5e / 6 cable - status led

Product details

Switch 8 porte PoE + 1 porta Uplink fino a 100metri 150W
  • Type: Switch 8 Doors - Setik
  • 8 PoE ports + 1 UpLink port
  • Standard 802.3af and 802.3at support
  • Standard 10 / 100Mbps
  • Led with status indicators
  • Maximum power 150W (AF mode: 15.4W / AT mode: 30W for single port)
  • Coverage up to 100 METERS!
  • Transmission on cat5 / 5e / 6 cable
  • Dimensions (LxWxH): 284x180x41mm
  • Black colour
  • 24 Months Italian Warranty

Data sheet

Model SW8 + 1POE
System
Model

8 ports PoE Ethernet Switch (8 + 1 uplink)

Power

Power Adapter Voltage: AC 110V-240V
Consumption 150W

Network port

POE Ethernet Port: 1-8 port: 10 / 100Mbps
Ethernet port: Uplink port: 1 * 10 / 100Mbps

Transmission Distance

1-8 port: 100M
Uplink port: 0-100m

Transmission Medium

Cat5 / 5e / 6 standard network cable

Network Standard

IEE 802.3 / 802.3u, IEEE 802.3x, IEEE 802.1p, IEE 802.3az

Switching Capacity

1.8Gbps

Packet Forwarding Rate

1.34Gbps

MAC Table

2K

POE Standard

IEEE 802af / at

POE Power Supply Type

End-Span (1/2 +; 3 / 6-)

POE Power

af = 15.4W / at = 30W (every port)

PoE Ethernet LED indicator

Power: 1 red light indicates that the power normal work

POE: 8 yellow lights indicate that the POE is power on;
9 green lights indicate that the Ethernet link and act;

Surveillance Module Ligh

1pcs (Green), green indicates Camera

Working Temperature

0 ° C-55 ° C

Relative Humidity

20-95%

Storage Temperature

-20 ° C-70 ° C

Dimension (L x W x H)

284x180x41mm

Color

Black

Weight

1500g

Stability MTBF

> 30000h

Further details

...to know more!

PoE products are essential for powering networked peripherals. The currently existing standards are 802.3af and 802.3at, as well as a lot of NON-STANDARD products: make sure you only buy products that fall within these standards so that we can guarantee any compatibility in the present and in the future. Setìk imports, distributes and guarantees its products suitable for supporting any PoE peripheral.

Download

Download the brochure in English (Coming soon)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
