DVR 16-Channel 5in1 AHD / CVI / TVI / IP / ANALOG 4Megapixel + HDD

DVR 16-Channel 5in1 AHD / CVI / TVI / IP / ANALOG 4Megapixel + HDD
SUPER-SALES -80%

SUPER PROMO SETIK | DVR Surveillance Video Recorder 5in1 AHD / CVI / TVI / IP / ANALOG, 16 Channels up to 4MegapixelVGA, HDMI e BNC, 4 Audio Input + 1 output, 3 USB Port, RS485. Support WiFi Key Setik, P2P, up to 2HDD SATA 3,5". Super Gift: 320GB Refurbished Hard Drive + CCTV Signs ST5X1614

Reference: ST5X1614

Brand: Setik

EAN: 8058258763262

€111.75

€558.76 -80%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity


Cloud service

As of January 2021, the terms of the cloud service for this product have changed.
The cloud service will now be chargeable. Available subscriptions:
1 year > $4.90
3 years > $9.90

DVR VIDEO RECORDER 16-CHANNEL - 5 TECHNOLOGIES IN 1 - 4 MEGAPIXEL - SETIK
SUPER PROMO SETIK - WHILE STOCKS LAST!

Product Branded Setik DVR 16-Channel - Setik
5in1 ( AHD - CVI - TVI - IP - ANALOG) - Up to 16-Channel 4Megapixel
Up to 2 HDD SATA 3.5" (4TB) - Support Wi-Fi Key - Cloud P2P - Audio IN/OUT
DVR + 320GB 3,5" Refurbished Hard Drive + CCTV Signs for free!

Product Details

DVR 16-Channel 5in1 - Setik

320GB Refurbished Hard Drive…included in the DVR!

Purchasing this DVR, you will receive a SATA 3,5’’ 320GB HARD DRIVE!

CAPACITY 320GB | 3.5 "DIMENSION | REFURBISHED WITH 6 MONTH WARRANTY

Available brands: SEAGATE and many others (Send at our choice)

1x Surveillance sign A4 Size Retro Sticker + 1x Surveillance sign A5 Format Retro Sticker

We remind you that in the case of a CCTV environment, the law requires a correct indication of this.
It is necessary to report who carries out the registration, for what purposes and who is responsible, for the lack of this indication and subject to a fine, and in some cases even for a criminal complaint.

ALL of our KITs now have a sign in A4 format and a sign in A5 format.
High print quality so as to make it even more pleasing to the eye, no reference to the website.

Retro sticker


CCTV sign - UK

5 Technologies in 1!
This DVR support 5 different Technologies (AHD - HDCVI - HDTVI - IP - ANALOG)
H264 Standard This DVR has H264 Standard. Optimised for Mobile

This DVR has 16 canali

Résolution up to 4 MEGAPIXEL!


Available Resolutions:

ANALOG (AHD/CVI/TVI)

Up to 16 Channels @4Megapixel



IP
Up to 4 Channels @5Megapixel



ANALOG+IP NETWORK

12 Channels @3Megapixel + 4 Channels IP Network @3Megapixel


Example of AHD resolution 720P Second example of AHD technology @720P


This DVR is compatible with mobile systems: Android, Blackberry, Windows Mobile, Iphone, Symbian OS Comaptible with Mobile devices: Android,  Iphone,
Android, Iphone,
This DVR can be viewd remotely. Up to 10 users simultaneously

This DVR allows remote view

Support Cloud Feature

This DVR presents the Cloud function with Goolink application downloadable directly on your smartphone via Google Play or AppleStore


Download here

Applicazione Goolink Cloud

Screen app Goolink

HD Hard Disk

Supporta 2x HDD SATA Audio / Video AV-GP SATA 3.5" (4TB)

ATTENTION: on DVR systems use HDD specific for audio/video.
To learn more, read our dedicated article.





WIFI Support

This DVR support Wi-Fi Keys
Click qui to discover all the features

USB FLASH DRIVE

It has 1x Video BNC Output
This DVR has 1 porta HDMI This DVR has 1x HDMI port. Resolution up to 1920x1080 (FULL-HD)
Provided with VGA for monitor connection.

1920x1080
This DVR has ingressi / uscite audio This DVR has 4 Audio IN and 1 Audio OUT
USB port IN This DVR has 3x Porte USB
This DVR has 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This DVR has 1 Porta RJ45 LAN Ethernet
RS485 port RS 485 for PTZ
This DVR can be overwiewed Possibilità di far sovrascrivere sul disco quando è pieno o far sì che il disco sovrascriva dopo X giorni. Programmazione riavvio DVR per garantire maggior stabilità nel tempo
E-mail sender feature

This DVR have e-mail sender feature
Possibility to overwrite the hard disk when full or to set automatical delete after a certain number of days.



Mouse included in the package

Mouse included in the package

This Device is multi-language ( english, french, italian etc...)

Cameras can be managed directly from the DVR ( coaxial controll from dvr)

Cd software included

Dedicated Software on CD for DVR management

English instruction manual included

This product is covered by 24-Month

Product covered by 24-Month Warranty

Technical Features

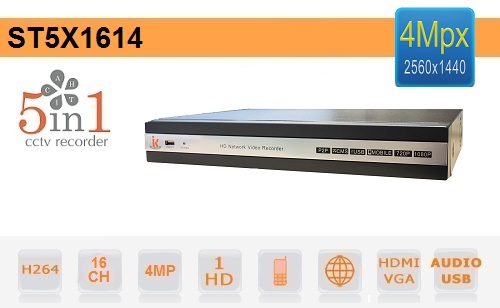

Model: DVR ST5X1614
VIDEO
Input 16 channel BNC
Output HDMI, VGA, BNC
AUDIO
Audio Input 4 channel,RCA
Audio Output 1 channel ,RCA
RECORDING
Video/Audio Compression H.264
Standard Supported

Analog (AHD - HDTVI - HDCVI)
IP Onvif

Resolutions

ANALOG (AHD-HDTVI-HDCVI)
16-channel @4MP 6fps
16-channel @3MP 8fps

16-channel @2MP 11fps



IP
4-channel @5MP
8-channel @3MP
16-channel @2MP



ANALOG+IP

12-channel @3MP + 4-channel IP @3MP

8-channel @3MP + 8-channel IP @3MP

4-channel @3MP + 12-channel IP @3MP

Encode config

4M/3M

Playback

4ch 4M

NETWORK
Ethernet RJ-45 port
3G/WIFI Yes / Yes (WIFIKEYD)
HARD DISK
Hard Disk 2 SATA ports (4TB)
HDD Management HDD hibernation technology, HDD faulty alarm
AUXILIARY INTERFACE
Usb Interface 3 ports, For mouse control & backup
GENERAL
Power Supply 12V/5A - Power Supply AC 100~240 V, 50/60 Hz
Power Consumption less than 10W(without HDD)
Working Environment -0 ~+55°C / 10~90%RH / 86~106kpa
Dimension (WxDxH) 33,5cm(L)x25cm(P)x5cm(h)
Weight 1.0KG(without HDD)

Further Details

DVR 16 Channels 5in1 AHD / HDCVI / HDTVI / ANALOGICO / IP Setik

Compared Resolution

Download

Download the Depliant ( not available )
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
