DVR 8 Channel CVI AHD TVI ANALOGIC IP 1080N H.265 + Dahua

andard H265 for video compression!

DAHUA X SERIES

If you want to learn more about this new series of XVR 5 in1 Dahua recorders , read the article we wrote!

Click here

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI / AHD / TVI / ANALOG / IP ) Onvif is by far the most important Standard in the IP world.
Being Onvif guarantees a wide range of IP compatible devices among them (dvr / cameras).

This XVR supports the ONVIF version 16.12



Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses an adaptive scene coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for providing high quality video without tiring the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

New resolution! 1080N (1080x960)

Reduces movie storage space to almost half of a 1080P, while maintaining good quality





Registration Resolution:

On the 1st Channel 1080N / 720P (1 ~ 25fps), the other 1080N / 720P (1 ~ 15fps)

8 Channels + 2 IP Channels up to 6Megapixels

Incoming bandwidth Max 40Mbps

Dahua has released the new 4.0 graphical interface!



GUI-XVR 4.0:

After more than a year of design and development, the new generation graphical interface, XVR4.0, has been released.

Beautiful and simple, XVR4.0 ensures a perfect display.

Color schemes, flat interface and visual icons present a user-friendly experience.

Functional modules and integrated logic to simplify user operation and improve product competitiveness

This XVR supports WIFI keys
Click here to discover its functions

This DVR supports the 3G 3GEY key.
Click here to discover its functions.

Supports cameras from various brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP

Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others ...

(operation with the models proposed here is to be verified from case to case)

This XVR presents the Cloud P2P function through:



EASYVIEWER and DMSS





Supports 1x SATA Audio / Video Hard Disk up to 6 TB! ( NOT INCLUDED ! )

ATTENTION: use specific audio / video discs on DVR systems.
For more information, read our dedicated article .



SMART SEARCH



This function allows you to quickly obtain various video motion by simply drawing an area during playback. Very useful in case you understand an emergency

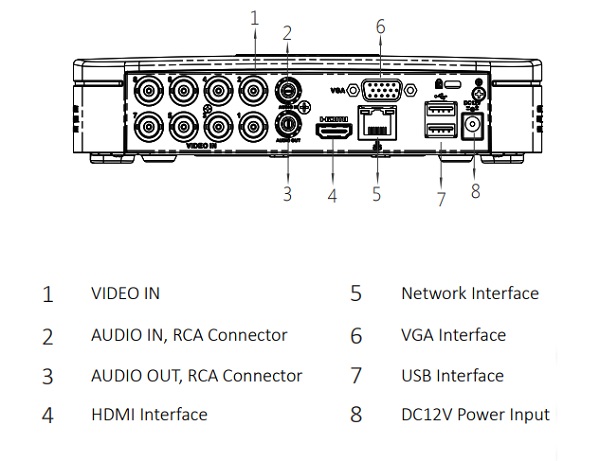

This XVR has 2x USB Port (USB 2.0) This DVR has 1x HDMI port in addition to VGA This XVR has 1 input + 1 Audio Output 1 RJ45 port (100M) Dynamic DNS: allows to reach the device even in case of Dynamic IP This VCR has email sending.
In the event of events (camera obfuscation, signal cutting, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP Motion function. Recording starts when the camera detects motion.

This product is covered by a 24 month warranty.

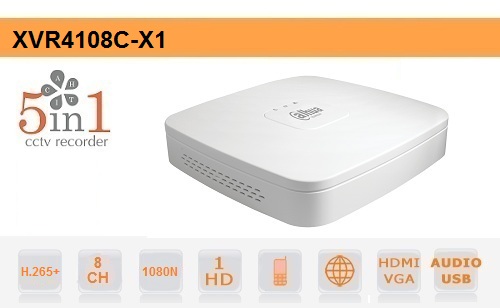

Model: DVR	XVR4108C-X1
SYSTEM
Main Processor	Embedded processor
Operating System	Embedded LINUX
VIDEO & AUDIO
Analog Camera Input	8 Channel, BNC
HDCVI Camera	1080P @ 25 / 30fps, 720P @ 25 / 30fps
AHD Camera	1080P @ 25/30, 720P @ 25 / 30fps
TVI Room	1080P @ 25/30, 720P @ 25 / 30fps
CVBS Camera	PAL / NTSC
IP Camera Input	8 + 2, each channel up to 6MP
Audio In / out	1/1, RCA
Two-way talk	Audio reuse in / out, RCA
RECORDING
Compression	H.265 + / H.265 / H.264 + / H.264
Resolution	1080N, 720P, 960H, D1, CIF
Record Rate	Main Stream: the 1st channel 1080N / 720P (1 ~ 25 / 30fps), others 1080N / 720P (1 ~ 15fps); 960H / D1 / CIF (1 ~ 25 / 30fps) Sub stream: CIF (1 ~ 7fps)
Bit Rate	32Kbps ~ 4096Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Audio Compression	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Audio Sample Rate	8KHz, 16 bits Per Channel
Audio Bit Rate	64Kbps Per Channel
DISPLAY
Interface	1 HDMI, 1 VGA
Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen display	When IP extension mode not enabled: 1/4/8/9

When IP extension mode enabled: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

NETWORK Interface 1 RJ-45 Port (100M) Network Function HTTP, HTTPS, TCP / IP, IPv4 / IPv6, Wi-Fi, 3G / 4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.) Max User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 16.12, CGI Conformant VIDEO DETECTION AND ALARM Trigger events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis PLAYBACK AND BACKUP Playback 1/4/9 Search mode Time / Date, Alarm, MD and Exact Search (accurate to second) Playback function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Backup mode USB Device / Network STORAGE Internal HDD 1 SATA Port, up to 6TB capacity AUXILIARY INTERFACE USB 2 USB 2.0 RS485 N / A ELECTRICAL Power supply DC12V / 1.5A Power consumption <10W CONSTRUCTION Dimensions Smart 1U, 205mm × 211mm × 45mm (8.1 "× 8.3" × 1.8 ") Net Weight 0.52kg (1.1lb) Gross Weight 1.1kg (2.4lb) Installation Desktop installation ENVIRONMENTAL Operating Conditions -10 ° C ~ + 45 ° C (+ 14 ° F ~ + 113 ° F), up to 55 ° C / 131 ° F with case fan, 10 ~ 90% RH Storage Conditions -20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH THIRD-PART SUPPORT Third-part support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more CERTIFICATIONS Third-part support

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1 / IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
