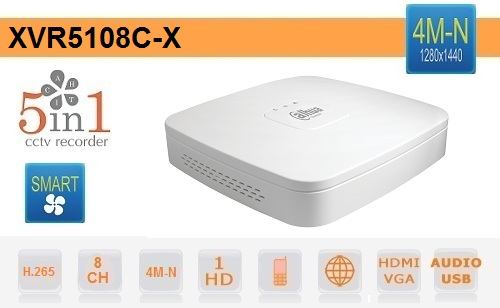

DVR 8 Channels HD CVI AHD TVI ANALOGUE IP 4M-N Dahua


DVR Dahua 8 Channel XVR video recorder with 5 technologies in 1 (HDCVI + AHD + TVI + ANALOG + IP) and resolution up to 4M-N (Half of 4MP 1280x1440 - Higher than 1080P!) / 1080P in real time or 1080N / 720P in real time . Video compression up to H.265 + , VGA and HDMI, 2 USB ports, support for 1 x SATA HDD 3.5 " up to 10TB! Video Analysis, Smart Search, Cloud P2P. XVR5108C-X

Reference: XVR5108C-X

Brand: Dahua

€115.72

€192.87 -40%
taxes included
Tax included
 Available
 Available

LO HA TROVATO A MENO?

Ci scriva dove e le sconteremo la differenza fino a fine mese!

meno


XVR DAHUA 8 CHANNELS WITH 5 TECHNOLOGIES IN 1 - HDD SUPPORT UP TO 10TB!

Prodotto Marca Dahua DVR 8 Channels 5in1 - Dahua
HDCVI / AHD / TVI / ANALOG / IP / Up to 4M-N (Half of 4MP - Higher than 1080P!)
Video Compression up to H.265 + / Video Analysis / Smart Search / Smart Fan / Audio
Support 1HDD up to 10TB! - Cloud P2P - Standard ONVIF - 24 months warranty

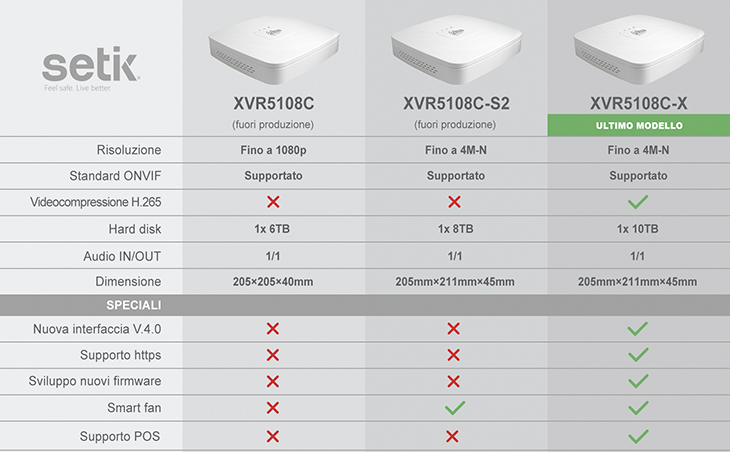

Comparazione XVR5108C XVR5108C-S2 XVR5108C-X

Product details

DVR 8 Canali 5in1 4M-N Dahua Audio Smart 1U

If you want to learn more about this new series of XVR 5 in1 Dahua recorders , read the article we wrote!

Click here


- Up to 90% bandwidth savings

- Reduction of storage space

- Longer recording times on analog surveillance systems with the same storage space.




Standard di Video Compressione H.265+








8 Channels 4M-N / 1080P @ 15fps

8 Channels 1080N / 720P @ 25fps



8 Channels + 4 IP Channels up to 6Megapixels


Incoming bandwidth Max 48Mbps

4M-N means half of 4Megapixel.

The human visual system turns out to be more sensitive to vertical resolution, which is why it was thought to have a resolution that was higher than 1080P FULL-HD but also exploited the best qualities of 4Megapixel.

With the 4M-N resolution, the 1440px of the 4Megapixel resolution are replicated vertically while in the horizontal we will have the 4M-N or the half of 4MP.

A higher resolution than FULL-HD but with the advantages of 4Megapixel!





GUI-XVR 4.0:

After more than a year of design and development, the new generation graphical interface, XVR4.0, has been released.

Beautiful and simple, XVR4.0 ensures a perfect display.

Color schemes, flat interface and visual icons present a user-friendly experience.

Functional modules and integrated logic to simplify user operation and improve product competitiveness

Nuova interfaccia dahua 4.0

Possibility to search for pos by date or transaction


Possibilità di collegamento dispositivi POS

Funzione POS



VIDEO ANALYSIS (IVS)

- Line crossing

- Objects abandoned / lost

- Moving objects



SMART SEARCH


This function allows you to quickly obtain various video motion by simply drawing an area during playback. Very useful in case you understand an emergency

Chiavetta usb per connessione wifi

The SMART FAN is a smart fan that can turn on or off automatically based on

CPU temperature. This function can effectively reduce the fan noise a
provide a better user experience while at the same time extending the life of the fan.



(operation with the models proposed here is to be verified from case to case)



EASYVIEWER and DMSS


Cloud P2P App DMSS Dahua






ATTENTION: use specific audio / video discs on DVR systems.
For more information, read our dedicated article .

Articolo Blog Setik

DAHUA X SERIES

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI / AHD / TVI / ANALOG / IP )
Standard ONVIF Onvif is by far the most important Standard in the IP world.
Being Onvif guarantees a wide range of IP compatible devices among them (dvr / cameras).

This XVR supports the ONVIF version 16.12

H265+ Video Compressione
This XVR provides compression standards up to H.265 +

H.265 +: What are the advantages?

Questo DVR presenta 8 canali

Registration Resolution:

New resolution! 4M-N (1280x1440)

Interfaccia grafica Dahua

Dahua has released the new 4.0 graphical interface!

Collegamento a dispositivi POS

Possibility to connect POS devices, obtaining all the information in the channel overlay.

This VCR supports Video Analysis (IVS) on all channels (up to 10 rules per channel (Max 2)), Face Detection (only on the first channel) and Advanced Search (Smart Search)

WIFI Support

This XVR supports WIFI keys
Click here to discover its functions

Articolo Dedicato al mondo dei nuovi DVR/NVR Ibridi Setik This DVR supports the 3G 3GEY key.
Click here to discover its functions.
Chiavetta 3G 3GKEY compatibile con DVR NVR Setik/Dahua provvisti di CLOUD GOOLINK 2a Generazione

SMART FAN

Questo DVR supporta telecamere per la videosorveglianza

Supports cameras from various brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others ...

Questo DVR supporta la funzione Cloud 2P2 proprietario Dahua

This XVR presents the Cloud P2P function through:

Compatibile con Hard Disk SATA Audio/Video AV-GP

Supports 1x SATA Audio / Video Hard Disk up to 10 TB! ( NOT INCLUDED ! )

Questo DVR presenta 2 porte USB This XVR has 2x USB Port (USB 2.0)
Questo DVR presenta 1 ingresso HDMI This DVR has 1x HDMI port in addition to VGA
Questo DVR presenta ingressi / uscite audio This XVR features 1 Audio IN and 1 Audio OUT RCA
1 RJ45 port (100M)
Dynamic DNS: permette di raggiugere il DVR anche in caso di IP Dinamico Dynamic DNS: allows to reach the device even in case of Dynamic IP
In caso di eventi (offuscamento telecamera, taglio segnale, motion, disco rotto, problemi di rete etc...), è in grado di inviare una segnalazione via email,una notifica sonora oppure caricare video & screeshot tramite FTP This VCR has email sending.
In the event of events (camera obfuscation, signal cutting, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP
Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. Motion function. Recording starts when the camera detects motion.
Questo DVR presenta garanzia italiana 24 mesi

This product is covered by a 24 month warranty.

Data sheet

Sub steram: D1 / CIF (1 ~ 15fps)

When IP extension mode enabled : 1/4/8/9/16

CE: CE-LVD: EN 60950-1 / IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1

Model: DVR XVR5108C-X
SYSTEM
Main Processor Embedded processor
Operating System Embedded LINUX
VIDEO & AUDIO
Analog Camera Input 8 Channel, BNC
HDCVI Camera 4MP, 1080P @ 25fps, 720P @ 50fps, 720P @ 25fps
AHD Camera 4MP, 1080P @ 25, 720P @ 25fps
TVI Room 4MP, 1080P @ 25, 720P @ 25fps
CVBS Camera PAL / NTSC
IP Camera Input 8 + 4 Channel, each channel up to 6MP
Audio In / out 1/1, RCA
Two-way talk Audio reuse in / out, RCA
RECORDING
Compression H.265 + / H.265 / H.264 + / H.264
Resolution 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate

Main stream: 4M-N / 1080P (1 ~ 15fps); 1080N / 720P / 960H / D1 / CIF (1 ~ 25 / 30fps)

Bit Rate

32Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC (only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bits Per Channel

Audio Bit Rate

64Kbps Per Channel

DISPLAY
Interface 1 HDMI, 1 VGA
Resolution

1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen display

When IP extension mode not enabled : 1/4/8/9

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

NETWORK
Interface 1 RJ-45 Port (100M)
Network Function HTTP, HTTPS, TCP / IP, IPv4 / IPv6, Wi-Fi, 3G / 4G , UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
VIDEO DETECTION AND ALARM
Trigger events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
PLAYBACK AND BACKUP
Playback 1/4/9
Search mode Time / Date, Alarm, MD and Exact Search (accurate to second)
Playback function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup mode USB Device / Network
STORAGE
Internal HDD 1 SATA Port, up to 10TB capacity
AUXILIARY INTERFACE
USB 2 USB 2.0
RS485 N / A
ELECTRICAL
Power supply DC12V / 2A
Power consumption <10W
CONSTRUCTION
Dimensions Smart 1U, 205mm × 211mm × 45mm (8.1 "× 8.3" × 1.8 ")
Net Weight 0.5kg (1.2lb)
Gross Weight 1.1kg (2.2lb)
Installation Desktop installation
ENVIRONMENTAL
Operating Conditions -10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F), 10% ~ 90% RH
Storage Conditions -20 ° C ~ + 70 ° C (-4 ° F ~ + 158 ° F), 0 ~ 90% RH
THIRD-PART SUPPORT
Third-part support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
CERTIFICATIONS
Third-part support

FCC: Part 15 Subpart B
