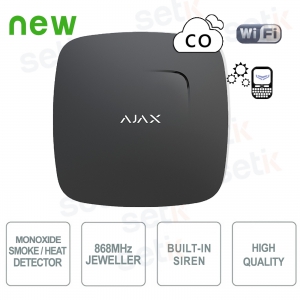

Ajax FireProtect Plus Jeweller Black Wireless Smoke, CO, and Temperature Detector

Ajax FireProtect Plus Jeweller Black Wireless Smoke, CO, and Temperature Detector

 
BEST PRICE

38106.16.BL1 # 38106 | Ajax FireProtect Plus Jeweller black is a wireless indoor detector designed for comprehensive fire protection, thanks to the simultaneous detection of smoke, carbon monoxide and dangerous temperature increases. It uses encrypted Jeweller communication for fast and reliable notifications up to 1,300 meters and integrates the HazeFlow algorithm to reduce false alarms. The integrated CO sensor , 85 dB buzzer , alarm synchronization between multiple detectors and battery life of up to 4 years with pre-installed batteries ensure continuous safety even in autonomous mode, while the elegant black design makes it ideal for modern and professional environments. Ajax

Technical Data Sheet

referencia : 38106.16.BL1

brand : Ajax Systems

EAN: 4823114014864

Disponibilità: 53

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

38106.16.BL1 | WIRELESS FIRE DETECTOR WITH HEAT AND SMOKE SENSORS - REPLACEABLE BATTERIES

Ajax

The Ajax FireProtect Plus Jeweller, 38106.16.BL1, black is a wireless indoor detector designed to provide comprehensive and intelligent fire protection, thanks to the combined detection of smoke, carbon monoxide and dangerous temperature increases. Encrypted Jeweller radio communication ensures fast and reliable notifications up to 1,300 meters, while the HazeFlow algorithm reduces false alarms caused by steam or dust. Equipped with a built-in 85 dB buzzer , support for interconnected alarms , autonomous operation even without a hub and a battery life of up to 4 years with pre-installed batteries , it represents an advanced and elegant solution, ideal for residential and professional environments with a modern design.

Main specifications:

- Combined detection of smoke and rapid temperature rise

- Encrypted Jeweller wireless communication up to 1,300 m

- HazeFlow algorithm for false alarm prevention

- Built-in 85 dB audible alarm

- Fire alarms interconnected between multiple detectors

- Up to 4 years of battery life with pre-installed batteries, black color

Further details

✅ Jeweler Communication:
Ajax FireProtect Plus Jeweller uses encrypted Jeweller radio technology for stable and secure two-way communication with Ajax hubs, ensuring instant notifications, device authentication, spoofing protection, and a wireless range of up to 1,300 meters in open terrain.
✅ Sensor type:
The detector integrates a multi-sensor system consisting of a photoelectric smoke sensor , a thermal sensor and a carbon monoxide (CO) sensor , offering complete control of the main risks related to fires and dangerous emissions.
✅ Smoke Detection:
The photoelectric sensor detects the presence of smoke early, while the intelligent HazeFlow algorithm analyses data in real time to distinguish between real danger and non-critical conditions, significantly reducing false alarms.
✅ Dangerous temperature detection:
The device constantly monitors the ambient temperature and activates the alarm if the threshold of +59°C is exceeded or if there is a rapid increase of 30°C in 30 minutes , ensuring an immediate response even in rapidly developing fires.
✅ Additional features :
FireProtect Plus Jeweller supports interconnected fire alarms , includes a built-in 85 dB buzzer , enables automatic and manual control of the smoke chamber , autonomous operation without a hub and full management via the Ajax app.
✅ Anti-sabotage protection :
The detector is equipped with an anti-tampering device that immediately signals any attempts at unauthorised opening or removal, increasing the overall security level of the system.
✅ Power supply:
The power supply is provided by pre-installed batteries (2×CR2 and 1×CR2032) which guarantee up to 4 years of autonomy , ensuring operational continuity and reducing maintenance interventions to a minimum.

Technical data sheet

38106.16.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,300 m
up to 4,200 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Sensitive elements smoke sensor
heat sensor
Smoke detection
Sensitive element photoelectric sensor
False alarm prevention The HazeFlow software algorithm checks for smoke before activating the alarm. The system will ignore the first triggering and raise an alarm if the device detects the smoke again after 30 seconds during the second check.
Dangerous temperature detection
Sensitive element thermistor
High temperature alarm at temperatures above 60 °C
at temperatures above 140 °F
Temperature spike alarm when the temperature rises more than 30 °C in 30 minutes or less
when the temperature rises more than 86 °F in 30 minutes or less
Additional features
Built-in siren 85 dB volume at a distance of 3 meters
85 dB volume at a distance of 9 ft
Sound notification of alarms. Active until the reason for triggering is eliminated or until the user disables the notification.
Interconnected fire detectors alarm All fire detectors in the system turn on built-in sirens if at least one detector registers an alarm. An interconnected fire detectors alarm is activated within one “hub–detector” polling interval.
Indication
  • LED
  • sound
The indication shows the detector status and alarms.
Touch button on the detector's front panel In normal mode, pressing the button starts the smoke chamber test. In the case of an alarm or malfunction, pressing the button turns off the detector sound notification.
Recommendations The device is designed for indoor use only.
Sabotage protection
Tampering alarm Notifications of attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against spoofing device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Battery 2 × CR2 (pre-installed)
The main power supply. Up to 4 years of battery life.
1 × CR2032 (pre-installed)
The backup power supply.
Enclosure
Color Black
Dimension 132 × 132 × 31 mm
5.2″ × 5.2″ × 1.22″
Weight 220 g
7.76 oz
Operating temperature range from 0 °C to +65 °C
from 32 °F to 149 °F
Operating humidity up to 80%
Protection class IP40
Complete set FireProtect Plus Jeweler
SmartBracket mounting panel
Installation kit
2 × CR2 battery (pre-installed)
CR2032 backup battery (pre-installed)
Quick start guide
Warranty 24 months
