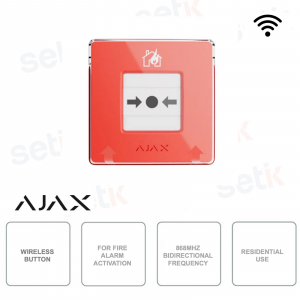

Ajax ManualCallPoint Jeweller Red – Wireless Fire Alarm Manual Button

Ajax ManualCallPoint Jeweller Red – Wireless Fire Alarm Manual Button

 
BEST PRICE

60815.171.NC1 # 60815 | Ajax ManualCallPoint Jeweller red is a wireless manual button for immediate fire alarm activation, designed to ensure rapid intervention in emergency situations. With a simple press, it activates an immediate fire alarm , programmable automation scenarios , and instant reporting to apps and monitoring systems. Jeweller radio communication up to 1700 m ensures reliability and rapid event transmission. Equipped with a transparent front cover to prevent accidental activation , anti-sabotage protection , and status LEDs , it combines safety and control. Battery power with up to 7 years of battery life and reset via a dedicated key make it ideal for professional and public environments. Ajax

Technical Data Sheet

referencia : 60815.171.NC1

brand : Ajax Systems

EAN: 4823114045219

Disponibilità: 2

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

60815.171.NC1 | WIRELESS RESETTABLE BUTTON FOR MANUAL ACTIVATION OF THE FIRE ALARM WITH PROGRAMMABLE SCENARIOS

Ajax

The Ajax ManualCallPoint Jeweller, 60815.171.NC1, red, is a certified wireless manual button for immediate fire alarm activation, ideal for public, commercial, and industrial buildings. A simple press instantly activates the fire alarm and triggers programmable automation scenarios such as sirens, exit unlocking, and emergency lights. Jeweller radio communication up to 1700 m ensures fast, secure, and reliable transmission. The device is designed to prevent accidental activation thanks to its transparent front cover , integrates anti-sabotage protection , and is battery-powered for up to 7 years , ensuring operational continuity and maximum security.

Main specifications:

- Immediate manual activation of the fire alarm

- Programmable automation scenarios for evacuation and safety

- Jeweler wireless communication up to 1700 m

- Transparent cover to prevent accidental activation

- Anti-sabotage protection with immediate reporting

- Battery powered with up to 7 years of battery life

Further details

✅ Jeweler Communication:
The device uses highly reliable Jeweller radio technology , which guarantees rapid and secure transmission of alarms within 3 seconds , advanced encryption , anti-interference frequency hopping and a range of up to 1700 metres in open fields , ensuring operational continuity even in complex contexts .
✅ Main features:
Addressable wireless manual call point designed for immediate fire alarm activation , with simplified anti-failure mechanism , transparent front cover against accidental activation , status LED and support for automation scenarios for sirens, evacuation and emergency management.
✅ Special tool (wrench):
The device includes a dedicated reset key , essential for the safe reset of the button after activation , preventing unauthorized tampering and ensuring correct operational reset only by authorized personnel.
✅ Anti-sabotage protection :
It integrates an anti-tampering device with continuous monitoring of the device status , capable of detecting opening or removal attempts and sending immediate notifications to the system and management apps.
✅ Power supply:
Powered by 2 pre-installed CR123A batteries , it offers up to 7 years of battery life , reducing maintenance and ensuring constant operation even in the absence of mains power , ideal for public and professional environments.

Technical data sheet

60815.171.NC1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 25 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Key features
Resettable frangible element activates the button
When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state.
Operating modes fire alarm
trigger scenario
With appropriate settings, it activates an alarm or controls Ajax automation devices.
LED status indication fire alarm
malfunctions
The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected.
Interconnected fire detectors alarms by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens
Critical alerts The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected
Protection against accidental presses Lift the transparent lid to access the frangible element. The lid protects against false button presses
Alarm transmission to CMS can be disabled
Special tool (key)
Reset button after pressing
To reset the button, insert the special tool into the corresponding hole.
Hole in the enclosure to hang on a ring from a keychain
The person responsible for fire safety can carry the special tool on their keychain.
Convenient dismantling The special tool opens the lock to dismantle the device from SmartBracket mounting panel
Recommendations It is recommended to install the button in easily accessible places at a height of 1.4 m.
The device is designed for indoor installation only.
Sabotage protection
Tampering alarm Notifies on attempts to detach the button from the surface or remove it from the mounting panel
Protection against spoofing device authentication
Detection of communication failure after 36 s
The detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Batteries 2 × CR123A
Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years.
Enclosure
Color Red
Dimension 102 × 104 × 39 mm
4.02″ × 4.09″ × 1.53″
Weight 214 g
7.55 oz
Operating temperature range from 0 °C to +50 °C
from 32°F to 122°F
Operating humidity up to 80%
Complete set ManualCallPoint (Red) Jeweller
SmartBracket mounting panel
Special tool (key)
2 × CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
