DEE118A | RS-485 EXPANSION MODULE

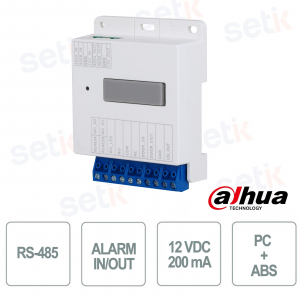

The Dahua DEE118A extension module is a professional solution for access control systems, designed to ensure stable RS-485 communication, advanced alarm management, and versatile installation. Made of durable PC+ABS material, it supports up to 20 devices in cascade with reliable transmission up to 100 meters, offering maximum flexibility for indoor and outdoor applications .
Main specifications:
- Stable and reliable RS-485 communication
- 8 inputs and 4 alarm outputs configurable via switch
- 12 VDC/200 mA power supply with cascade support for up to 20 devices
- Power and status indicators for immediate monitoring
- Compact design, CE EMC/LVD certifications and wide operating range
Further details

Technical data sheet
DEE118A | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
PC + ABS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 for output and 1 for input |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
8 channels. You can toggle the 1-bit switch to switch between input mode and output mode. If you toggle the 1-bit switch on the right to 0, input mode will be enabled. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
4 channels. You can toggle the 1-bit switch to switch between input mode and output mode. If you toggle the 1-bit switch on the right to 1, output mode will be enabled. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output |
1 port (12 V, 200 mA) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V, 1A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Surface Mount;Guide Rail Mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE EMC; CE LVD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

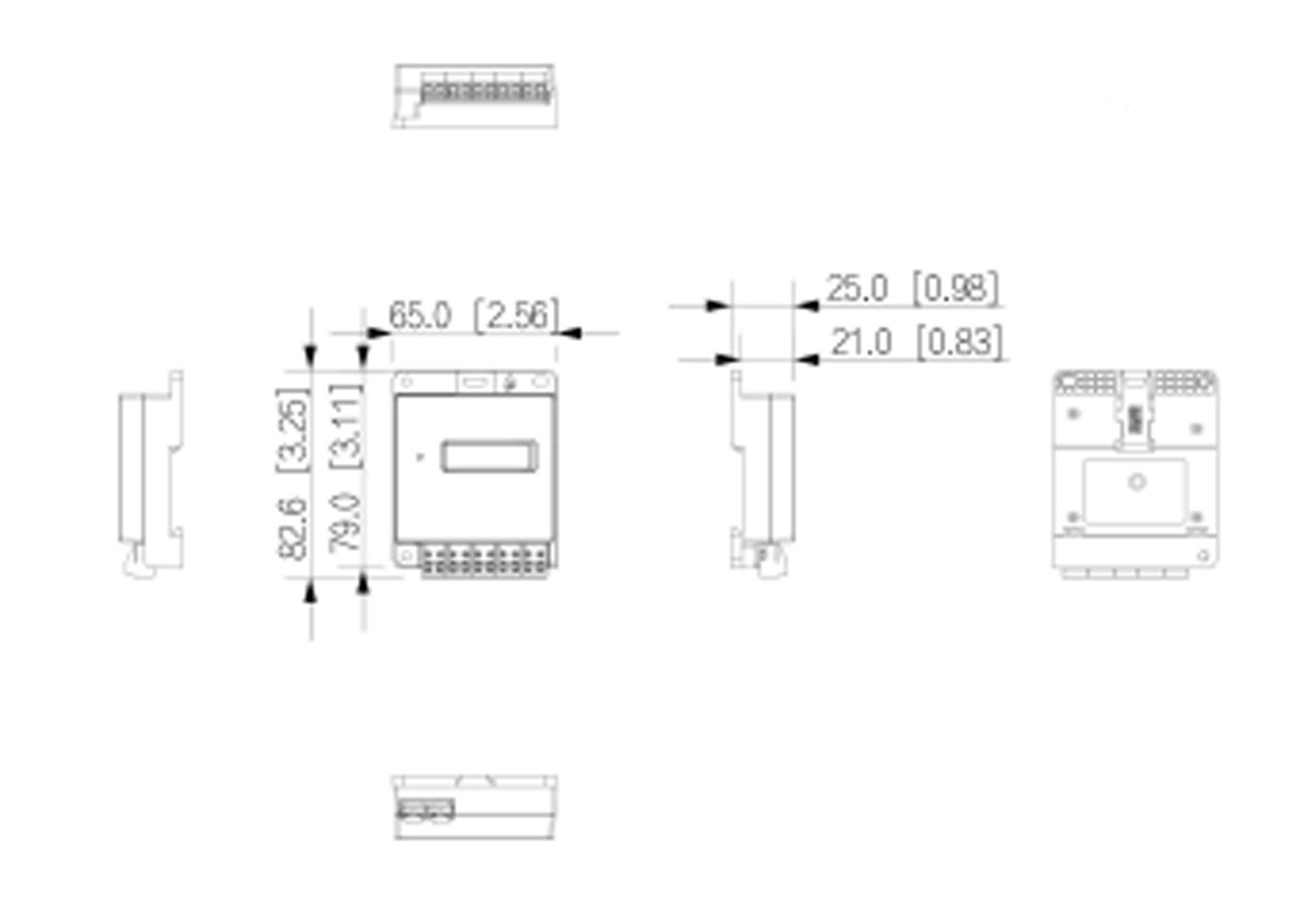

Product Dimensions | 82.6 mm × 65.0 mm × 25 mm (3.25" × 2.56" × 0.98") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10%–90% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment | Outdoor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | ≤0.4 W (standby), ≤1.0 W (working, 12 V output with no load) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.15 kg (0.33 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | 30%–75% (RH) |
