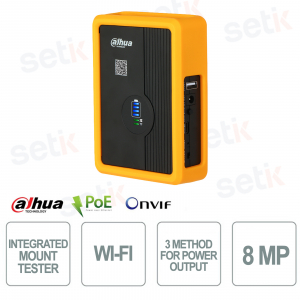

PFM2900 | WI-FI MOUNTING TESTER WITH MULTIPLE POWER OUTPUTS

Dahua

The Dahua PFM2900 Integrated Mount Tester is a portable professional tool ideal for installing and maintaining video surveillance systems, thanks to live viewing up to 8MP and support for ONVIF and Dahua protocols. It allows complete camera testing with H.264/H.265 decoding , image adjustment and IPC parameter management in real time. It integrates Wi-Fi hotspot and control via the DoLynk Care app , facilitating quick configurations even without a network. Multiple 12V DC, USB and PoE power outputs allow immediate testing in the field. Equipped with a 7800 mAh battery with up to 22 hours of battery life , it is perfect for prolonged interventions thanks to its compact and lightweight design.

Main specifications:

- Up to 8MP resolution for advanced IP camera testing

- Support ONVIF and Dahua protocols for wide compatibility

- H.264/H.265 compression with real-time viewing and zoom

- Multiple power supplies (12V DC, USB, PoE) for maximum operational versatility

- Built-in Wi-Fi hotspot for quick connection and mobile setup

- 7800 mAh battery up to 22 hours of continuous use without external power supply

Further details

✅ Resolution:
It supports a wide range up to 8MP , ensuring accurate IP camera testing with live view, zoom and H.264/H.265 decoding, ideal for professional installations and advanced video quality verification.
✅ Multiple Power Supply :
It integrates 12V DC, 5V USB and PoE outputs , offering maximum operational flexibility to power and test devices directly in the field without the need for external sources.
✅ Wi-Fi :
Equipped with integrated IEEE 802.11 a/b/g/n/ac Wi-Fi hotspot , it allows quick connection to smartphones and mobile devices for configuration and management via a dedicated app.
✅ Doors:
It features multiple Ethernet ports (up to 4×100 Mbps + 1 PoE) , USB port and Type-C input , ensuring complete connectivity for network testing, power supply and peripheral connection.
✅ Power supply:
Equipped with a built-in 7800 mAh battery , it offers up to 22 hours of battery life , allowing for prolonged use even in the total absence of external power.

Technical data sheet

MODEL PFM2900
System
Button Battery / LED Button
Power Button
LED 1 × 35 lm 5 mm LED light
1 system indicator
1 Wi-Fi indicator
IPC Test
Room Access ONVIF and Dahua private protocol
Resolution 1 MP; 1.3 MP; 2 MP; 3 MP; 4 MP; 5 MP; 6 MP; 8 MP
Initialization Yes
Image Live view, snapshot and recording, zoom, and H.264/H.265 decoding
Function Control Supports changing the IPC resolution, IP address and device password. You can also control the IPC and restore it to its default factory settings.
Wireless
Wi-Fi Hotspot Yes
Network
Standard Wi-Fi IEEE 802.11a/b/g/n/ac
Frequency Range 2.4 GHz–2.4835 GHz
Transmitter Power (EIRP) ≤ 16.5 dBm@2,400–2,483.5 MHz;
≤ 16 dBm@5.150–5.250 MHz;
≤ 16 dBm@5.250–5.350 MHz;
≤ 16 dBm@5.725–5.850 MHz
Others
Power Supply for Camera 12VDC, 1A; PoE 802.3af, power (max): 16W
RS-485 Control
Communication protocol More than 30 protocols including Pelco–D/P, Samsung, Panasonic, Lilin, and Yaan
Baud Rate 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 115200 bps
Wireless
Wi-Fi Hotspot Yes
Network
Standard Wi-Fi IEEE 802.11a/b/g/n/ac
Frequency Range 2.4–2.4835GHz and 5.15–5.85GHz
Transmitter Power (EIRP) CE EIRP:
≤20 dBm@2400 MHz–2483.5 MHz; ≤23 dBm@5150 MHz–5250 MHz;
≤20 dBm@5250 MHz–5350 MHz; ≤27 dBm@5470 MHz–5725 MHz;
≤14 dBm@5725 MHz–5850 MHz;
FCC output power:
≤30 dBm@2400 MHz–2483.5 MHz; ≤24 dBm@5150 MHz–5250 MHz:
≤24 dBm@5250 MHz–5350 MHz:≤24 dBm@5470 MHz–5725 MHz;
≤30 dBm@5725 MHz–5850 MHz
Port
Power 1 × Type C charging port
1 × 12 VDC port, DC current (max): 1 A
USB 1 × USB port. DC current (max): 2A, 5V
Network Port 4 × 100 Mbps Ethernet ports
1 × PoE output port that can be used as a 100 Mbps Ethernet port. The max power is 16W
Power Supply
Power Supply Type C
Battery Built-in 3.7 V polymer lithium battery with a capacity of 7800 mAh. It can work for up to 22 hours on a full charge, without any external power supply.
Protection
Surge Protection Grade Common mode: ±2 kV;
Differential mode: ±1 kV
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Structure
Appearance Color Black; Includes a yellow leather case.
Product Dimensions 130 mm × 95 mm × 37 mm (5.12" × 3.74" × 1.46") (L × W × H)
Packaging Dimensions 145 mm × 105 mm × 65 mm (5.71" × 4.13" × 2.56") (L × W × H)
Packaging Method 1 pcs in 1 carton, and 30 cartons in 1 package
Net Weight 0.332 kg (0.73 lb)
Gross Weight 0.385 kg (0.85 lb)
Environment
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 30%–90% (RH)
Storage Temperature –20 °C to +70 °C (–4 °F to +158 °F)
Storage Humidity 30%–90% (RH)
Certifications
Certifications CE Related Standards:
Article 3.1a): EN IEC 62386-1:2024+A11:2024
EN 50566:2017+A1:2023
EN IEC/IEEE 62209-1528:2021
Article 3.1b): ETSI EN 301489-1 V2.2.3 (2019-11)
ETSI EN 301489-17 V3.3.1 (2024-09)
EN 55032:2015+A1:2020+A11:2020
EN 55035:2017+A11:2020
Article 3.2): ETSI EN 300328 V2.2.2 (2019-07)
FCC Related Standards: FCC Part 15 Subpart B
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
