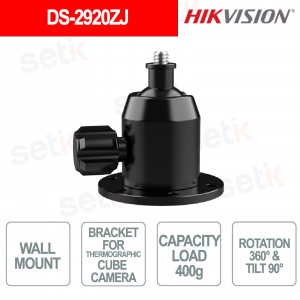

DS-2920ZJ Wall Mount for Thermal Imaging Cameras, 360° Rotation and 90° Tilt - Hikvision

DS-2920ZJ Wall Mount for Thermal Imaging Cameras, 360° Rotation and 90° Tilt - Hikvision

 
-35%

DS-2920ZJ - is a wall bracket designed for installing Cube thermographic cameras and separate temperature monitoring cameras , ensuring simple and stable mounting. Made of aluminum alloy with a black finish, it supports a maximum load of 400 g and offers high orientation flexibility thanks to 360° panoramic rotation and up to 90° tilt . The compact dimensions of Ø50 × 56.5 mm and weight of only 90 g facilitate integration even in installations with limited space. The device is fixed using a 1/4"-20UNC thread, ensuring compatibility with the thermographic models indicated by the manufacturer. Hikvision

Technical Data Sheet

referencia : DS-2920ZJ

brand : Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-2920ZJ – WALL BRACKET - 360° ROTATION AND 90° TILT

Hikvision

The Hikvision DS-2920ZJ is a wall bracket for thermal cameras , designed to ensure simple, stable and precise installation. Made of aluminum alloy with a black finish, it supports a maximum load of 400 g and allows for extensive adjustment thanks to 360° panoramic rotation and up to 90° tilt . The compact dimensions of Ø50 × 56.5 mm and weight of only 90 g make it suitable for professional installations with Cube thermographic cameras and separate temperature monitoring systems. The device is fixed via a 1/4"-20UNC attachment, ensuring compatibility with the models provided by the manufacturer.

Main features:

  • Type: wall bracket
  • Material: Aluminum alloy
  • Adjustment: 360° / 90°
  • Maximum load: 400 g
  • Dimensions: Ø50 × 56.5 mm
  • Drive: 1/4"-20UNC

Further details

✅ Compatibility:
 The Hikvision DS-2920ZJ is designed for wall mounting of Cube thermographic cameras and separate temperature monitoring cameras , making it compatible with the DS-2TD3017T-3/V, DS-2TD3017T-2/V, HM-TD3028T-3/Q(B), HM-TD3028T-2/Q(B), HM-TD3028T-2/Q and HM-TD3028T-3/Q models .
✅ Material :
 Made of aluminum alloy with a black finish , it combines a compact structure with a low weight of 90 g , making it suitable for the professional installation of compatible cameras.
✅ Adjustment:
 It offers high positioning flexibility thanks to the 360° panoramic rotation and up to 90° tilt , allowing you to precisely orient the camera according to the area to be monitored.
✅ Maximum load:
The bracket supports devices weighing up to 400 g (0.88 lb) , ensuring adequate support for compatible thermal imaging cameras provided by the manufacturer.

Technical data sheet

DS-2920ZJ
Parameters
Appearance Black
Material Aluminum Alloy
Dimensions φ50 × 56.5 mm (Φ 1.97" × 2.22")
Weight 90 g (0.2 lb.)
Angle Adjustment Panning: 360°; Tilting: 90°
Bracket Mounting Hole 3-M3 (Screw thread) / 3-φ3.5 (Thru Hole)
Device Mounting Hole 1/4" - 20UNC
Mount Wall Mount
Accessory 1 * Installation guide; 1*L-shaped 2.5mm hexwrench
Load Capacity 400 g (0.88 lb.)
Application Scope Compatible with thermographic cube camera and temperature screening seperated camera
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
