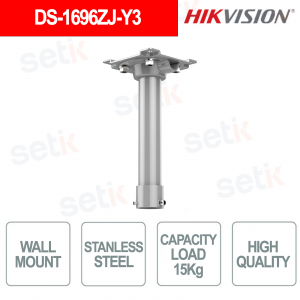

DS-1696ZJ-Y3 - is a suspension bracket for video surveillance cameras , designed for professional installations on flat surfaces. Made of sturdy stainless steel with anti-corrosion spray treatment , it integrates cable outlets to simplify wiring and maintain a tidy installation. The structure measures 160 × 160 × 331 mm , weighs approximately 1892 g and supports a maximum load capacity of 15 kg . The Silver Moon Grey finish and the possibility of use even in outdoor applications with waterproof rubber make it suitable for reliable and durable security systems. Hikvision

Technical Data Sheet

referencia : DS-1696ZJ-Y3

brand : Hikvision

EAN: 6931847141646

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DS-1696ZJ-Y3 – WALL BRACKET

Hikvision

The Hikvision DS-1696ZJ-Y3 is a suspension bracket for video surveillance cameras , designed for professional installations on flat surfaces. Made of stainless steel with anti-corrosion spray treatment , it has cable glands to facilitate wiring and maintain a tidy installation. The structure measures 160 × 160 × 331 mm , weighs approximately 1892 g and supports a maximum load of 15 kg , with a Silver Moon Grey finish also suitable for outdoor applications with a special waterproof rubber.

Main features:

  • Type: suspension bracket
  • Material: Anti-corrosion stainless steel
  • Maximum load: 15 kg
  • Dimensions: 160 × 160 × 331 mm
  • Weight: approx. 1892 g
  • Wiring: cable gland outputs
  • Finish: Silver Moon Grey

Further details

Compatibility:
The Hikvision DS-1696ZJ-Y3(OS) is a suspension bracket for video surveillance cameras , designed for mounting on flat surfaces and also usable in outdoor applications with the appropriate waterproof rubber; the integrated cable gland outputs facilitate the management of connections.
Material :
Made of sturdy stainless steel with anti-corrosion spray treatment , it offers a resistant and durable structure, with an elegant Silver Moon Grey finish , suitable for professional video surveillance installations.
Maximum capacity:
It supports a maximum load of 15 kg (33.07 lb) ; for secure mounting, the mounting surface must be able to support at least 3 times the combined weight of the camera and bracket .

Technical data sheet

DS-1696ZJ-Y3
Parameters
Weight Approx. 1892 g (4.17 lb.)
Appearance Silver Moon Grey
Material Stainless steel
Dimensions 160 mm × 160 mm × 331 mm (6.30'' × 6.30'' × 13.03'')
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
