316L Stainless Steel Anti-Corrosion Wall Bracket, 8 kg Load Capacity - Hikvision

316L Stainless Steel Anti-Corrosion Wall Bracket, 8 kg Load Capacity - Hikvision

 
-35% nuevo

DS-1697ZJ-Y3 - is an anti-corrosion wall bracket for video surveillance cameras , designed for professional installations in harsh environments and adverse conditions . Made of sturdy 316L stainless steel , it integrates a practical safety rope that facilitates mounting operations. With a Silver Moon Grey finish, dimensions of 126 × 222 × 328 mm , weight of approximately 2307 g and maximum load capacity of 8 kg , it offers a solid and durable solution even for outdoor applications with special waterproof rubber. Hikvision

Technical Data Sheet

referencia : DS-1697ZJ-Y3

brand : Hikvision

EAN: 6941264092612

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

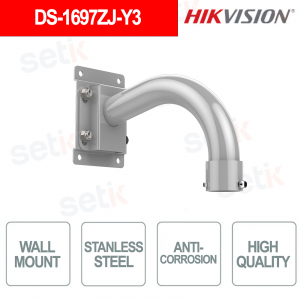

DS-1697ZJ-Y3 – WALL BRACKET - MAXIMUM LOAD CAPACITY 8Kg

Hikvision

The Hikvision DS-1697ZJ-Y3 is a corrosion-resistant wall bracket for video surveillance cameras , designed for professional installations in harsh environments and adverse conditions . Made of sturdy 316L stainless steel , it integrates a practical safety rope that simplifies assembly. With a Silver Moon Grey finish, dimensions of 126 × 222 × 328 mm , a weight of approximately 2307 g and a maximum load capacity of 8 kg , it is also suitable for outdoor applications with a special waterproof rubber.

Main features:

  • Type: wall bracket
  • Material: 316L stainless steel
  • Design: Anti-corrosion
  • Maximum load: 8 kg
  • Safety: integrated rope
  • Dimensions: 126 × 222 × 328 mm
  • Weight: approx. 2307 g

Further details

✅ Compatibility:
 The Hikvision DS-1697ZJ-Y3(OS) is a wall bracket for video surveillance cameras , designed for mounting on flat surfaces and for applications in harsh and corrosive environments ; for outdoor installations, the use of waterproof rubber is provided and the safety rope facilitates mounting.
✅ Material :
Made from robust 316L stainless steel with an anti-corrosion design , it offers high resistance to adverse environmental conditions and features a professional Silver Moon Grey finish .
✅ Maximum capacity:
The bracket supports a maximum load of 8 kg (17.64 lb) ; to ensure a safe installation, the wall must support at least 3 times the combined weight of the camera and the bracket .

Technical data sheet

DS-1697ZJ-Y3
Parameters
Weight Approx. 2307 g (5.09 lb.)
Appearance Silver Moon Grey
Material Stainless steel 316L
Dimensions 126 mm × 222 mm × 328 mm (4.96" × 8.74" × 12.93")
