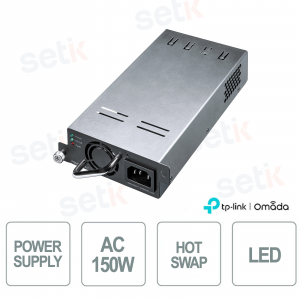

TP-Link PSM150-AC 150W Hot Swap AC Power Supply for Omada Switch

TP-Link PSM150-AC 150W Hot Swap AC Power Supply for Omada Switch

nuevo

The PSM150-AC is a 150W AC power supply designed to provide reliable power to compatible TP-Link switches by converting 100-240V AC input to 12V DC/12.5A output. It offers a maximum power of 150W and integrates protections against voltage fluctuations, under-voltage, over-voltage and short circuit . Hot Swap technology allows hot swapping for system continuity, while the Power, PS OK and Fault LEDs allow for quick monitoring of the operating status. Omada

Technical data sheet not available

referencia : PSM150-AC

brand : OMADA

EAN: 1210002618120

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


PSM150-AC | 150W AC POWER SUPPLY


Made Omada

The TP-Link PSM150-AC is a 150W AC power supply designed for compatible TP-Link switches, with 100-240V AC, 50/60Hz input and 12V DC / 12.5A output. The Hot Swap function allows hot swapping while maintaining system operational continuity. It integrates protections against voltage fluctuations, under-voltage, over-voltage and short circuit and features LED indicators for Power, PS OK and Fault for immediate monitoring of the operating status.

Main specifications:

  • Power: up to 150W
  • Input: 100-240V AC
  • Output: 12V / 12.5A DC
  • Hot Swap: hot replacement
  • Protections: voltage and short circuit
  • LED: Power, PS OK, Fault

Further details

Power:
The TP-Link PSM150-AC provides a maximum output power of 150W , designed to ensure stable power supply to compatible TP-Link switches.
Entrance:
It features AC input 100-240 V~, 50/60 Hz, 2.5 A , compatible with a wide range of mains voltages for greater installation flexibility.
Exit:
Converts AC power to 12V DC / 12.5A , providing up to 150W of output power .
Hot Swap:
Hot Swappable technology allows the power supply to be installed or replaced while hot , ensuring system continuity during maintenance.
Protections:
It integrates protection systems against voltage fluctuations, undervoltage, overvoltage and short circuit , contributing to the safety and reliability of the power supply.
LED:
The Power, PS OK and Fault indicators allow you to quickly check the power status, correct operation and presence of anomalies of the module.

Technical data sheet

Model PSM150-AC
Combo PON SFP+ Module
AC Power Supply 100-240V~ 50/60Hz 2.5A
AC Power Input 100-240V~ 50/60Hz 2.5A
DC Power Output 12V/12.5A
Dimensions 120*213*41.8 mm
LED Power, PS OK, Fault
Maximum output power 150W
Environment Operating Temperature: 0℃~70℃ (32℉~158℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
