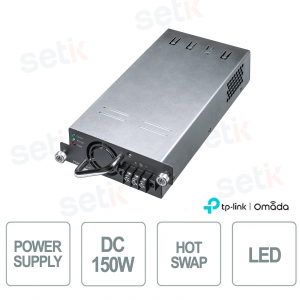

TP-Link PSM150-DC 150W Hot Swap DC Power Supply for OLT GPON

TP-Link PSM150-DC 150W Hot Swap DC Power Supply for OLT GPON

nuevo

PSM150-DC is a 150W DC power supply module designed for GPON OLT systems, compatible with DS-P7001-08 and DS-P7001-16 . It supports -48 to -60V/6A DC input and provides a stable 12V/12.5A output, with a maximum power of 150W . The Hot Swap function allows installation or replacement without interrupting the system, while overvoltage, undervoltage, short circuit and overcurrent protections increase operational reliability. It also integrates Power, PS OK and Fault LEDs for immediate monitoring of the power supply status. Omada

Technical data sheet not available

referencia : PSM150-DC

brand : OMADA

EAN: 4897098687420

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


PSM150-DC | 150W DC POWER SUPPLY


Made Omada

The TP-Link PSM150-DC is a 150W DC power module designed for GPON OLT systems, compatible with DS-P7001-08 and DS-P7001-16 . It converts the -48~-60V DC/6A input to a stable 12V DC/12.5A output, with a maximum power of 150W . Hot Swap technology allows for installation and replacement without interrupting the system, while overvoltage, undervoltage, short circuit and overcurrent protections increase safety and reliability.

Main specifications:

  • Power: 150W
  • Input: -48~-60V DC / 6A
  • Output: 12V DC / 12.5A
  • Hot Swap: Supported
  • Protections: multiple integrated
  • LED: Power, PS OK, Fault
  • Compatibility: DS-P7001-08 / DS-P7001-16

Further details

Power:
The TP-Link PSM150-DC offers a maximum output power of up to 150W , designed to provide stable power to compatible GPON OLT systems .
Entrance:
It supports -48 to -60V DC power supply with 6A current , adapting to the DC power infrastructures used in professional network environments.
Exit:
It converts the input voltage providing a stable output of 12V DC / 12.5A , with a maximum power of 150W .
Hot Swap:
Hot Swappable technology allows you to install or replace the power module without interrupting the system , promoting operational continuity of the GPON infrastructure.
Protections:
It integrates overvoltage, undervoltage, short circuit and output overcurrent protection systems , helping to protect the power supply and connected devices.
LED:
It has Power, PS OK and Fault indicators, which allow you to quickly check the power status, correct operation and the presence of any anomalies .

Technical data sheet

Model PSM150-DC
Redundant Power Supply
DC Power Input -48 ~ -60V 6A
DC Power Output 12V/12.5A
Dimensions 120*213*41.8 mm
LED Power, PS OK, Fault
Maximum output power 150W
Environment Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
