DS-1706ZJ-Y-AC 360° Adjustable PT Joint 316L Stainless Steel 10 kg - Hikvision

DS-1706ZJ-Y-AC 360° Adjustable PT Joint 316L Stainless Steel 10 kg - Hikvision

 
-35% nuevo

DS-1706ZJ-Y-AC - is an adjustable PT joint for video surveillance systems, made of robust 316L stainless steel with anti-corrosion surface treatment . It offers tilt adjustment from -45° to +45° and pan rotation from 0° to 360° , ensuring maximum flexibility in camera positioning. It features a Silver Moon Grey finish, compact dimensions of 90 × 55 × 60 mm , a weight of 270 g and supports a maximum load of up to 10 kg . Hikvision

Technical Data Sheet

referencia : DS-1706ZJ-Y-AC

brand : Hikvision

EAN: 6931847142896

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

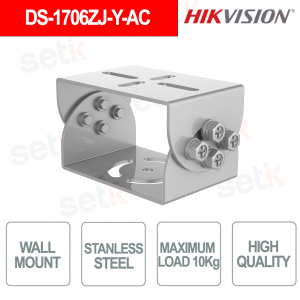

DS-1706ZJ-Y-AC – 360° ADJUSTABLE PT JOINT

Hikvision

The Hikvision DS-1706ZJ-Y-AC is an adjustable PT joint for video surveillance systems, made of durable 316L stainless steel with anti-corrosion surface treatment . It allows tilt adjustment from -45° to +45° and pan rotation from 0° to 360° , offering high flexibility in camera positioning. It features a Silver Moon Grey finish, compact dimensions of 90 × 55 × 60 mm , a weight of 270 g and supports a maximum load of 10 kg .

Main features:

  • Material: 316L stainless steel
  • Tilt adjustment: -45° / +45°
  • Pan adjustment: 0° / 360°
  • Dimensions: 90 × 55 × 60 mm
  • Weight: 270 g
  • Maximum load: 10 kg

Further details

✅ Material :
 The Hikvision DS-1706ZJ-Y-AC PT joint is made of robust 316L stainless steel with anti-corrosion surface treatment , a configuration designed to offer resistance and reliability in professional video surveillance installations.
✅ Installation :
The device is a PT joint for video surveillance systems , characterised by compact dimensions of 90 × 55 × 60 mm and a weight of 270 g , designed to allow the positioning and orientation of the camera through an adjustable structure.
✅ Maximum load:
The joint structure supports a maximum load of up to 10 kg (22 lb) , making it suitable for supporting compatible video surveillance equipment within the weight limit indicated by the manufacturer.
✅ Tilt adjustment:
The joint allows for vertical tilt adjustment from -45° to +45° , allowing you to tilt the camera and precisely adapt its shooting angle to the area you want to monitor.
✅ Pan adjustment:
The horizontal pan adjustment from 0° to 360° allows for full rotation of the mount, offering high flexibility in orienting the camera within the video surveillance area.

Technical data sheet

DS-1706ZJ-Y-AC
Parameters
Appearance Silver Moon Grey
Material Stainless steel 316L
Dimensions 90 mm × 55 mm × 60 mm (3.54" × 2.17" × 2.36")
Weight 270 g (0.60 lb.)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
