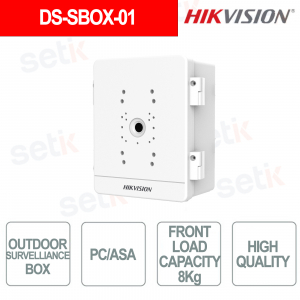

DS-SBOX-01 is an outdoor video surveillance protection box made of high-strength PC/ASA polymer , with UL94-V0 classification. It supports wall, pole and corner installation, is compatible with Hikvision network cameras, PTZ cameras and network speakers and offers IP66 and IK10 protection. It measures 318.57 × 259.70 × 130.05 mm , weighs 2.5 kg and supports up to 8 kg on the front panel . Hikvision

Technical Data Sheet

referencia : DS-SBOX-01

brand : Hikvision

EAN: 6936422160456

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-SBOX-01 – PROTECTION BOX

Hikvision

The Hikvision DS-SBOX-01 is an outdoor video surveillance enclosure made of high-strength PC/ASA with a UL94-V0 rating. It supports wall, pole and corner installations, offers IP66 and IK10 protection and is compatible with Hikvision network cameras, PTZ cameras and network speakers . It operates from -40°C to 60°C , measures 318.57 × 259.70 × 130.05 mm and supports up to 8 kg on the front panel .

Main features:

  • Material: PC/ASA UL94-V0
  • Protection: IP66 and IK10
  • Installation: wall, pole, corner
  • Compatibility: Hikvision cameras, PTZ, speakers
  • Front load: 8 kg
  • Temperature: -40 °C / 60 °C

Further details

✅ Material :
 The Hikvision DS-SBOX-01 is made of high-strength PC/ASA polymer with UL94-V0 flame resistance classification and a Hikvision White RAL 9003 finish; the structure is also designed for outdoor applications thanks to the IP66 and IK10 protection levels against dust, water and mechanical impacts.
✅ Installation :
The DS-SBOX-01 is designed for quick and versatile installation, supporting wall, pole, and corner mounting . The supplied equipment and accessories allow for configurations with installation plates , metal bands, and compatible brackets, adapting to different video surveillance system needs.
✅ Compatibility :
 The box is designed to offer high adaptability with Hikvision network cameras, PTZ cameras and network speakers , supporting various configurations through compatible brackets and junction boxes to realize professional video surveillance installations.
✅ Front loading:
The front panel supports a maximum load of 8 kg (17.64 lb) , allowing the installation of compatible devices while maintaining a stable configuration that meets the manufacturer's specifications.

Technical data sheet

DS-SBOX-01
General
Material PC/ASA; Hikvision White(RAL 9003)
Weight 2.5 kg (5.51 lb.)
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Packing List Security Box: ×1
Installation Back Plate: ×1
Pegboard: ×1
Shelf Board: ×1
Din Rail: ×2
Phillips Head Screw (M8×20): ×8
Phillips Head Screw (M8 × 12): × 2
Phillips Head Screw (M4×10): ×4
Self-Tapping Screw (M3 × 10): ×10
Hex Head Phillips Screw (M8×25): ×4
Hex Socket Screw (M6 × 25): ×4
Hexagon Socket Screwdriver: ×1
Cylindrical Pin (M4 × 40): ×4
Waterproof Cable Connector 1 (5 to 6.5 mm): ×1
Waterproof Cable Connector 2 (6.5 to 8 mm): ×1
Network Cable Piercing Accessories: ×1
Cable Gland (G3/4): ×1
Cable Gland (M20): ×2
Metal Strapping Band: ×3
Approval
Protection IP66, IK10
