DS-SBOX-03 IP66 IK10 Outdoor Box for Video Surveillance - Hikvision

DS-SBOX-03 IP66 IK10 Outdoor Box for Video Surveillance - Hikvision

 
-35% nuevo

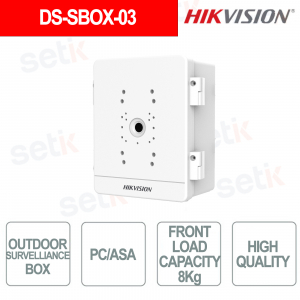

DS-SBOX-03 is an outdoor protection box for video surveillance systems , made of high-strength PC/ASA polymer with UL94-V0 classification. It offers IP66 and IK10 protection, supports wall or pole installations and is compatible with Hikvision IP, PTZ cameras and IP speakers . It measures 448.72 × 387.53 × 225.44 mm , weighs 5.2 kg and supports up to 8 kg on the front panel and 5 kg on the side panel . Hikvision

Technical Data Sheet

referencia : DS-SBOX-03

brand : Hikvision

EAN: 6936422160463

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-SBOX-03 – PROTECTION BOX

Hikvision

The Hikvision DS-SBOX-03 is an outdoor video surveillance box made of high-strength PC/ASA polymer with UL94-V0 classification. It offers IP66 and IK10 protection, supports wall or pole installations and is compatible with Hikvision IP, PTZ cameras and IP speakers . It has dimensions of 448.72 × 387.53 × 225.44 mm , a weight of 5.2 kg and a load capacity of up to 8 kg on the front panel and 5 kg on the side panel .

Main features:

  • Material: PC/ASA UL94-V0
  • Protection: IP66 and IK10
  • Installation: wall or pole
  • Compatibility: IPC, PTZ and Hikvision IP speaker
  • Front load: 8 kg
  • Side load: 5 kg

Further details

✅ Material :
 The Hikvision DS-SBOX-03 is made of high-strength PC/ASA polymer , with a UL94-V0 flame resistance rating and a Hikvision White RAL 9003 finish ; the structure also offers IP66 and IK10 protection , making it suitable for outdoor video surveillance applications.
✅ Installation :
The DS-SBOX-03 is designed for quick and versatile installation on walls or poles . 5 metal bands are included for mounting on 80 to 200 mm poles, while the installation plate is provided for wall mounting ; the M8 bolts required for this latter configuration must be purchased separately.
✅ Compatibility :
 The box offers high adaptability with Hikvision devices and is designed for integration with IP cameras (IPCs), PTZ cameras, and IP speakers . The PDF also lists various compatible accessories and junction boxes to configure the installation based on the device used.
✅ Front loading:
The front panel supports a maximum load of 8 kg , allowing the installation of compatible devices according to the manufacturer's specifications; the box also features a side panel with a load capacity of up to 5 kg .

Technical data sheet

DS-SBOX-03
General
Dimension 448.72 mm × 387.53 mm × 225.44 mm (17.67'' × 15.26'' × 8.88'')
Weight 5.2 kg (11.46 lb.)
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Loading Capacity of Front Panel: 8 kg (17.64 lb.)
Side Panel: 5 kg (11.02 lb.)
Packing List Security Box: ×1
Installation Back Plate: ×1
Pegboard: ×1
Shelf Board: ×1
Din Rail: ×2
Phillips Head Screw (M8×20): ×8
Phillips Head Screw (M8 × 12): × 2
Phillips Head Screw (M4×10): ×4
Self-Tapping Screw (M3 × 10): ×10
Hex Head Phillips Screw (M8×25): ×4
Hex Socket Screw (M6 × 25): ×4
Hexagon Socket Screwdriver: ×1
Cylindrical Pin (M4 × 40): ×4
Waterproof Cable Connector 1 (5 to 6.5 mm): ×1
Waterproof Cable Connector 2 (6.5 to 8 mm): ×1
Network Cable Piercing Accessories: ×1
Cable Gland (G3/4): ×1
Cable Gland (M20): ×2
Metal Strapping Band: ×3
Approval
Protection IP66, IK10
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
