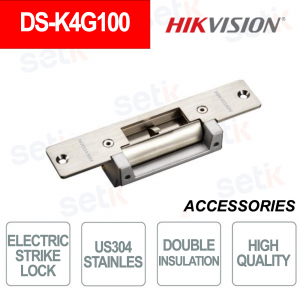

DS-K4G100 – ELECTRIC LOCK – US304 STAINLESS STEEL

Hikvision

The Hikvision DS-K4G100 electric lock is designed for wooden, metal, and PVC doors, offering security and durability thanks to its 304 stainless steel construction and a pulling force of up to 800 kg. Reliable and durable, it guarantees over 100,000 use cycles and the option to select fail-safe or fail-secure mode for optimal protection at all times .

Main features:

- Tractive force: 800 kg

- 304 stainless steel

- Fail-safe/fail-secure mode

- Double insulation

- Over 100,000 use cycles

Further details

✅ Material :
 Crafted from 304 stainless steel for maximum corrosion resistance and long-lasting durability, with a brushed finish plate for a sleek, professional design.
✅ Power supply :
 It operates on 12 VDC (320 mA) or 24 VDC (160 mA ±15%) power, ensuring compatibility with various access control systems.
✅ Maximum thrust :
 It supports a static tensile force of up to 800 kg (1764 lb) , ensuring high protection against forced openings.
✅ Uses :
 Suitable for wooden, metal and PVC doors, with selectable fail-safe or fail-secure operation, ideal for both residential and professional applications.

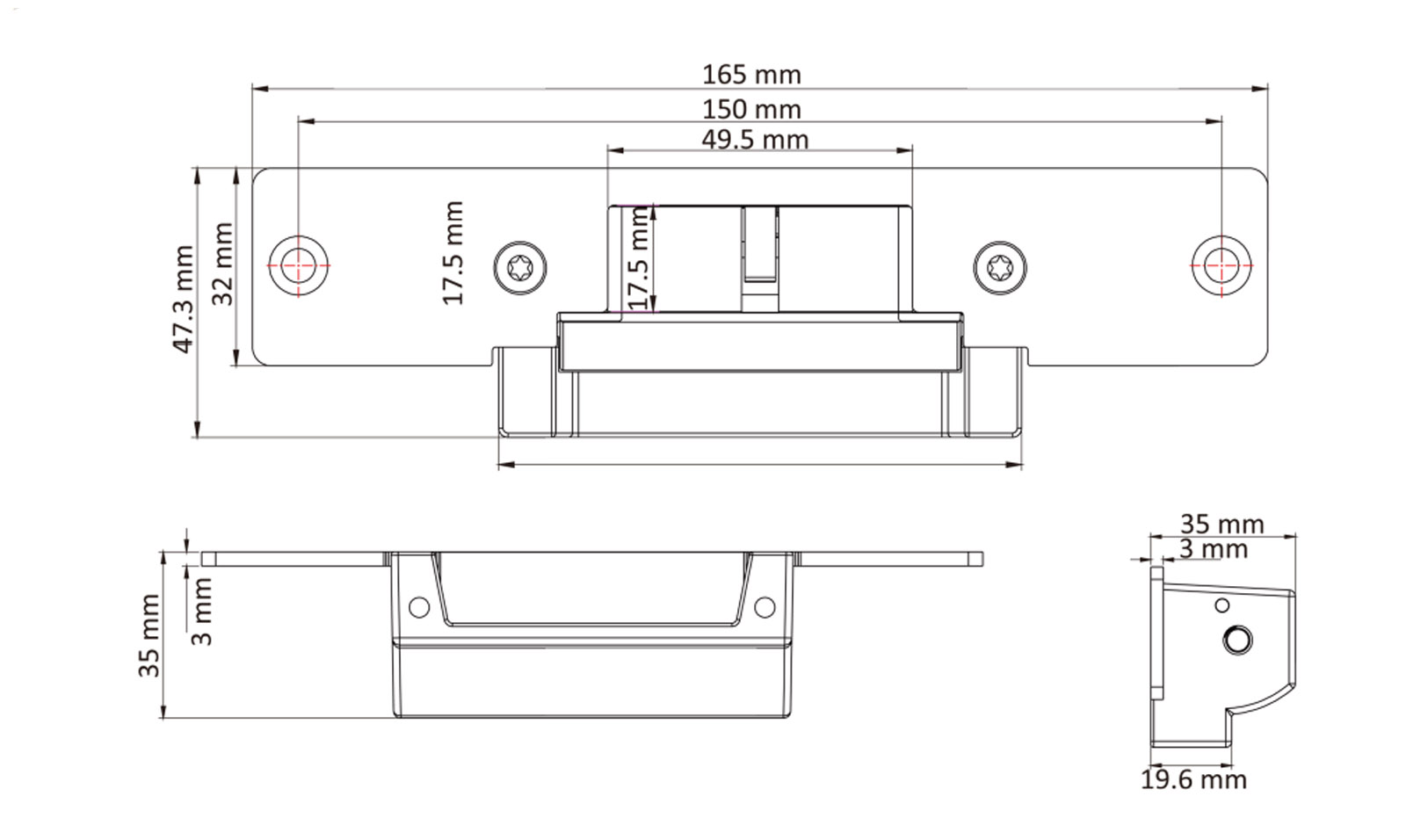

DS-K4G100 dimensions

Technical data sheet

DS-K4G100

General

Power supply

12 VDC, 320 mA/24 VDC, 160 mA ± 15%

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

0 to 95% (non-condensing)
Dimensions 165 mm × 43.7 mm × 35 mm (6.5" × 1.7" × 1.4")
Weight 0.4 kg (0.9 lb)
Material Latch: stainless steel
Thrust Max. 800 kg (1764 lb)
Door type Wooden door, metal door, PVC door
Signal output Dry contact signal output; NO output while locking and NC output while unlocking
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
