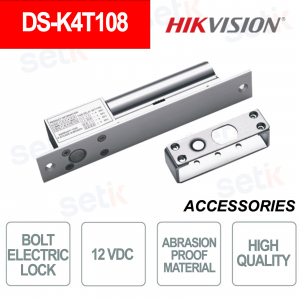

DS-K4T108 – ELECTRIC BUTTON LOCK - ANTI-ABRASION

Hikvision

The Hikvision DS-K4T108 electric deadbolt lock combines security and durability thanks to a compact design and abrasion-resistant materials. Made with a hard-anodized Aldural body, it is ideal for wooden, glass, and metal doors. It operates at 12 VDC with low standby power consumption, and features a self-locking module and a door status signal output. Measuring 205 x 34 x 42 mm and weighing just 0.74 kg, it guarantees reliability and a long life.

Main features:

- Material: Hard anodized aldural shell

- Power supply: 12 VDC, ≤1.2A start, 0.2A standby

- Uses: wooden, glass and metal doors

- Functions: self-lock, door status signal output

Further details

✅ Material :
 The body is made of hard anodized aldural , treated with electroplating, which ensures high wear resistance and long life even under conditions of intense use.
✅ Internal resistance :
 Equipped with a voltage dependent resistor (MOV), it protects the circuit from overvoltages and prolongs its useful life.
✅ Auto-lock:
 Thanks to the integrated induction module , it activates the automatic lock, improving security and reducing the risk of unauthorized access.
✅ Uses :
 Suitable for wooden, glass and metal doors , it operates at 12 VDC and allows for low standby power consumption, making it versatile for different environments.

Technical data sheet

DS-K4T108

General
Power supply 12VDC; ≤ 1.2 A (Startup Current) 0.2 A (Standby)
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 0 to 95% (relative humidity)
Dimensions Lock Body: 205mm × 34mm × 42mm (8.1" × 1.3" × 1.7")
Weight 0.74kg (1.6 lb)
Material Shell: Hard Anodizing Electroplating Operated
Signal output Dry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;
Delay duration 0/3/6/9s optional
Door type Wooden Door, glass door, metal Door
Magnetic Lock/General
Unlock method Current Interruption
Surface temperature ≤ Ambient Temperature +10 °C (50 °F)
Suitable door Wooden Door, Glass Door, and Metal Door
