Hyundai 400m Passive HDCVI HDTVI AHD Transmitter, No Power Supply, Anti-Interference

Hyundai 400m Passive HDCVI HDTVI AHD Transmitter, No Power Supply, Anti-Interference

 
nuevo

HYU-156 - The 1-channel passive transmitter is a reliable solution for video transmission on video surveillance systems, thanks to its compatibility with HDCVI, HDTVI and AHD technologies that guarantees maximum integration with various systems. It offers high performance with transmission up to 400 meters in HDCVI and up to 250 meters in HDTVI , ensuring signal stability even over long distances. The device is designed for maximum efficiency with power-free operation , facilitating installation. It integrates interference rejection greater than 60dB and transient protection , improving signal reliability. The compact and resistant structure allows use in various environments thanks to the operating range of -10°C to +55°C . Hyundai

Technical Data Sheet

referencia : HYU-156

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

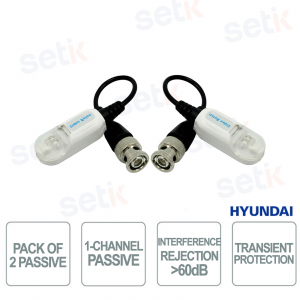

HYU-156 | PACK OF 2 1-CHANNEL PASSIVE TRANSMITTERS FOR HDCVI, HDTVI, AND AHD VIDEO FOR TWISTED PAIR


Hyundai Security

The Hyundai HYU-156 1-channel passive transmitter is an efficient solution for video transmission in video surveillance systems, designed to ensure maximum compatibility thanks to support for HDCVI, HDTVI and AHD technologies . It ensures high performance with transmission up to 400 meters in HDCVI and up to 250 meters in HDTVI , maintaining signal stability even over long distances. The device offers convenience thanks to its power-free operation , facilitating quick and hassle-free installations. It integrates interference rejection greater than 60dB and transient protection , improving system reliability. Furthermore, it is designed to operate in various environmental conditions thanks to the temperature range of -10°C to +55°C .

Main specifications:

- Compatibility with HDCVI, HDTVI and AHD technologies

- Transmission up to 400 meters on HDCVI and 250 meters on HDTVI

- Power-free operation for easy installation

- Interference rejection >60dB and integrated transient protection

- Operating range from -10°C to +55°C for different environments

Further details

✅ Video broadcast:
 Video transmission up to 400 meters in HDCVI and up to 250 meters in HDTVI designed to ensure signal stability and high quality even over long distances , making it ideal for professional video surveillance systems.
✅ Compatibility:
Compatibility with HDCVI, HDTVI and AHD technologies allows for versatile integration with different video systems , facilitating upgrades and expansions without modifying the existing infrastructure.
✅ Interference rejection :
Interference rejection greater than 60dB ensures clean and stable signal transmission , reducing noise and improving overall system reliability.

Technical data sheet

HYU-156
Specifications
1-Channel Passive HDCVI, HDTVI and AHD Transmitter
HDCVI range: 400 meters (720P), 250 meters (1080P)
HDTVI range: 250 meters (720P, 1080P)
AHD range: 350 meters (720P), 200 meters (1080P)
It does not require power supply
Interference rejection (>60dB)
Operating temperature -10°C ~ +55°C
Dimensions: 36.5 x 17.5 x 17.3 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
