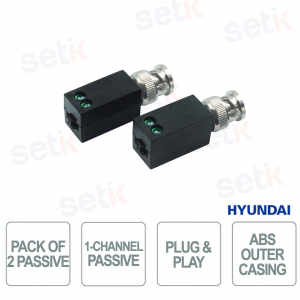

HYU-1050 - The HYUNDAI HYU-1050 1-channel passive transceiver is designed for video transmission over twisted pair, ensuring compatibility with HDCVI, HDTVI and AHD and offering simple installation thanks to the Plug & Play technology without power supply . It supports transmissions up to 400 meters on Cat 5E/6 cable , ensuring high performance even over long distances. Equipped with anti-interference protection >60dB and lightning resistance , it guarantees signal stability and security. The structure with BNC connector and screw terminal facilitates wiring, while the resistant ABS casing ensures durability over time. Ideal for professional video surveillance systems, it offers reliability and operational simplicity. Hyundai

Technical Data Sheet

referencia : HYU-1050

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-1050 | 1-CHANNEL PASSIVE TRANSCEIVER


Hyundai Security

The HYUNDAI HYU-1050 1-channel passive transceiver is designed for twisted pair video surveillance systems, offering compatibility with HDCVI, HDTVI and AHD and ensuring reliable transmission without the need for power. Thanks to Plug & Play technology, it allows for quick installation without complex configurations. It supports a transmission distance of up to 400 meters on Cat5e/6 cable , maintaining signal quality even over long distances. Equipped with anti-interference protection >60dB and lightning resistance , it ensures operational stability and safety. The structure with BNC connector and screw terminal in resistant ABS facilitates wiring and guarantees durability over time.

Main specifications:

- Compatibility with HDCVI, HDTVI and AHD

- Transmission up to 400 meters on Cat5e/6

- Plug & Play installation without power supply

- Anti-interference protection >60dB and anti-lightning

- BNC connector and screw terminal for quick wiring

- Strong and durable ABS construction

Further details

✅ Compatibility:
 Compatibility with HDCVI, HDTVI and AHD technologies designed to ensure maximum integration with various analog HD video surveillance systems , allowing the device to be used in existing systems without the need for modifications.
✅ Transmission distance:
Transmission distance up to 400 meters on Cat5e/6 cable which allows stable video transmission even over long distances , maintaining signal quality up to 720P, 1080P and 4MP resolutions .
✅ Plug & Play :
Power-free Plug & Play technology designed to offer quick and immediate installation , eliminating complex configurations and reducing commissioning times and costs.
✅ Anti -interference :
Anti-interference system >60dB and lightning protection that guarantees safe and stable signal transmission , reducing electrical disturbances and improving the reliability of the system over time.

Technical data sheet

HYU-1050
Specifications
Transmission signal: 1 channel
Transmission distance:
  • HDCVI: 400 meters (720P), 250 meters (1080P), 200 meters (4MP)
  • HDTVI: 250 meters (720P/1080P), 200 meters (4MP)
  • AHD: 350 meters (720P), 200 meters (1080P/4MP)
Category Type: UTP CAT5/ 5E/ 6
Twisted Pair Video Connector: BNC-M
Resolution: 720P/1080P/4MP
Anti-interference: >60db
ESD:
  • 1st level of contact electric discharge3
  • 1b level of electric discharge in air3
  • For: IEC61000-4-2
Coaxial cable connector:
  • 2KV (common code)
  • For: IEC61000-4-5
UTP cable connector:
  • 2KV (different code)
  • 4KV (common code)
  • According to: IEC61000-4-5
BNC male: 75 ohm
UTP cable: 100 ohm
Black ABS housing
MTBF: >10000H
Operating temperature: -10°C ~ +55°C
Storage temperature: -20°C ~ +70°C
Relative humidity: 0% ~ 95% (non-condensing)
