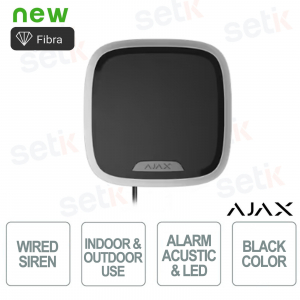

Superior StreetSiren Plus Black Fiber Wired Siren 107dB IP54 Fiber 2000m Anti-Sabotage 2h Backup - Ajax

Superior StreetSiren Plus Black Fiber Wired Siren 107dB IP54 Fiber 2000m Anti-Sabotage 2h Backup - Ajax

 
ANUNCIOS

117726.268.BL1 # 117726 | Ajax Superior StreetSiren Plus Fiber black is a wired siren for advanced security systems, designed for indoor and outdoor environments with Fiber technology up to 2000 m that ensures stable, fast and encrypted communication. It offers a high deterrent capacity thanks to the adjustable acoustic alarm up to 107 dB with LED signaling , with intelligent event management and customizable notifications. Equipped with advanced sabotage protection with tamper, device authentication and short circuit protection , it ensures maximum security against tampering, while the IP54 certification allows it to be used even in outdoor environments. It integrates advanced energy management with a backup battery up to 2 hours and simple installation via SmartBracket and configuration via the Ajax app. Ajax

Technical Data Sheet

referencia : 117726.268.BL1

brand : Ajax Systems

EAN: 4823114067969

Disponibilità: 1

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

117726.268.BL1 | WIRED SIREN WITH ADVANCED SABOTAGE PROTECTION AND EXTENSIVE LIST OF COMPLIANCE CERTIFICATES - FOR INDOOR AND OUTDOOR USE


Ajax

The Ajax Superior StreetSiren Plus Fibre wired siren, 117726.268.BL1 , black, is designed for professional security systems, offering stable communication via Fibre technology with a range of up to 2000 m and encrypted data transmission for maximum reliability. It ensures high deterrence thanks to the adjustable acoustic alarm up to 107 dB with LED signaling , with intelligent event management and customizable notifications. It integrates advanced sabotage protection with tamper, device authentication and short circuit protection , ensuring safety against tampering, while the IP54 certified structure makes it ideal for outdoor use. Advanced energy management includes wired power with a backup battery for up to 2 hours , while installation is simple via SmartBracket and configuration via the Ajax app.

Main specifications:

- Wired fiber technology up to 2000 m for stable and secure communication

- Adjustable audible alarm up to 107 dB with LED for high deterrence

- Advanced anti-sabotage protection with tamper and anti-short circuit

- Battery backup up to 2 hours for continuous operation

- 24V wired power supply from fiber line for system stability

- IP54 protection rating for indoor and outdoor use

- Easy installation with SmartBracket and configuration via the Ajax app

- Smart event management (alarms, chimes, system status) for complete control

Further details

✅ Fiber Communication:
Advanced wired fiber communication with a range of up to 2000 meters , designed to ensure a stable, fast and encrypted connection, with continuous polling of the device status and the possibility of integration on shared lines for complex professional systems.
✅ Main features :
Advanced key features with adjustable audible alarm up to 107 dB , LED and sound notifications, intelligent event management (alarms, system status, chime) and complete configuration via the Ajax app for centralized and professional control.
✅ Anti-sabotage protection :
 Advanced tamper protection with anti-tampering , short circuit protection, device authentication and rugged construction designed to withstand sabotage attempts even in critical environments.
✅ Power supply:
 Reliable power supply with integrated backup via 24V wired power supply from a fiber optic line , supported by a rechargeable battery that guarantees up to 2 hours of autonomy in the event of a blackout , ensuring operational continuity of the security system.

Technical data sheet

117726.268.BL1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
It features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration in the Ajax apps.
Line connection 4-core cable
Connection to any point of the Fiber line
The device can be installed behind a hub, detector, keypad, or siren.
Fiber line length up to 2,000 m/up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Encrypted communication All stored and transmitted data are protected by block encryption featuring a dynamic key
Key features
Alarm type acoustic and LED
Buzzer and LED frame
Type of warning device type Z
External.
Type of acoustic output tone
Alarm volume from 85 to 113 dB at a distance of 1 m/from 85 to 113 dB at a distance of 3.3 ft
Adjusted by PRO or user with admin rights in the Ajax app.
Alarm duration from 3 s to 3 min
Adjusted by PRO or user with admin rights in the Ajax app
Alarm sound 3 types
NFA2P-compliant, VdS-compliant, and Regular.
Siren sound frequency
  • 1,400−1,600 Hz in NFA2P-compliant mode
  • 1,400−1,800 Hz in VdS-compliant mode
  • 1,400−1,600 Hz in Regular mode
Chime The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Events indication Alerts
Delays when entering/leaving.
Security mode
Security mode changing
After-alarm indication
Recommendations The siren is designed for indoor and outdoor use. Recommended installation height is 2.5 m/6.6 ft and higher.
Anti-sabotage protection
Tampering alarm Alerts of attempts to detach the siren from the surface or remove the mounting panel.
Protection against spoofing Device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweller/Fiber settings.
Power supply
Fiber line power supply 8−30 V⎓, up to 1.2 W
The siren is powered by the control panel.
Siren's operating voltage range 8−27 V⎓
The siren is powered by the control panel.
Siren's nominal operating voltage 24 V⎓
Maximum siren's current consumption at nominal voltage 50 mA
Quiescent siren's current consumption at nominal voltage 2.9 mA
Peak siren's current consumption at nominal voltage 217 µA
When the siren sounds at the Very loud volume level.
Average siren's current consumption at nominal voltage 217 µA
When the siren sounds at the default volume level. Regardless of the arming mode
Battery LTO 2.4 V⎓ rechargeable battery
Pre-installed.
Battery capacity 3,000 mAh
The system notifies when the siren battery has 20% of its nominal capacity
Electric shock protection class Class III
Enclosure
Dimensions 210 × 210 × 71 mm
8.28″ × 8.28″ × 2.78″
Weight 1,059 g
37.36 oz
Operating temperature range from −25°C to +60°C
from −13°F to 140°F
Operating humidity up to 95% with no condensation
Protection class IP54, IK08
Color Black
Complete set Superior StreetSiren Plus Fiber
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
