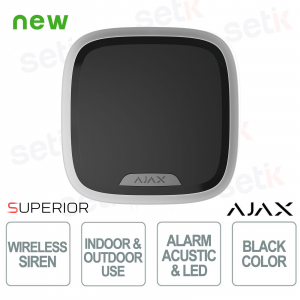

Superior StreetSiren Plus Jeweler Black Wireless Siren IP54 107 dB with Anti-Sabotage Protection and 10-Year Battery - Ajax

Superior StreetSiren Plus Jeweler Black Wireless Siren IP54 107 dB with Anti-Sabotage Protection and 10-Year Battery - Ajax

 
ANUNCIOS

117720.308.BL1 # 117720 | The black Ajax Superior StreetSiren Plus Jeweller is a professional wireless siren designed for indoor and outdoor use, featuring advanced anti-sabotage protection and high-level security certifications. Thanks to Jeweller technology with a range of up to 1,500 m , it ensures encrypted and reliable communication with the Ajax system. It offers adjustable volume from 85 to 107 dB and customizable notifications with audible and LED signals for comprehensive alarm management. Pre-installed batteries ensure up to 10 years of battery life and continuous operation without frequent maintenance. The robust design with IP54 protection and jamming detection guarantees resistance to external agents and tampering attempts. Quick installation via SmartBracket and app configuration make the device ideal for advanced security systems. Ajax

Technical Data Sheet

referencia : 117720.308.BL1

brand : Ajax Systems

EAN: 4823114067907

Disponibilità: 2

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

117720.308.BL1 | WIRELESS SIREN WITH ADVANCED SABOTAGE PROTECTION AND EXTENSIVE LIST OF COMPLIANCE CERTIFICATES - FOR INDOOR AND OUTDOOR USE


Ajax

The Superior StreetSiren Plus Jeweler, 117720.308.BL1, black, is a professional wireless siren for Ajax security systems, ideal for indoor and outdoor installations thanks to its IP54 protection and durable construction. It integrates Jeweler technology with a range of up to 1,500 m and encrypted communication for maximum reliability. It offers audible and visual signaling with adjustable volume up to 107 dB and advanced LED notifications. Security is ensured by anti-sabotage protection and jamming detection , while a battery life of up to 10 years reduces maintenance. Easy installation via SmartBracket and full management via the Ajax app make the device highly performing.

Main specifications:

- Adjustable volume 85–107 dB

- Jeweller technology up to 1,500 m

- Anti-sabotage and anti-jamming protection

- IP54 protection rating

- Battery life up to 10 years

- Advanced acoustic and LED signaling

Further details

✅ Jeweler Communication:
Advanced Jeweller radio technology ensures encrypted two-way communication , high stability and a range of up to 1,500 meters in open areas , ensuring continuous monitoring and secure data transmission to the Ajax hub.
✅ Main features :
Professional siren with acoustic and LED signaling , adjustable volume up to 107 dB , system status notifications and chime mode, designed for indoor and outdoor use with high visibility and active deterrence.
✅ Anti-sabotage protection :
 Complete system with anti-tamper , jamming detection , device authentication and rugged construction, designed to prevent unauthorized access and ensure maximum operational security.
✅ Power supply:
 Equipped with pre-installed CR123A batteries , it offers up to 10 years of battery life with low battery notifications, ensuring continuous operation and low maintenance over the long term.
✅ Optional power supply:
 It supports external 12V power as backup or integration, increasing system reliability and ensuring operation even in the most complex professional installations.

Technical data sheet

117720.308.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration in the Ajax apps.
Frequency bands 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP) up to 25 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range up to 1,500 m
up to 4,900 ft
Between the siren and the hub or range extender in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Key features
Alarm type acoustic and LED
Buzzer and LED frame
Type of warning device type X
External, self-powered, remote power source with EN 50131-6 compliant power supply.
Alarm volume from 85 to 107 dB at a distance of 1 m / 3.3 ft
Adjusted by PRO or user with admin rights in the Ajax app.
Alarm duration from 3 s to 3 min
Adjusted by PRO or user with admin rights in the Ajax app
Alarm sound 2 types
NFA2P-compliant and Regular.
LED indication 2 types
If the siren has an external power supply, the user can choose between the Corner backlight and Full-frame backlight features. If the siren is powered by a battery, only the Corner backlight feature is available.
Siren sound frequency
  • 1,400−1,600 Hz in NFA2P-compliant mode
  • 1,400−1,600 Hz in Regular mode
Device self-test Allows you to check whether the battery is sufficiently charged for normal operation.
Chime The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Events indication Alarms.
Delays when entering/leaving.
Security mode
Security mode changing
After-alarm indication
Jamming detection The siren detects jamming and alarms about it.
Recommendations The siren is designed for indoor and outdoor use. Recommended installation height is 2.5 m 8.2 ft or higher.
Sabotage protection
Tampering alarm Notifications on attempts to open the siren's enclosure, detach the siren from the surface, or remove the siren from the mounting panel.
Protection against spoofing Device authentication
Jamming detection The siren detects jamming and alarms about it.
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Main power supply
Batteries 8 × CR123A 3V⎓ Lithium battery
Pre-installed.
Type Type C.
Calculated battery life up to 10 years
Siren's operating voltage range 3.65−6.2 V⎓
Siren's nominal operating voltage 3 V⎓ in standby mode
6 V⎓ when the siren sounds
Quiescent siren's current consumption 75.6 µA
Peak siren's current consumption at nominal voltage 690 mА
When the siren sounds at the Very Loud volume level.
Average siren's current consumption at nominal voltage 126 mA
When the siren sounds at the default volume level.
Regardless of the arming mode.
Full capacity 12,800 mAh
Low battery voltage 4.65 V⎓
End-of-life battery voltage 3.65 V⎓
Device is switched off.
Manufacturer Huiderui
Electric shock protection class Class III
Optional power supply
Remote power supply's operating voltage 9.6−14.4 V⎓
Remote power supply's nominal voltage 12 V⎓
Quiescent siren's current consumption at nominal voltage 8 mA
Average siren's current consumption at nominal voltage 80 mA
When the siren sounds at the default volume level.
Regardless of the arming mode.
Peak siren's current consumption at nominal voltage 420 mA
When the siren sounds at the Very Loud volume level.
Enclosure
Dimensions 210 × 210 × 71 mm
8.28″ × 8.28″ × 2.78″
Weight 1,146 g
40.42 oz
Operating temperature range from −25°C to +60°C
from −13°F to 140°F
Operating humidity up to 95% with no condensation
Protection class IP54, IK08
Color Black
Complete set Superior StreetSiren Plus Jeweller
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
