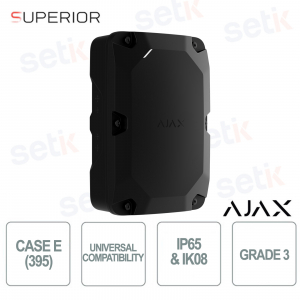

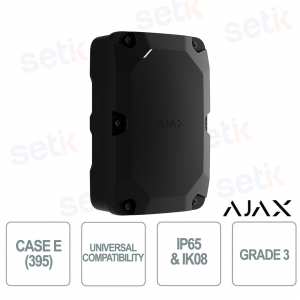

Ajax Case E 395 Black: IP65 Hub Case with Internal Grade 3 Battery

Ajax Case E 395 Black: IP65 Hub Case with Internal Grade 3 Battery

ANUNCIOS nuevo

152252.377.BL # 152252 - Ajax Case E (395) black is a waterproof case designed to house Ajax hubs with internal batteries, ideal for both outdoor and indoor installations thanks to its IP65 protection and IK08 impact resistance. It allows you to create autonomous security systems even in remote or power-deprived environments, supporting hubs and batteries of various capacities. Its robust construction ensures maximum protection against humidity, dust and impacts, making it perfect for Grade 3 installations in industrial and logistics environments. Installation is simple thanks to the integrated spirit level and lateral fixing points, with an anti-sabotage alarm in case of opening or detachment. A versatile, reusable solution designed to ensure long-term reliability.

Technical Data Sheet

referencia : 152252.377.BL

brand : Ajax Systems

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

152252.377.BL | WATERPROOF CASE FOR AJAX HUB WITH INTERNAL BATTERY

Ajax

The Ajax Case E (395), 152252.377.BL, black is a waterproof case designed to protect Ajax hubs with internal batteries, ensuring maximum reliability in both indoor and outdoor environments thanks to its IP65 certification and IK08 impact resistance. Ideal for installations in remote areas or without a power grid, it allows you to create autonomous systems with large-capacity batteries, maintaining Grade 3 compliance for use in industrial, logistical or particularly harsh environments. The robust construction protects against humidity, dust and impacts, while the anti-sabotage system detects opening or detachment. Installation is simplified by the integrated spirit level and side perforations for tidy wiring, offering a versatile, reusable solution suitable for different configurations.

Main specifications:

- IP65 waterproof and IK08 shockproof black case

- Compatible with Ajax hubs without shell and high-capacity NB/RB batteries

- Anti-tamper protection with opening and detachment detection

- Ideal for remote, industrial and Grade 3 installations

- Large internal space for wiring and components, with side fixings

- Easy installation thanks to the integrated level and complete kit

Further details

Compatibility :
The Case E (395) is compatible with several body-less Ajax hubs, including the Hub BP Jeweller, Hub Hybrid (4G), Hub Hybrid 2, and MegaHub. It also supports internal NB and RB batteries of various capacities, enabling standalone configurations and even suitable for remote or unpowered environments.
Degree of protection :
Designed for maximum resistance, it offers IP65 certification against water and dust and IK08 impact protection, making it perfect for installations in industrial, logistics and harsh environments, while maintaining compliance with EN 50131 Grade 3 standards.
Easy installation :
Installation is simplified thanks to the integrated bubble level, side perforations for mounting and cable management, and an anti-tamper system that signals opening or detachment. Furthermore, the design allows for multiple use even after disassembly or reconfiguration, ensuring maximum operational versatility.

Technical data sheet

152252.377.BL
Compliance EN 50131 (Grade 3)
PD 6662:2017
Installation

Operating temperature range
from 25 C to +55 °C
from –13 F to 131 F
Operating humidity
up to 95%

Casing Dimensions
395 × 300 × 108 mm
15.6 × 11.81 × 4.25
Weight
TBC
Protection class
IP65, IK08
Color Black
Complete set Houses E (395)
2 × Module Holder (type A)
2 × Cable for connecting tamper board
Spirit level
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
