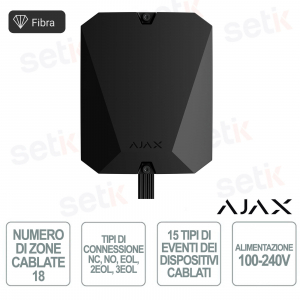

Ajax Superior MultiTransmitter Fiber Black – 18-Zone Integration Module with Fiber Technology and Tamper Protection

Ajax Superior MultiTransmitter Fiber Black – 18-Zone Integration Module with Fiber Technology and Tamper Protection

 
ANUNCIOS nuevo

143631.62.BL1 # 143631 - Ajax Superior MultiTransmitter Fibra black is a wired integration module designed to connect up to 18 third-party wired devices to an Ajax system, offering maximum compatibility with NC, NO, EOL, 2EOL and 3EOL connections. It integrates Fibra communication technology with a range of up to 2,000 m and data encryption, ensuring stable and secure transmission. It features anti-sabotage protection with double tamper , device authentication and short circuit protection. It supports over 10 event types , 18 independent zones and 100–240 V main power supply with 12 V backup battery. The compact black enclosure (197 × 240 × 100 mm) ensures professional installation with IP40 protection. Configurable via the Ajax app, it is the ideal solution for upgrading existing wired systems for smart security.

Technical Data Sheet

referencia : 143631.62.BL1

brand : Ajax Systems

EAN: 4823114079436

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

143631.62.BL1 | WIRED MODULE FOR INTEGRATING UP TO 18 THIRD-PARTY DEVICES

Ajax

Ajax Superior MultiTransmitter Fibra black is a wired integration module designed to connect up to 18 third-party wired devices to an Ajax system, transforming traditional installations into professional smart solutions. It integrates Fibra technology with a range of up to 2,000 m , encrypted communication and regular polling for constant monitoring of the system status. It supports NC, NO, EOL, 2EOL and 3EOL connections, over 10 event types and 18 independent zones. It is equipped with double anti-sabotage tamper , short circuit protection and anti-spoofing authentication. 100–240 V power supply with 12 V backup battery and IP40 protection degree, ideal for secure and scalable professional installations.

Main specifications:

- Up to 18 independent wired zones

- Fiber technology with range up to 2,000 m

- NC, NO, EOL, 2EOL, 3EOL compatibility

- Double anti-sabotage tamper

- 100–240 V power supply with 12 V backup

Further details

✅ Fiber Communication :
Encrypted wired fiber technology with a range of up to 2,000 meters , regular polling of device status and secure data transmission between the module and Ajax hub, ideal for highly reliable professional security systems.
✅ Connecting wired devices :
Integration of up to 18 third-party wired devices with support for NC, NO, EOL, 2EOL and 3EOL connections, management of over 10 event types and a dedicated KeyArm zone for advanced intrusion detection systems.
✅ Sabotage Resistance:
System with double anti-opening and anti-tear tamper , device authentication against spoofing, short circuit protection and integrity control via EOL resistors for maximum system security.
✅ Power supply:
Main power supply 100–240 V AC 50/60 Hz with 12 V backup battery up to 7 Ah to ensure operational continuity for up to 30 hours, plus dedicated 12 V output for connected detectors and devices.
✅ Compatibility:
Full integration with Ajax hubs compatible with Fiber technology , configuration via the Ajax PRO app , installation in the original case or on a board for Ajax Case, ideal for upgrading existing wired systems in a smart way.

Technical data sheet

143631.62.BL1
Compatibility
Compatible hub models Superior Hub Hybrid (2G)
Superior Hub Hybrid (4G)
Compatible range extenders Range extenders with Fibra devices support will soon be added to Ajax devices product line.
Communication with hub
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
It features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the app.
Bus connection 4-core cable
Bus line length up to 2,000 meters/up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Wired devices connection
Number of zones 18 wired zones
Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption.
Type of connection NC, NO, EOL, 2EOL, 3EOL
With EOL resistance from 1 kΩ to 30 kΩ with 100 Ω increment.
Cable length up to 400 m/up to 1,300 ft
When using a copper signal cable with a 0.22 mm² cross-sectional area of ​​the conductor.
Operation mode pulse, bistable
Event type 7 types of alarms for each wired zone:
  • tamper alarm
  • intrusion
  • fire alarm
  • medical help
  • panic button
  • gas concentration alarm
  • malfunction
Adjusted by PRO or user with admin rights in the Ajax app.
Anti-sabotage protection
Tampering alarm Two tampers to detect the lid opening and alert about detachment from the wall.
Protection against forgery device authentication
Communication loss detection within 3 seconds
Between hub and Superior MultiTransmitter Fibra.
Instant detection of wired connection loss, short circuits and malfunctions when using 2EOL/3EOL connection
Depends on the connection type.
Power supply
Superior MultiTransmitter Fiber power supply 110–240 V~
Superior MultiTransmitter Fiber backup power supply 12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours
Power supply of connected wired devices 10.5–15 V⎓, up to 1 A (total maximum current consumption)
Two power supply lines from Superior MultiTransmitter Fibra.
Power supply of connected fire detectors 10.5–15 V⎓, up to 0.4 A
One power supply line from Superior MultiTransmitter Fibra.
Enclosure
Dimensions 192 × 238 × 100 mm/7.56″ × 9.37″ × 3.94″
Weight TBC
Operating temperature range from −10°C to +40°C/from 14°F to 104°F
Operating humidity up to 75%
Protection class IP40
Colors Black
Complete set Superior Fiber MultiTransmitter
Power cable
12 V battery connection cable
Casing
Installation kit
Quick Start Guide
