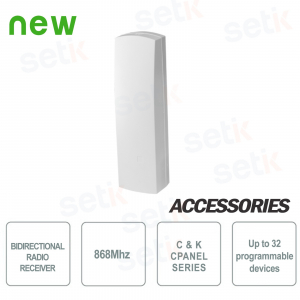

EXPR 800 – 868 MHz RADIO RECEIVER

AMC

The EXPR 800 from AMC Elettronica is a two-way radio receiver designed to expand the functionality of the AMC X and K series alarm control panels, allowing the integration of wireless devices into the security system.

Main features:

  • Operating frequency: 868 MHz.
  • Capacity: Supports up to 32 radio devices (sensors, contacts, remote controls, etc.).
  • Communication: Two-way, ensuring transmission confirmation and greater reliability.
  • Protection: anti-opening and anti-tear tamper for greater safety.
  • Dimensions: 130 x 37 x 27 mm.
  • Power supply: 13.8 Vdc with average consumption of 33 mA and maximum of 63 mA.

Further details

✅ Compatibility: AMC X and K series control units.
✅ Operating frequency: 868 MHz.
✅ Capacity: Supports up to 32 radio devices (sensors, contacts, remote controls, etc.).
✅ Security: Transmission with 128-bit AES encryption for secure communication.
✅ Communication: Two-way, ensuring transmission confirmation and greater reliability.
✅ Installation: direct connection to the control unit's RS485 serial bus.
✅ Device learning: via self-learning or manual entry of transmitter ID.
✅ Protection: anti-opening and anti-tear tamper for greater safety.
✅ Dimensions: 130 x 37 x 27 mm.
✅ Power supply: 13.8 Vdc with average consumption of 33 mA and maximum of 63 mA.
✅ Operating temperature: 0°C to +40°C.

Technical data sheet

Model EXPR 800
Power flight 13.8 Vdc
consumption 33mA
Maximum consumption 63mA
Anti-removal/Anti-opening YES
Working Frequency YES
Environmental Conditions From +0°C to +40°C
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
