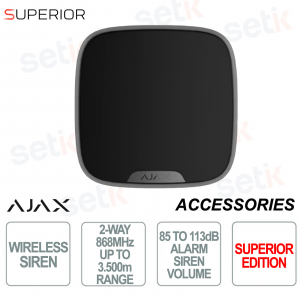

Superior StreetSiren DoubleDeck Jeweler Black Wireless Siren IP54 113 dB Jeweler and Wings - Ajax

Superior StreetSiren DoubleDeck Jeweler Black Wireless Siren IP54 113 dB Jeweler and Wings - Ajax

 
ANUNCIOS

133227.61.BL1 #133227 (formerly 70227.61.BL1) | Ajax Superior StreetSiren DoubleDeck Jeweller black is a professional wireless siren designed for outdoor and indoor environments, ideal for advanced Ajax security systems. Thanks to Superior Jeweller and Wings technology, it guarantees encrypted communications up to 3,500 meters in open fields, offering maximum reliability and anti-sabotage protection. The powerful acoustic signaling up to 113 dB and the integrated LED indicators allow for quick identification of alarms and system status. The design with a customizable Brandplate front panel also makes the siren perfect for professional and commercial applications. Equipped with IP54 protection, a battery with up to 5 years of life and support for external 12V power supply, it ensures high performance even in the most difficult conditions. Ajax

Technical Data Sheet

referencia : 133227.61.BL1

brand : Ajax Systems

EAN: 4823114075575

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

133227.61.BL1 | WIRELESS SIREN WITH A MOUNT FOR A CUSTOMIZABLE FRONT PANEL


Ajax

Ajax Superior StreetSiren DoubleDeck Jeweller , 133227.61.BL1 , black is a professional wireless siren designed to ensure maximum security in indoor and outdoor environments thanks to IP54 protection and advanced Superior Jeweller and Wings technology. Equipped with audible signaling up to 113 dB , high-visibility LEDs and radio communication up to 3,500 meters , it offers high performance and advanced anti-sabotage protection. The modern design with customizable Brandplate front panel makes it ideal for residential and commercial applications. The battery with up to 5 years of autonomy and compatibility with external 12V power supply ensure continuous operation and constant reliability.

Main specifications:

- Superior Jeweler and Wings technology for encrypted, stable wireless communications protected from interference and counterfeiting

- Sound power up to 113 dB with integrated LED indicators for immediate alarm notification

- IP54 protection against dust and water, ideal for outdoor and indoor installations

- Up to 5 years of battery life thanks to pre-installed high-performance batteries

- IP54 protection rating for indoor and outdoor use

- Customizable Brandplate front panel to integrate company logo and information

- Advanced anti-sabotage protection with tamper, accelerometer and connection loss detection

- Radio communication up to 3,500 meters in open field for large professional installations

Further details

✅ Jeweler Communication:
Superior Jeweler technology ensures encrypted, two-way wireless communication between the siren and the Ajax hub, ensuring a range of up to 3,500 meters in open terrain . Thanks to advanced frequency hopping and device authentication, it offers high protection against interference, sabotage, and counterfeiting attempts.
✅ Wings Communication:
The Wings protocol optimizes the rapid and secure transmission of system data and OTA updates, maintaining a stable connection at all times. This technology improves device monitoring and ensures immediate notifications about siren status and security events.
✅ Main features :
The Ajax Superior StreetSiren DoubleDeck Jeweler integrates powerful audible signaling up to 113 dB , highly visible LED indicators, a customizable front panel Brandplate , and IP54 protection against water and dust. Ideal for professional installations, it supports both indoor and outdoor use with full management via the Ajax app.
✅ Anti-sabotage protection :
 The system includes a tamper-proof switch , a built-in accelerometer, and connection loss detection to ensure maximum security. The siren is designed to withstand opening, removal, or radio interference thanks to its advanced interference detection system and rugged construction.
✅ Power supply:
 Powered by 4 pre-installed CR123A batteries , the siren offers up to 5 years of continuous operation. It also supports connection to an external 12V power supply , ensuring operational continuity even in high-intensity professional installations.

Technical data sheet

133227.61.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration in the Ajax apps.
Frequency bands 868.0–868.6 MHz
Maximum effective radiated power (ERP) up to 25 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range up to 3,500 m
Between the siren and a hub (or a range extender) in an open space. The maximum range depends on the hub model.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology Proprietary wireless communication technology for uploading firmware updates.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Data packet reload in case of transmission errors.
  • Data packets delivery check.
Frequency bands 868.0–868.6 MHz
Radio communication range up to 2,000 m
Between the siren and a hub (or a range extender) in an open space. The maximum range depends on the hub model.
Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping To prevent radio interference and jamming
Key features
Alarm type acoustic and LED
Buzzer and LED frame
Type of warning device type X
External, self-powered, remote power source with EN 50131-6 compliant power supply.
Alarm volume from 85 to 113 dB at a distance of 1 m / 3.3 ft
Adjusted by PRO or user with admin rights in the Ajax app.
Alarm duration from 3 s to 3 min
Adjusted by PRO or user with admin rights in the Ajax app
Siren sound frequency 1.60−4.5 kHz
Chime The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Events indication Alerts
Delays when entering/leaving.
Security mode
Security mode changing
After-alarm indication
Jamming detection The siren detects jamming and alarms about it.
Customized branded faceplate
Brandplate Security service providers can print their logo and contact information on the siren's front panel.
Brandplate is sold separately from street sirens. To place an order, reach out to your regional Ajax partner. You can also compose a faceplate design in the Brandplate constructor.
Sabotage protection
Tampering alarm Notifications on attempts to detach the siren from the surface or remove it from the mounting panel.
Protection against spoofing Device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Main power supply
Batteries 4 × CR123A 3V⎓ Lithium battery
Pre-installed.
Type Type C.
Calculated battery life up to 5 years
Siren's operating voltage range 3.65−6.2 V⎓
Siren's nominal operating voltage 6 V⎓
Quiescent siren's current consumption at nominal voltage 60 µA
Peak siren's current consumption at nominal voltage 1.1 A
When the siren sounds at the Very Loud volume level.
Average siren's current consumption at nominal voltage 454 mA
When the siren sounds at the default volume level.
Regardless of the arming mode.
Full capacity 6,400 mAh
Low battery voltage 4.25 V⎓
End-of-life battery voltage 3.65 V⎓
Device is switched off.
End-of-life battery capacity 460 mAh
Manufacturer Panasonic
Optional power supply
Remote power supply's operating voltage 6−20 V⎓
Remote power supply's nominal voltage 12 V⎓
Quiescent siren's current consumption at nominal voltage 0.016 A
Average siren's current consumption at nominal voltage 0.29 A
When the siren sounds at the default volume level.
Regardless of the arming mode.
Peak siren's current consumption at nominal voltage 0.36 A
When the siren sounds at the Very Loud volume level.
Enclosure
Dimensions 200 × 200 × 55 mm
7.87″ × 7.87″ × 2.17″
Weight 516 g
18.20 oz
Operating temperature range from −25°C to +60°C
from −13°F to 140°F
Operating humidity up to 95%
Protection class IP54
Color Black
Complete set Superior StreetSiren DoubleDeck Jeweller
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
