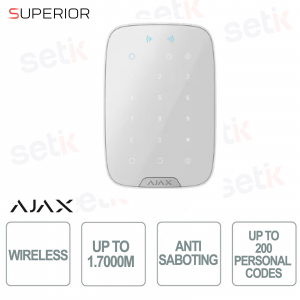

133210.83.WH1 | WIRELESS TOUCH KEYBOARD SUPPORTING CONTACTLESS ENCRYPTED CARDS AND KEYFOBS

Ajax

The Superior KeyPad Plus Jeweller, 133210.83.WH1 (formerly 70224.83.WH1), white, is an advanced Ajax wireless keypad designed for secure and intuitive access control, thanks to contactless authentication with DESFire® Passes and Tags and custom codes. It integrates Jeweller technology with a range of up to 1,700 m and encrypted communication for maximum reliability. The touch design with auto-activation and backlighting ensures quick and precise use. It features sabotage, tamper, and duress code protection for advanced security. Up to 3 years of battery life and management via the Ajax app complete this device, ideal for residential and professional environments.

Main specifications:

- DESFire contactless authentication, protected passes and tags

- Jeweler communication up to 1,700 m encrypted

- Anti-sabotage protection with tamper and anti-spoofing

- Multiple access codes and duress code

- Battery life up to 3 years

- Touch keyboard with backlight and self-activation

Further details

✅ Compatibility
Designed to integrate with Ajax systems, the device is compatible with Ajax hubs and range extenders , ensuring centralized management and complete configuration via app, ideal for professional and scalable installations.
✅ Jeweler Communication:
Encrypted Jeweller radio technology ensures secure and stable transmission up to 1,700 m in open field , with continuous monitoring and data protection against interference and unauthorized access.
✅ Main features :
Advanced touch keypad with DESFire® contactless authentication via Pass and Tag , management via multiple user codes , quick access function and complete control of the security system.
✅ Anti-sabotage protection:
Integrated security system with anti-tamper , spoofing protection , unauthorized access detection and duress code , designed to ensure maximum reliability and protection.
✅ Power supply:
Powered by 4 pre-installed AA batteries , it offers up to 3 years of battery life with low battery notifications, ensuring operational continuity and reduced maintenance over time.

Technical data sheet

133210.83.WH1
Compatibility
Control panels Hub Plus
Hub 2 (2G)
Hub 2 (4G)
Hub 2 Plus
Hybrid Hub (2G)
Hybrid Hub (4G)
Range extenders ReX
ReX 2
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 868.0 - 868.6 MHz
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Key features
Sensor type capacitive
Malfunctions and security mode indication When KeyPad is active, it notifies with LED indication of the security mode, problems with detectors, or communication loss with the hub
Functional button Operates in one of the modes
alarm
The system sends an alarm to the central monitoring station and users. It also activates the sirens connected to the system
mute fire alarm
Mutes interconnected fire detectors alarms
off
The button is disabled
Control Pass cards
Tag key fobs
The functionality of the cards/key fobs is the same, but they differ in design.
Access codes up to 200 personal codes
One code for each user. The number of personal access codes depends on the hub model
1 keypad code
One code per KeyPad
Duress codes up to 200 personal codes
One code for each user. The number of personal access codes depends on the hub model
1 keypad code
One code per KeyPad
Codes for unregistered people up to 99 personal codes
For people who are not registered in the system. The number of such codes depends on the hub model
Group security management Enter the general keypad code and the group ID to manage group security
ACE Type type B
Sabotage protection
Protection against code guessing Superior KeyPad Plus Jeweler locks for 3-180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute.
The lock time is adjusted by PRO or user with admin rights in the Ajax app.
Tamper alarm Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power Supply
Battery 4 × AA
Pre-installed.
Type Type C
Calculated battery life up to 3 years
Detector's operating voltage range 2.25–3.3 V⎓
Device's nominal operating voltage 3 V⎓
Quiescent device's current consumption at nominal voltage 0.13 mA
Maximum device's current consumption at nominal voltage 10.5 mA
Full capacity 6,000 mAh
Capacity of each battery is 3,000 mAh.
Low battery voltage 2.5 V⎓
Low battery recovery voltage 2.7 V⎓
End-of-life battery voltage 2.25 V⎓
Device is switched off.
End-of-life battery capacity 500 mAh
Manufacturer Energizer
Enclosure
Color White
Dimension 165 × 113 × 20 mm
6.50″ × 4.45″ × 0.79″
Weight 267 g
9.42 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Complete set Superior KeyPad Plus Jeweler
SmartBracket mounting panel
4 × АА battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
