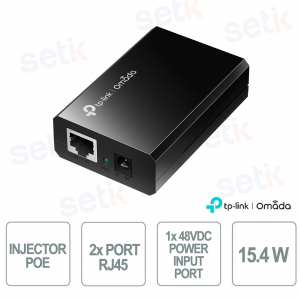

POE150S | PoE INJECTOR - TPLINK OMADA


Made Omada

The TP-Link POE150S PoE Injector is designed to power and connect network devices such as access points, IP cameras, and VoIP phones using a single Ethernet cable up to 100 meters. Compliant with the IEEE802.3af standard, it offers up to 15.4W of power, reducing cabling costs and ensuring maximum safety thanks to short-circuit protection. Its compact design with external power supply and Plug & Play installation make it a practical and reliable solution for home and professional networks.

Main specifications:

- IEEE802.3af compliant

- Power up to 15.4W over a single Ethernet cable

- Gigabit RJ45 LAN in and PoE out ports

- Auto-Sensing algorithm with automatic power adjustment

- Advanced safety with short circuit protection

- Simple Plug & Play installation

Further details

Hardware Features :
Compact design (80.8 × 54 × 24 mm), 48V DC external power supply included and LED indicators that show the operating status.
Interface :
1 RJ45 LAN in port at 10/100/1000 Mbps and 1 RJ45 PoE out port (power+data) , plus DC IN power socket.
Media :
Supports UTP Cat.3/4/5 cables for 10BASE-T, Cat.5/5e for 100BASE-TX and Cat.5/5e/6 for 1000BASE-T, with a maximum distance of 100 meters.
Energy consumption:
Input: External 48V DC power supply. Output up to 15.4W , with automatic adjustment based on the needs of the connected device.
Plug & Play:
Instant installation with no configurations: simply connect the cables for power and data transmission, reducing wiring time and costs.

Technical data sheet

Model POE150S
HARDWARE FEATURES
Interface 2× 10/100/1000Mbps RJ45 Port
Auto Negotiation/Auto MDI/MDIX
1× 48VDC Power Input Port
Average 10BASE-T: UTP category 3, 4, 5 cables EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cables (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)
Diet 15.4W (Max. 48VDC)
LED PWR
Dimensions (L x W x H) 3.2*2.1*0.9 in.(80.8*54*24 mm)
SOFTWARE FEATURES
Basic features Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Self-determine the necessary power requirements
OTHER
Certification CE, FCC, RoHS
Package Contents

POE150S
Installation Guide
Power Adapter

Environment Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
