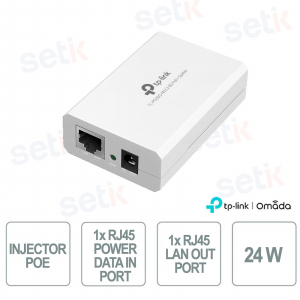

TP-Link TL-PD30G-M2 PoE+ Splitter 2.5G 24W – Safe and Fast Power Supply

TP-Link TL-PD30G-M2 PoE+ Splitter 2.5G 24W – Safe and Fast Power Supply

nuevo

The TP-Link TL-PD30G-M2 PoE+ Splitter is the ideal solution for providing power and data over a single Ethernet cable up to 100 meters, eliminating the need for additional cabling. Compatible with the IEEE802.3af/at standard, it supports adjustable 5V, 9V, or 12V outputs with power up to 24W, adapting to different network devices. Thanks to the Auto-Sensing algorithm and integrated protections against overvoltage, undervoltage, and overcurrent, it guarantees safety and reliability. The compact design with Plug & Play installation makes the TL-PD30G-M2 perfect for access points, IP cameras, and VoIP phones in both professional and home environments.

Technical Data Sheet

referencia : TL-PD30G-M2

brand : OMADA

EAN: 8885021370118

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

TL-PD30G-M2 | 2.5G POE+ SPLITTER - TPLINK OMADA


Made Omada

The TP-Link TL-PD30G-M2 PoE+ Splitter is designed to separate power and data on a single Ethernet cable up to 100 meters, simplifying the installation of devices such as access points, IP cameras and VoIP phones. Compatible with IEEE802.3af/at standards, it offers adjustable 5V, 9V or 12V outputs with power up to 24W, adapting to multiple needs. Thanks to the Auto-Sensing algorithm and integrated protections against overvoltage, undervoltage and overcurrent, it ensures maximum safety and stability. The compact design, FCC, CE and RoHS certified, with Plug & Play installation, makes it ideal for professional and home environments.

Main specifications:

- Adjustable output 5V/9V/12V up to 24W

- Support IEEE802.3af/at standard

- Data transmission and power up to 100m

- Short circuit, overvoltage and overcurrent protection

- Simple Plug & Play installation

Further details

Hardware Features :
Compact size (80.8 × 54 × 24 mm), rugged design, status LEDs, and FCC, CE, and RoHS certifications. Includes power cord and quick start guide.
Interface :
1 RJ45 Power+Data In port, 1 RJ45 LAN Out port up to 2.5Gbps and 1 adjustable DC output (5V, 9V or 12V).
Media :
Compatible with Cat.3/4/5 (10BASE-T), Cat.5/5e (100BASE-TX), Cat.5e/6 (1000BASE-T and 2.5GBASE-T) UTP cables, up to 100 meters.
Energy consumption:
Adjustable output: 5V/2A (10W), 9V/2A (18W) or 12V/2A (24W), with advanced protection against overvoltage, undervoltage and overcurrent.
Plug & Play:
No configuration required: installation is immediate and safe, with auto-sensing for intelligent power management.
Standard Compatibility:
Compliant with IEEE802.3i, 802.3u, 802.3ab, 802.3bz, 802.3af and 802.3at standards, it ensures broad interoperability with compatible PSEs.

Technical data sheet

Model TL-PD30G-M2
HARDWARE FEATURES
Standards IEEE 802.3i, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3af, IEEE 802.3at
Interface 1x 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port
1x 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port
1x 12V/9V/5V DC OUT Power Output Port
Average 10BASE-T: UTP category 3, 4, 5 cables EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cables (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)
Basic Function Compatible with IEEE 802.3af/at compliant PSEs
Delivers power up to 100 meters
Optional 12VDC, 9VDC or 5VDC power supply
Diet Adjustable output 5VDC/2A,9VDC/2A or 12VDC/2A
LED ON: Connected to PSE correctly
Off: No PSE is connected
Dimensions (L x W x H) 3.2*2.1*0.9 in.(80.8*54*24 mm)
OTHER
Certification CE, FCC, RoHS
Package Contents

TL-PD30G-M2
Installation Guide
Power Card

Environment Operating Temperature: -5°C~45°C (23°F~113°F)
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
