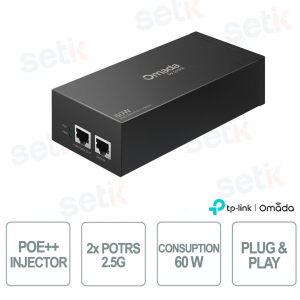

POE370S 10G PoE++ Injector with 2 RJ45 Ports, 60W Power for Access Points and IP Cameras - Omada

POE370S 10G PoE++ Injector with 2 RJ45 Ports, 60W Power for Access Points and IP Cameras - Omada

 
nuevo

The POE370S is a 10G PoE++ injector designed to provide power and high-speed data connectivity over a single Ethernet cable. It integrates 2 multi-gigabit RJ45 ports up to 10 Gbps , ensuring fast and reliable transmissions for access points, IP cameras and professional network devices. Compatible with IEEE 802.3af/at/bt standards , it delivers up to 60W of PoE power , automatically adapting to the power needs of the connected device. Configuration-free plug-and-play technology simplifies installation, while the compact design with integrated power supply and metal frame ensures reliability and flexibility for desktop or wall mounting. Omada

Technical Data Sheet

referencia : POE370S

brand : OMADA

EAN: 1210002604925

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

POE370S | OMADA POE++ INJECTOR


Made Omada

The TP-Link Omada POE370S is a 10G multi-gigabit PoE++ injector designed to power and connect professional network devices via a single Ethernet cable. It integrates 2 multi-gigabit RJ45 ports up to 10 Gbps , ensuring fast and stable data transmissions for Wi-Fi access points, PTZ IP cameras and other PoE devices. Compatible with IEEE 802.3af/at/bt standards , it provides up to 60W of PoE power , automatically adapting to the power needs of the connected device. Configuration-free plug-and-play technology makes installation easy, while the compact design with built-in power and metal frame ensures reliability and flexibility for desktop or wall mounting.

Main specifications:

- 2 RJ45 Multi-Gigabit ports up to 10 Gbps for high-speed data transmission

- IEEE 802.3af/at/bt PoE++ compatibility with power up to 60W to power access points and IP cameras

- Simultaneous transmission of data and power via a single Ethernet cable to reduce costs and cabling

- Plug-and-play with no configuration for quick and easy installation

- Integrated power supply with automatic detection of the power required by the device

- Compact design with metal frame and desktop or wall mounting for professional environments.

Further details

✅ Hardware Features :
The injector integrates hardware components designed for high-performance networks , with a durable metal construction , integrated power supply , and PWR and PoE LED indicators that allow you to quickly monitor the device's operating status.
✅ Interface :
The device features 2 Multi-Gigabit RJ45 ports compatible with 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps , ensuring extremely fast and stable data transmissions for Wi-Fi access points, IP cameras and professional network devices.
✅ Media :
It supports various network cabling types , including UTP Cat5, Cat5e, Cat6 and Cat6a , allowing connections up to 100 meters for Gigabit networks and up to 10Gbps on higher category cables , ensuring great flexibility in installations.
✅ Energy consumption:
The injector supports PoE++ power with a maximum power of 60W , providing power directly via Ethernet cable and reducing the need for additional electrical outlets , ideal for access points, PTZ cameras and high-power network devices.
✅ Plug & Play:
Thanks to Plug & Play technology , the device allows immediate installation without software configurations , allowing you to quickly extend the network even in areas where power outlets are not available.
✅ Standard Compatibility:
The injector complies with IEEE 802.3af, 802.3at, and 802.3bt standards , as well as Ethernet protocols such as 802.3i, 802.3u, 802.3ab, and 802.3an , ensuring compatibility with a wide range of professional network devices and infrastructures .

Technical data sheet

Model POE370S
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3an
Interface 2 × 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports
Average 10Base-T/100Base-TX: UTP category 5 cable or above (maximum 100 m)
1000Base-T/2.5GBase-T: UTP category 5e cable or above (maximum 100 m)
5GBase-T: UTP category 5e cable or above (maximum 100 m)
10GBase-T: UTP category 6 cable or above (maximum 50 m)
STP category 6a cable or above (maximum 90 m)
Energy consumption 60 W
LED Power Supply, PoE
Dimensions (L x W x H) 154.7 × 70 × 42 mm (6.09 × 2.76 × 1.65 in)
OTHER
Certification CE, FCC, RoHS
Package Contents POE370S
Power Cord
Installation Guide
Environment Operating Temperature: -5°C to 45°C (23°F to 113°F)
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
