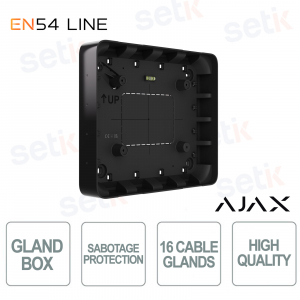

125718.314.BL #125718 | The black Ajax GlandBox is a wiring accessory designed for neat side cable entry into the EN54 Fire Hub Jeweller fire alarm control panel. Ideal for installations where wall entry is not possible, it ensures secure mounting thanks to cable glands and a compact design for professional installation. It features 16 cable gland locations (up to 20 mm in diameter), recesses for precise drilling, and a simplified cable routing system. Installation is facilitated by a built-in spirit level, position indicators, and provision for an anti-sabotage switch. Resistant from -10°C to +40°C, with IP20 protection and UL 94 V-0 certification, it comes complete with a mounting kit.
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
125718.314.BL | WIRING ACCESSORY FOR THE CONTROL UNIT (CIE)

The Ajax GlandBox, 125718.314.BL , in black, is a wiring accessory for the EN54 Fire Hub Jeweler fire alarm control panel, designed to allow for tidy side cable entry when wall routing is not possible. It ensures a clean and professional installation thanks to cable glands up to 20 mm in diameter, simplified routing, and provision for an anti-tamper switch. Made of flame-retardant materials (UL 94 V-0) and IP20 certified, it is ideal for safe installations in residential and commercial settings.
Main specifications:
- 16 cable gland locations, four per side
- Compatibility with cable glands up to 20 mm in diameter
- Integrated spirit level and positioning indicators
- Anti-sabotage tamper provision
- Compact size: 263 × 223 × 40 mm, weight 335 g
- Resistance from -10 °C to +40 °C, humidity up to 75%
Further details
Technical data sheet
125718.314.BL |
|
Key features | |
Places to install cable glands | 16 For routing cables that are not hidden inside the wall. There are four places on each side. |
Cable gland diameter | up to 20 mm Cable glands are not included in the complete set. |
Recesses for drilling | The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic with a diameter of up to 20 mm. |
Sabotage protection | tamper button The perforated part of GlandBox is used for the EN54 Fire Hub Jeweler tamper button to trigger when the CIE is installed in GlandBox. An Ajax system sends fault notifications if an attempt is made to detach GlandBox from the surface or remove the CIE from the mounting panel. |
Cable fasteners | To hold the cables together with ties. |
Aids for easy installation |
|
Recommendations | The accessory is designed for indoor use only. GlandBox is compatible only with EN54 Fire Hub Jeweller. |
Product | |
Dimensions | 263 × 223 × 40 mm 10.35" × 8.78" × 1.58" |
Weight | 335 g 11.82 oz |
Operating temperature range | from –10 °C to +40 °C from 14 °F to 104 °F |
Operating humidity | up to 75% non-condensing |
Flammability rating | UL 94 V-0 |
Color | Black |
Complete set | GlandBox Installation kit Quick start guide |
Warranty | 24 months |
