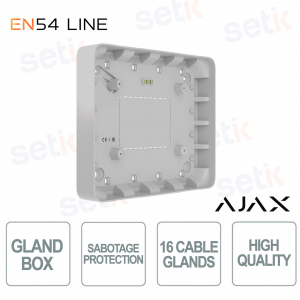

Ajax GlandBox White EN54 – Tidy and Safe Wiring Accessory

Ajax GlandBox White EN54 – Tidy and Safe Wiring Accessory

nuevo

125717.314.WH #125717 | The white Ajax GlandBox is a wiring accessory designed for neat side cable entry into the EN54 Fire Hub Jeweller fire alarm control panel. Ideal for installations where wall entry is not possible, it ensures secure mounting thanks to cable glands and a compact design for professional installation. It features 16 cable gland locations (up to 20 mm in diameter), recesses for precise drilling, and a simplified cable routing system. Installation is facilitated by a built-in spirit level, position indicators, and provision for an anti-tamper switch. Resistant from -10°C to +40°C, with IP20 protection and UL 94 V-0 certification, it comes complete with a mounting kit.

Technical Data Sheet

referencia : 125717.314.WH

brand : Ajax Systems

EAN: 4823114070945

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

125717.314.WH | WIRING ACCESSORY FOR THE CONTROL UNIT (CIE)


Ajax

The Ajax GlandBox, 125717.314.WH , in white, is a wiring accessory for the EN54 Fire Hub Jeweler fire alarm control panel, designed to allow tidy side cable entry when wall routing is not possible. It ensures a clean and professional installation thanks to cable glands up to 20 mm in diameter, simplified routing, and provision for an anti-tamper switch. Made of flame-retardant materials (UL 94 V-0) and IP20 certified, it is ideal for safe installations in residential and commercial settings.

Main specifications:

- 16 cable gland locations, four per side

- Compatibility with cable glands up to 20 mm in diameter

- Integrated spirit level and positioning indicators

- Anti-sabotage tamper provision

- Compact size: 263 × 223 × 40 mm, weight 335 g

- Resistance from -10 °C to +40 °C, humidity up to 75%

Further details

Cable gland installation locations :
The white Ajax GlandBox offers 16 cable gland slots , with four positions on each side, for neat cable entry into the EN54 Fire Hub Jeweller fire alarm control panel. It is compatible with cable glands up to 20 mm in diameter and features pre-drilled recesses for precise drilling, making it easy to install even in complex spaces such as historic buildings or temporary commercial premises.
Anti-sabotage protection :
The back of the GlandBox features a perforated area for the control panel tamper switch (CIE), which detects unauthorized removal of the device from the surface. This feature provides an additional level of security to the system, preventing unauthorized intervention and ensuring system integrity.
EN54 Standard:
Made with UL 94 V-0 certified fireproof materials and with IP20 protection, the GlandBox is designed to integrate into systems compliant with the EN 54 regulation, ensuring compliant installation in contexts where European fire safety certification is required.

Technical data sheet

125717.314.WH

Key features
Places to install cable glands 16
For routing cables that are not hidden inside the wall. There are four places on each side.
Cable gland diameter up to 20 mm
Cable glands are not included in the complete set.
Recesses for drilling The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic with a diameter of up to 20 mm.
Sabotage protection tamper button
The perforated part of GlandBox is used for the EN54 Fire Hub Jeweler tamper button to trigger when the CIE is installed in GlandBox. An Ajax system sends fault notifications if an attempt is made to detach GlandBox from the surface or remove the CIE from the mounting panel.
Cable fasteners To hold the cables together with ties.
Aids for easy installation
  • Bubble level
  • UP key
  • CIE center marking
The bubble level allows for checking the casing inclination angle. The intersection of two lines marks the center of the CIE, and the UP key marks its top.
Recommendations The accessory is designed for indoor use only.
GlandBox is compatible only with EN54 Fire Hub Jeweller.
Product
Dimensions 263 × 223 × 40 mm
10.35" × 8.78" × 1.58"
Weight 335 g
11.82 oz
Operating temperature range from –10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75% non-condensing
Flammability rating UL 94 V-0
Color White
Complete set GlandBox
Installation kit
Quick start guide
Warranty 24 months
